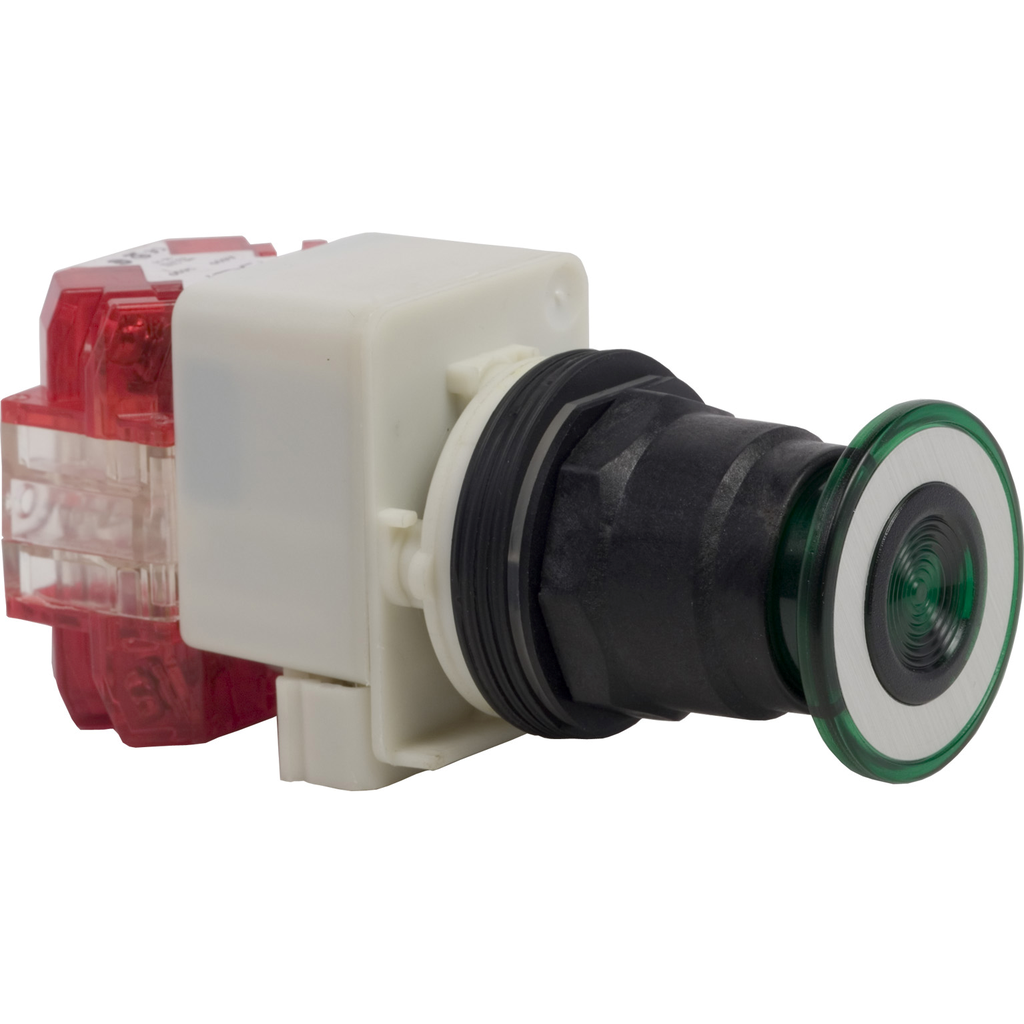

Product image for Square D 9001SKR8P1GH25 30 mm 600 VAC 3-Position 2NC Green Body Plastic Bezel Push-Pull Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Email

Square D 9001SKR8P1GH25 30 mm 600 VAC 3-Position 2NC Green Body Plastic Bezel Push-Pull Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # 9001SKR8P1GH25 | Cooper Electric Part # 632838
$267.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This mushroom shaped push-button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

Technical Information

Action
Standard
Actuator
ILLUMINATED
Amperage
10 Amp
Bezel Material
Plastic
Contact Configuration
1 NC + 1 NC
Contact Rating
AC15 - DC13
Enclosure
NEMA 1/2/3/3R/4/4X/6/12/13
Light Source
Incandescent Bulb
Size
30 mm
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
TC Connection
SCREW CLAMP
Type
Push-button
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901042976
Color
Green
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901042976
Product UPC
78590104297

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Features
  • Improved security thanks to finger-safe contact blocks and light modules
  • Robustness to withstand the harshest environments
  • Easy, secure mounting system
  • Automatic self-grounding operators without additional wiring
  • A large plastic set of accessories to customize your product
  • Single screw Contact Block Fastening
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
