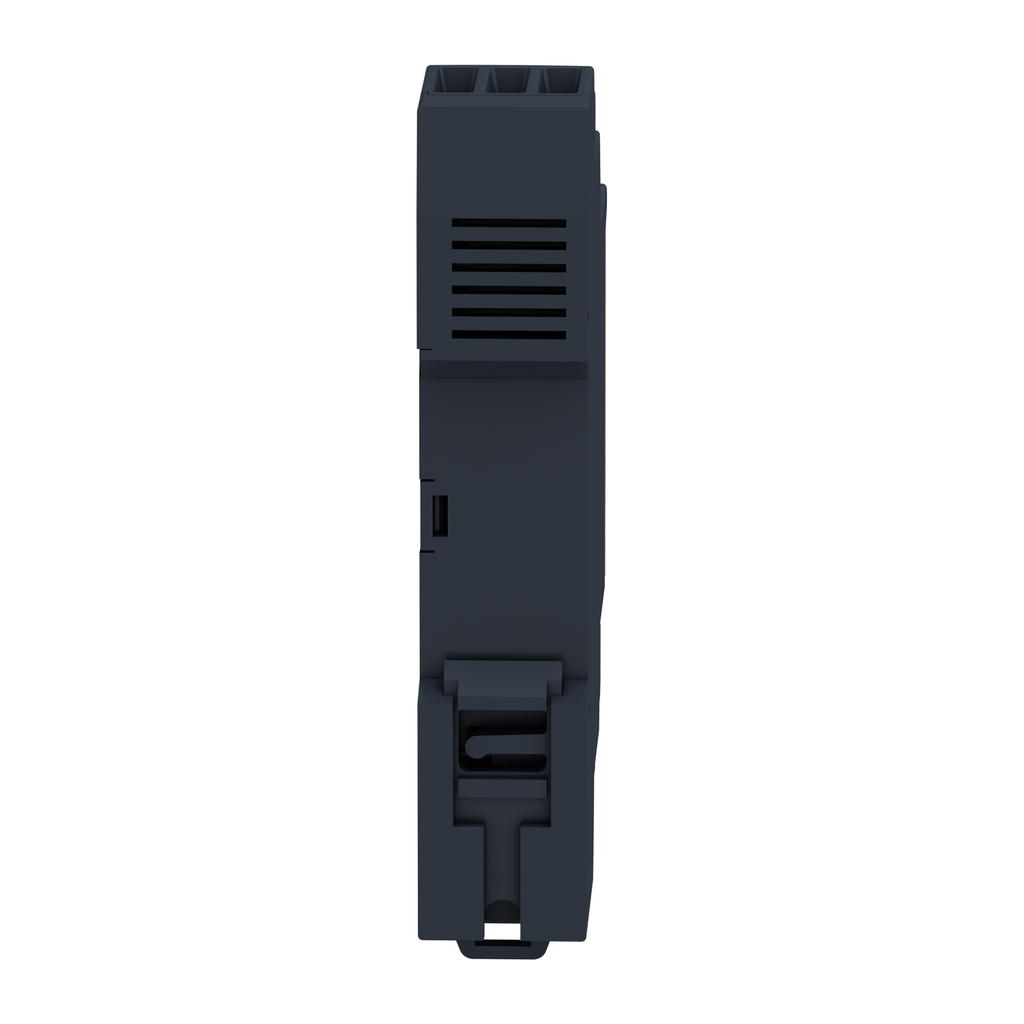

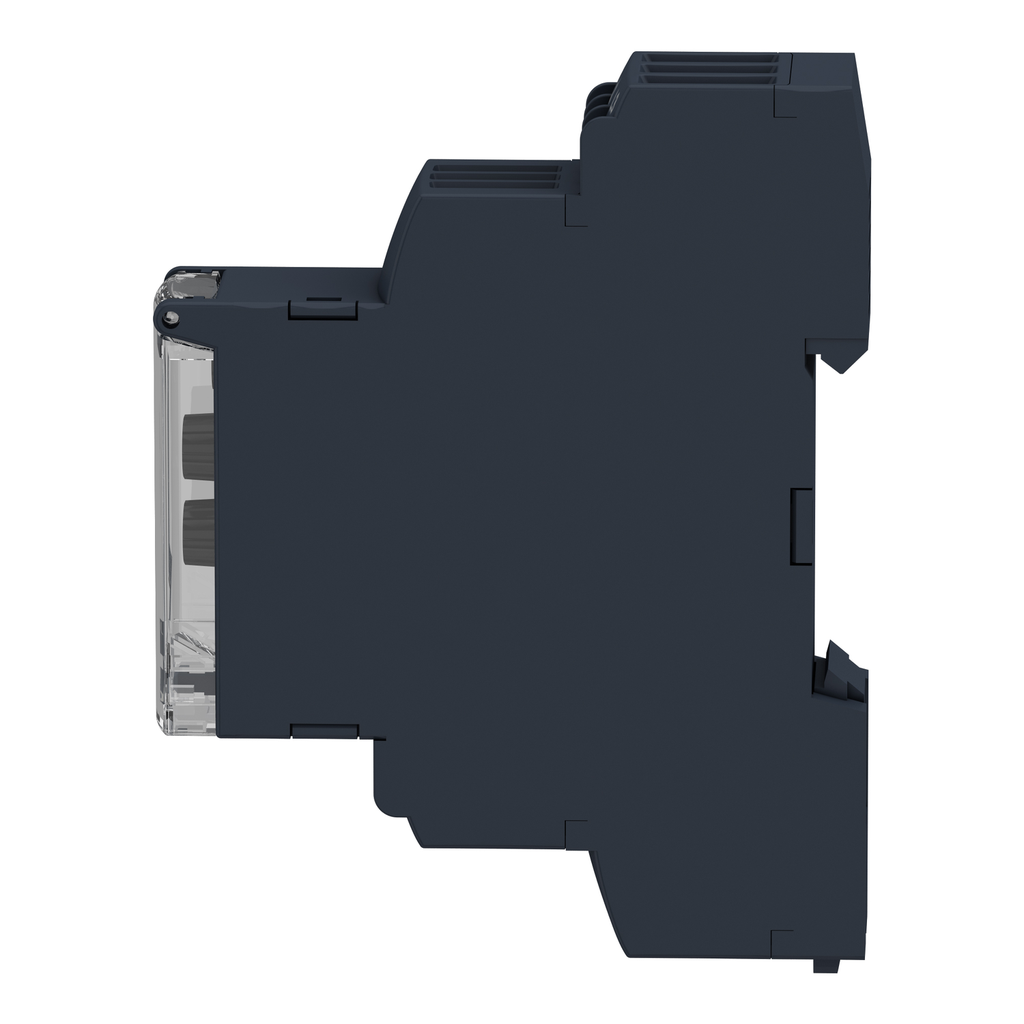

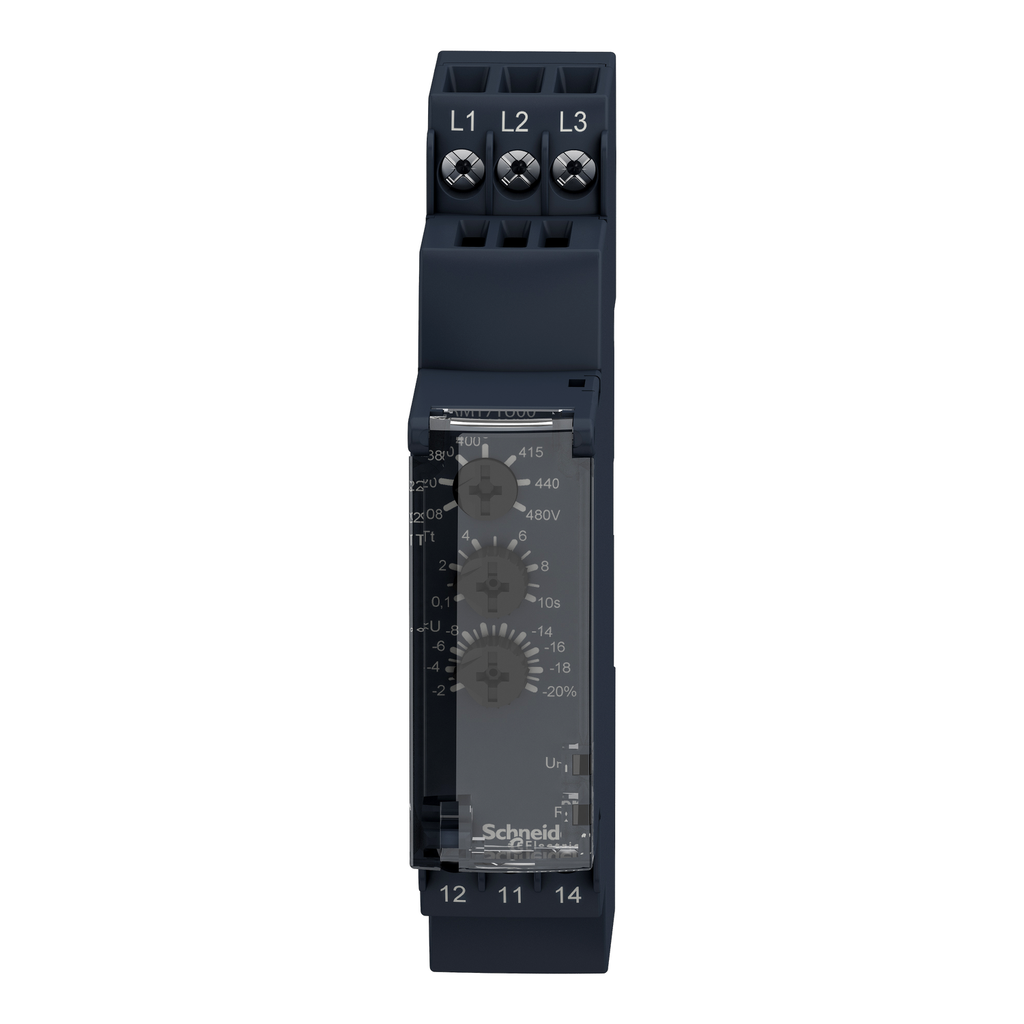

Product image for Square D RM17TU00 250 VAC/VDC 5 Amp 3-Phase 1NO 1NC Plastic 35 mm Din Rail Mount Multi-Functional Relay
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D RM17TU00 250 VAC/VDC 5 Amp 3-Phase 1NO 1NC Plastic 35 mm Din Rail Mount Multi-Functional Relay

Manufacturer: Square-D / Schneider | Catalog # RM17TU00 | Cooper Electric Part # 630161
$155.43 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens tuesday 7:00am et
6 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RM17-TU relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
1 C/O
Applications
For 3-phase supply
Contact Configuration
5
Contact Rating
250 V AC-250 V DC,5 A AC-5 A DC
Enclosure
IP20 (TERMINALS) CONFORMING TO IEC 60529-IP30 (CASING) CONFORMING TO IEC 60529
Line Rated Current
5 A
Net Weight
0.13 kg
Operating Cycles
360
Operating Temperature
-20-50 Adegrees C
Response Time
< 200 ms (in the event of a fault)
Size
0.69 in
Standard
IEC 60255-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 4 MMA AWG 20...AWG 11) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 12) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
Modular measurement and control relays;Multifunction control relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RM17TU

General Product Info

12-Digit UPC
787260040310
GTiN
03389119405096
Housing Material
Plastic
Product UPC
78590183213
Weight
0.13 kg

Dimensions

Warranty Length
18 mth
Width
0.69 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
