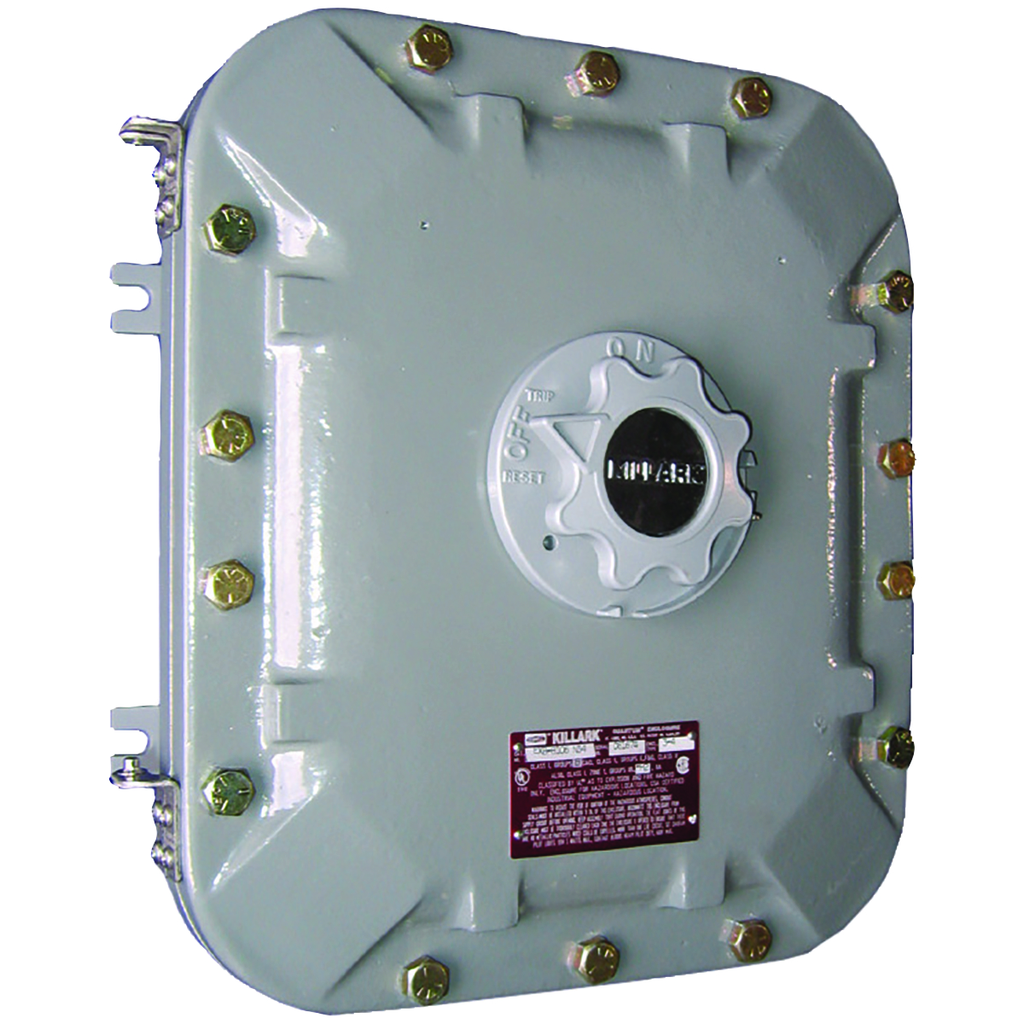

Product image for KLRK EXB-FDS-0603P EXB FUSED DISCON
Email

KLRK EXB-FDS-0603P EXB FUSED DISCON

Manufacturer: Killark | Catalog # EXB-FDS-0603P | Cooper Electric Part # 629832
$7,809.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
EXB-FDS Series - Aluminum Fused Disconnect Switch - Switch Rating 60 -3-Pole - Top Conduit 2 Inch - Bottom Conduit 1/2 Inch - Wire Size #14-4

Technical Information

Actuator
Handle
Amperage
60 Amp
Applications
EXB-FDS Series hinged cover disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings; outdoors or indoors in damp, wet, and dirty locations; or in areas where frequent washdowns, heavy rain, or water spray routinely occurs; as motor circuit disconnect and to provide short circuit protection of lighting and power circuits.
Current
60A
Enclosure
Aluminum enclosure
Frequency
60 Hz
Material
Aluminum
Mounting Type
Wall
NEMA Size
3,4,4X,7,9
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Type
Aluminum fused disconnect switch
Voltage
600 VAC

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936012155
GTiN
00783936012155
Product UPC
78393601215
Weight
82 lb

Dimensions

Height
15-1/4 Inch
Length
22-3/4 Inch
Width
15.000 in

Certifications and Compliance

Country of Origin
USA
Features
  • Copper-free aluminum construction, high strength, lighter in weight and corrosion resistant.
  • Fewer cover bolts (no corner bolts required) reduces installation and maintenance time.
  • Cover bolts are stainless steel.
  • Gasketed flange with O-ring located inside the bolt circle to seal out moisture.
  • Stainless steel hinges are standard.
  • Switch operating handle of copper-free aluminum can be padlocked, with up to three locks, in either the \"ON\" or \"OFF\" position.
  • Ductile mounting lugs adjust to irregular mounting surfaces.
  • Bodies have top and bottom drilled and taped conduit entrances for power and drain/breather.
  • Global applications (ATEX) Enclosures are available for global applications with \"CEN\" suffix.
  • Assembilies that are modified to CENELeC/ATEX standards maintain their North American certifications.
  • Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
