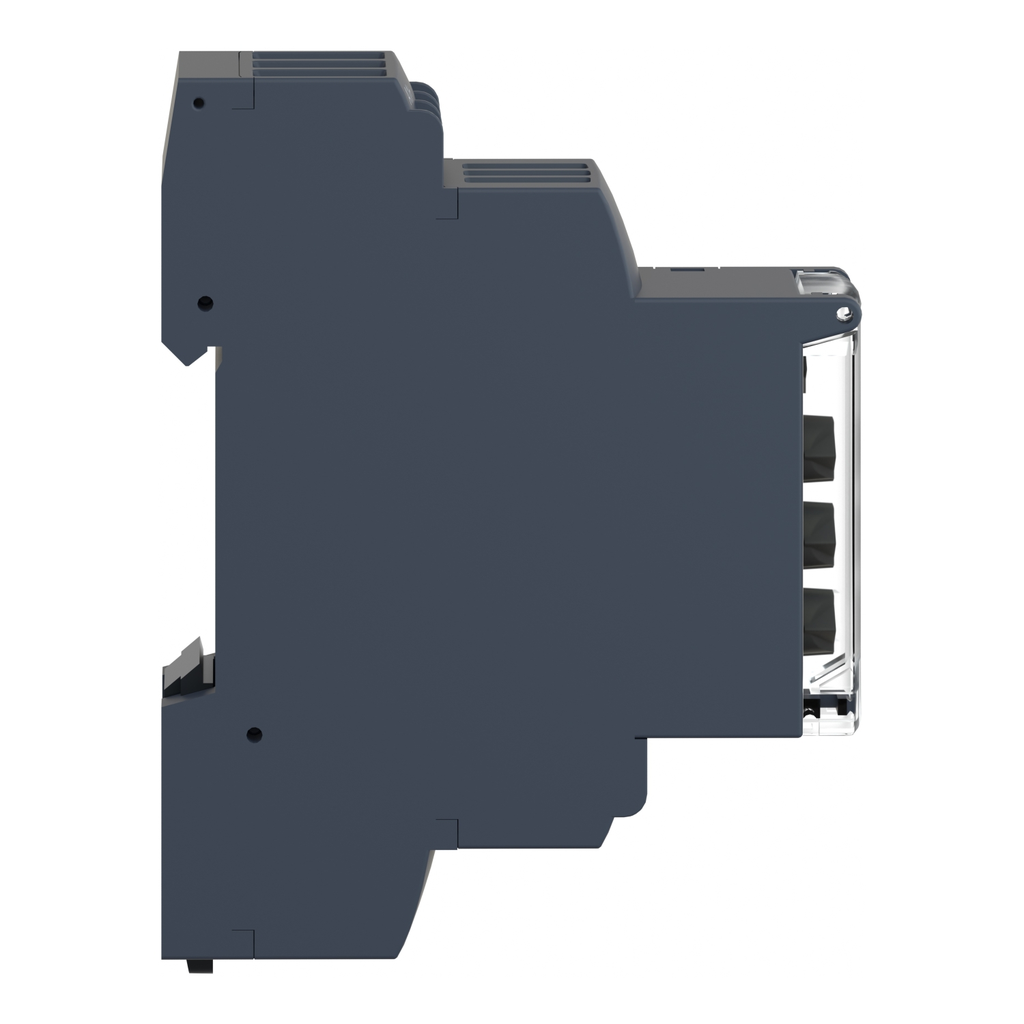

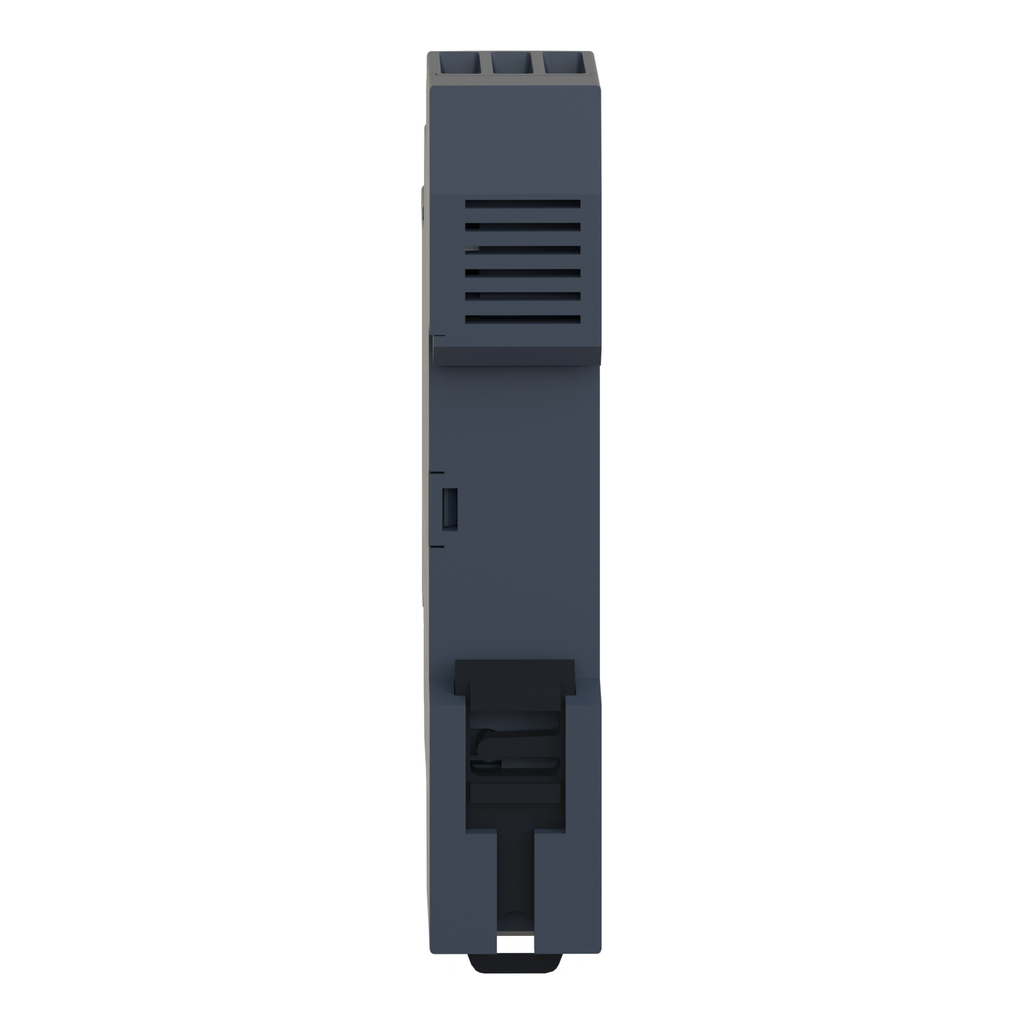

Square D RM17UAS15 0.69 x 17.5 Inch 240 VAC/VDC 1-Phase Voltage Measurement Relay

Manufacturer: Square-D / Schneider | Catalog # RM17UAS15 | Cooper Electric Part # 629820

$163.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony RM17-U control relay allows monitoring of voltage control in single phase network. This modular control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
1 C/O
Applications
For single-phase and DC supply
Contact Configuration
5
Contact Rating
250 V AC/DC,5 A AC/DC
Enclosure
IP20 (TERMINALS) CONFORMING TO IEC 60529-IP30 (CASING) CONFORMING TO IEC 60529
Line Rated Current
5 A
Net Weight
0.08 kg
Operating Cycles
360
Operating Temperature
-20-50 Adegrees C
Size
0.69 in
Standard
IEC 60255-6
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 4 MMA AWG 20...AWG 11) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...2 X 2.5 MMA AWG 24...AWG 12) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
Modular measurement and control relays;Voltage control relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RM17UAS

General Product Info

12-Digit UPC
389119405129
GTiN
03389119405126
Housing Material
Plastic
Product UPC
78590192211
Weight
0.08 kg

Dimensions

Warranty Length
18 mth
Width
17.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
