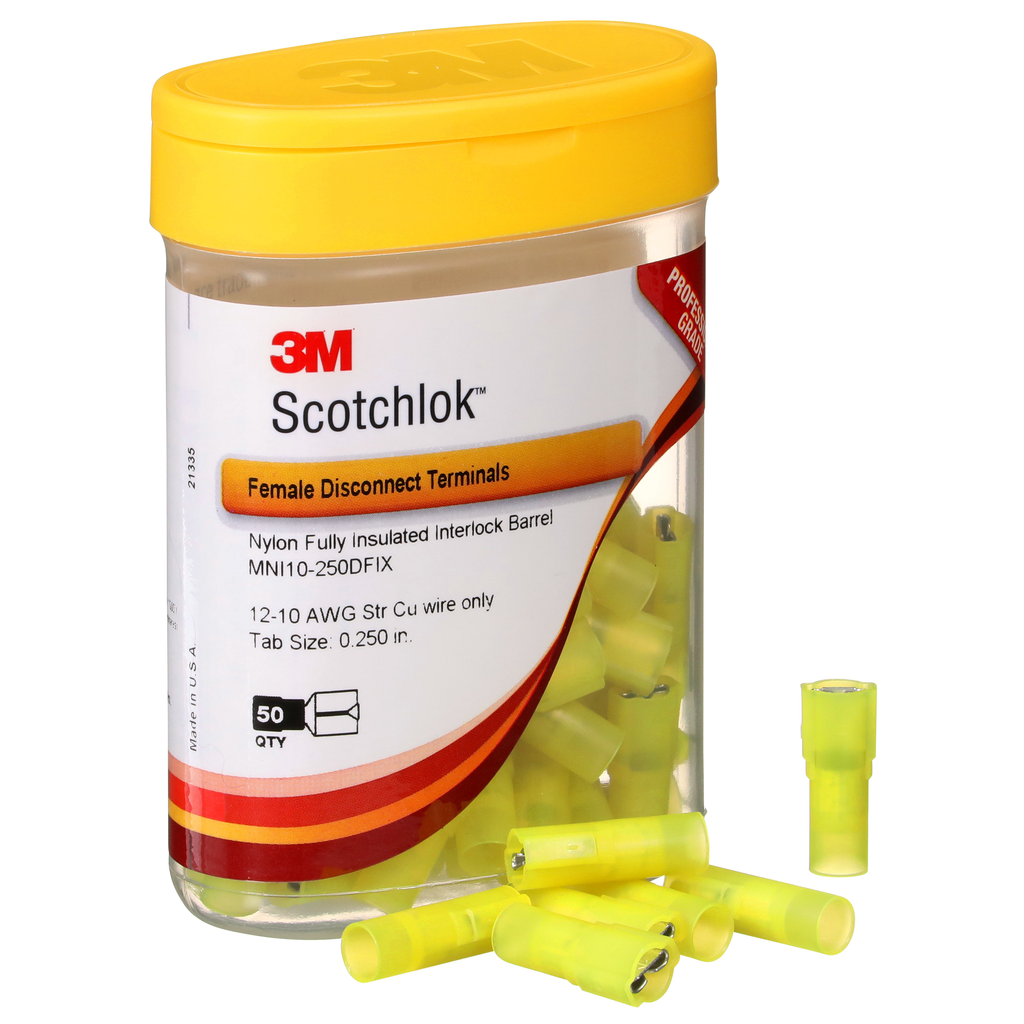

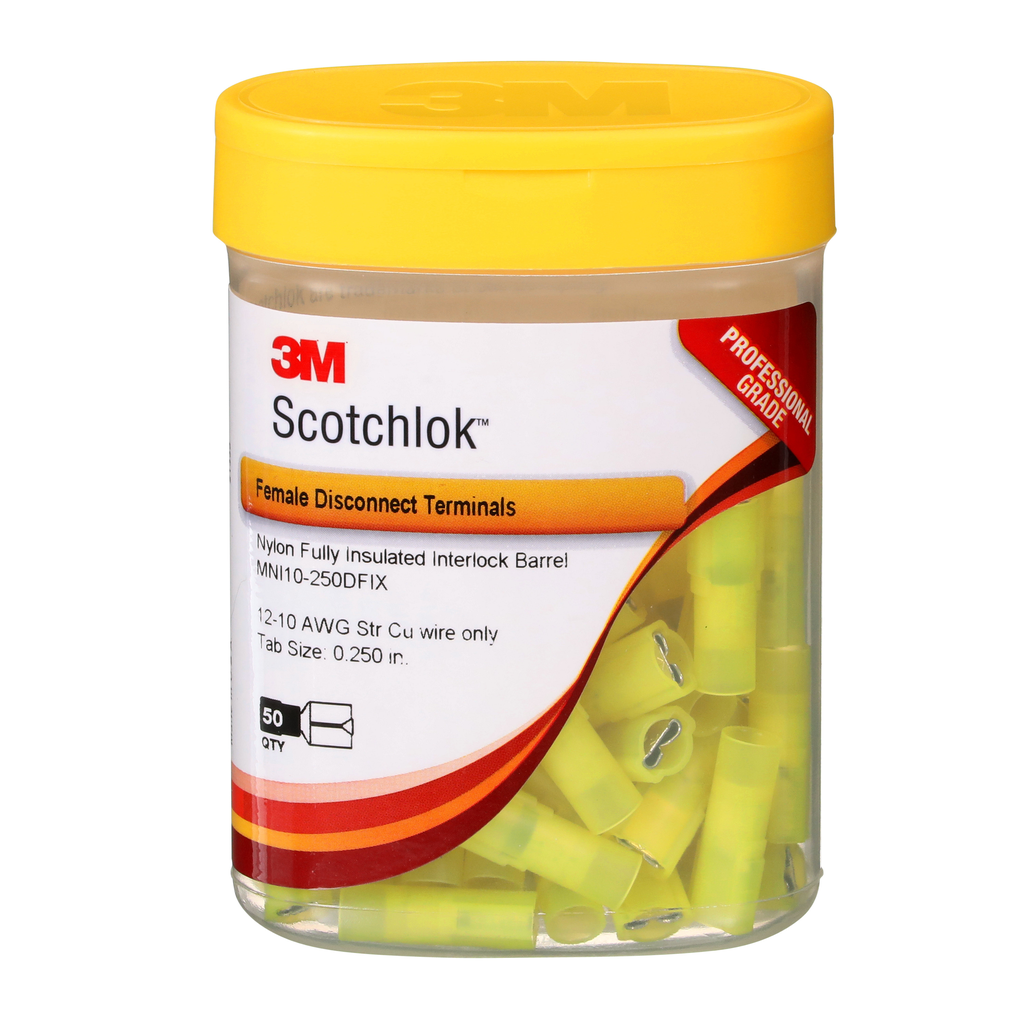

3M 7000133400 MNI10-250DFIX Scotchlok Female Disconnect Nylon Insulated (50/bottle - 500/case)

Manufacturer: 3M | Catalog # 7000133400 | Cooper Electric Part # 629449
$3.21 /ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens monday 7:00am et
650 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Catalog Page Product Spec Sheet

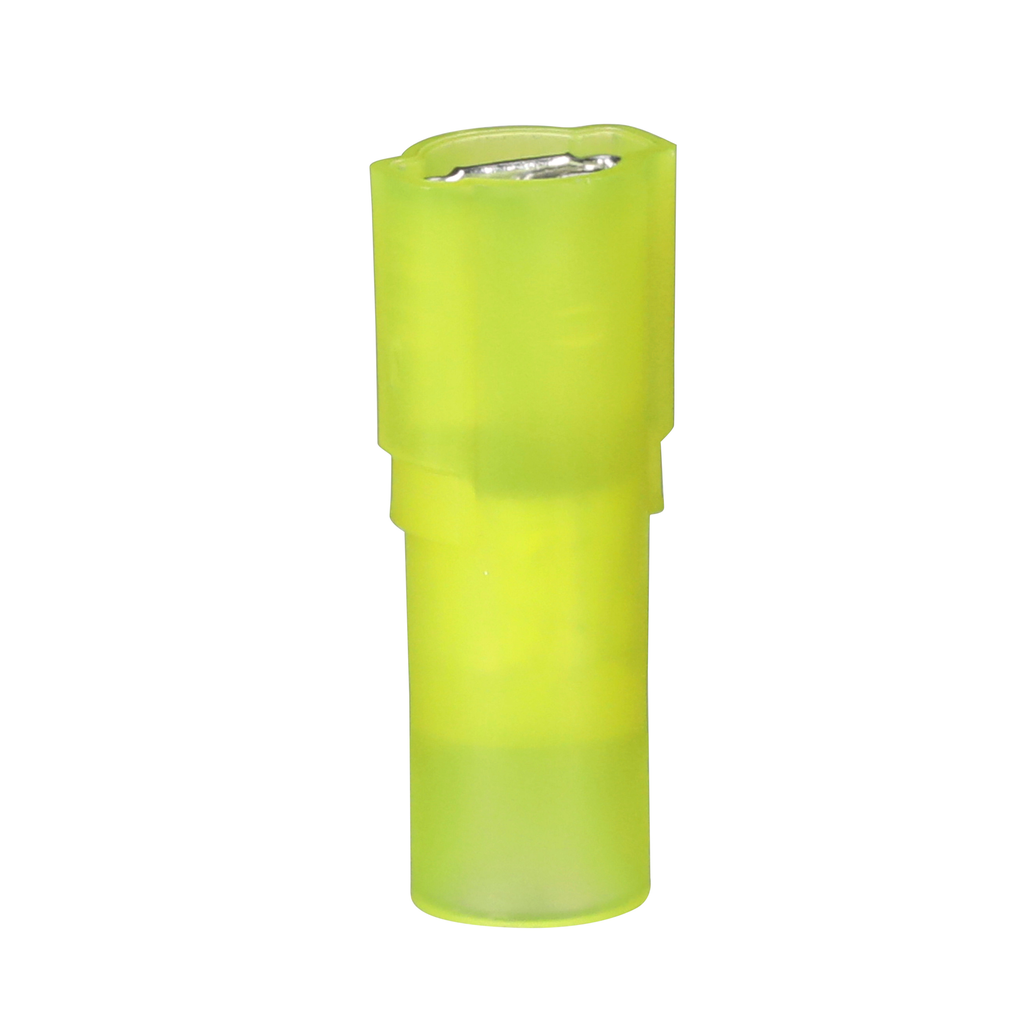

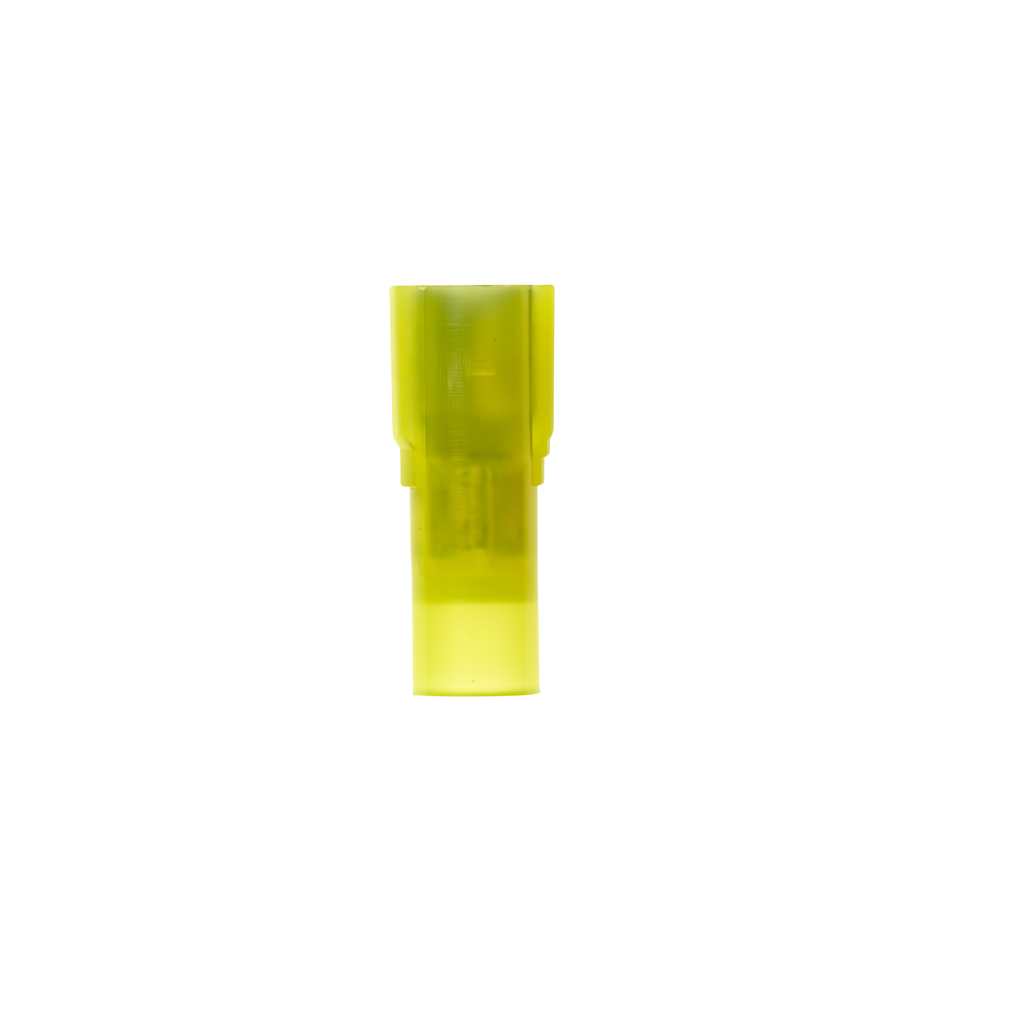

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Interlocking Barrel
Conductor Size
12-10 AWG
Connection Type
Wire
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Tab Size
1/4 in
Temperature Rating
221 degrees F
Terminal Size
12 - 10 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
E1 Plus Solid State Relay

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589304
Color
Yellow
GTiN
00051128589304
Product UPC
05112858930

Dimensions

Diameter
0.23 Inch
Length
0.99 Inch
Overall Length
0.99 in
Thickness
0.032 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires

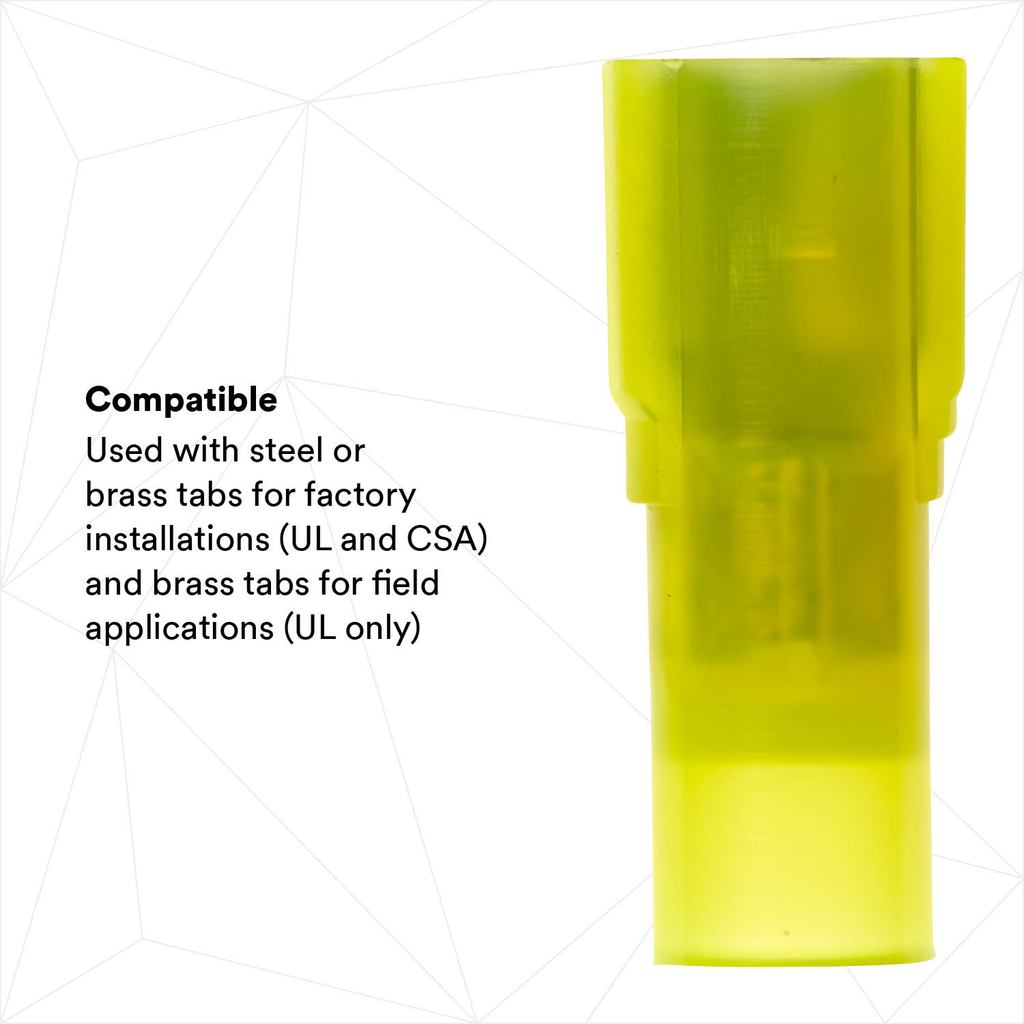

  • Mates with 0.25-in wide male tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
