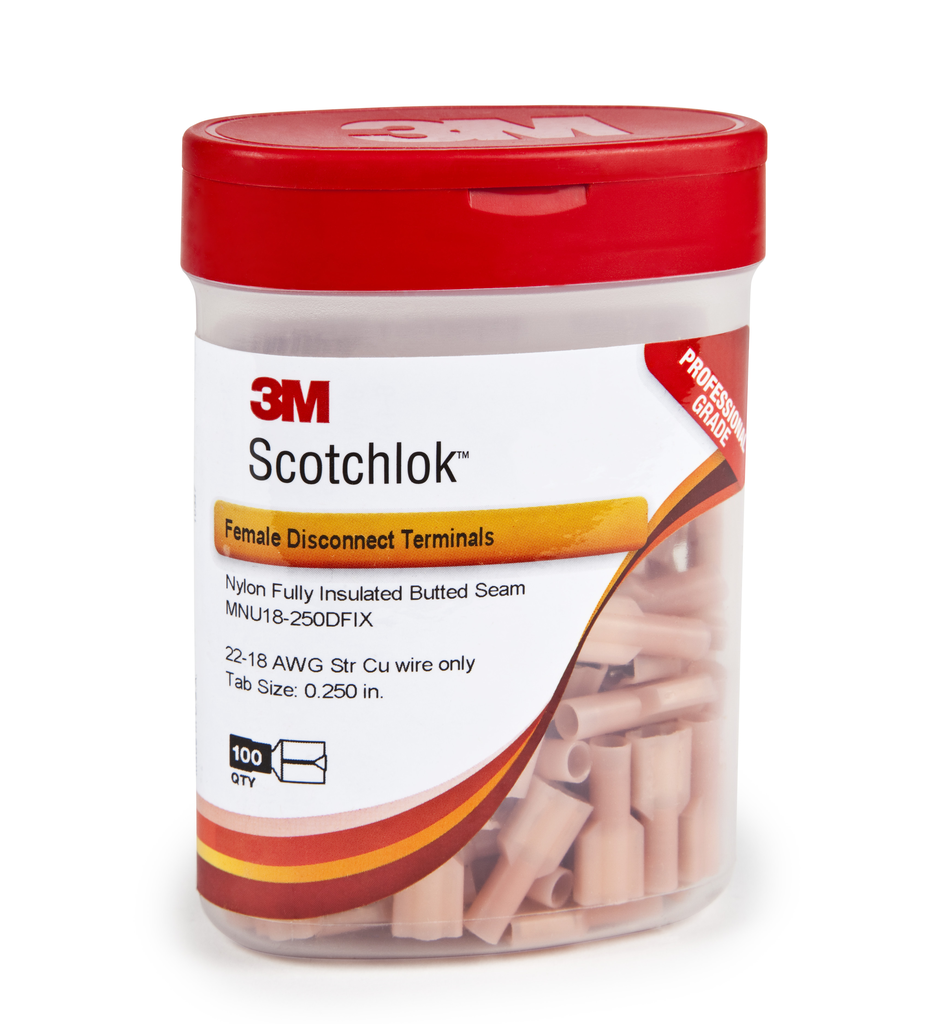

3M MNU18-250DFIX 100/Bottle Nylon Insulated Female Disconnect

Manufacturer: 3M | Catalog # 7000133349 | Cooper Electric Part # 629429
$1.94/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
400 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page

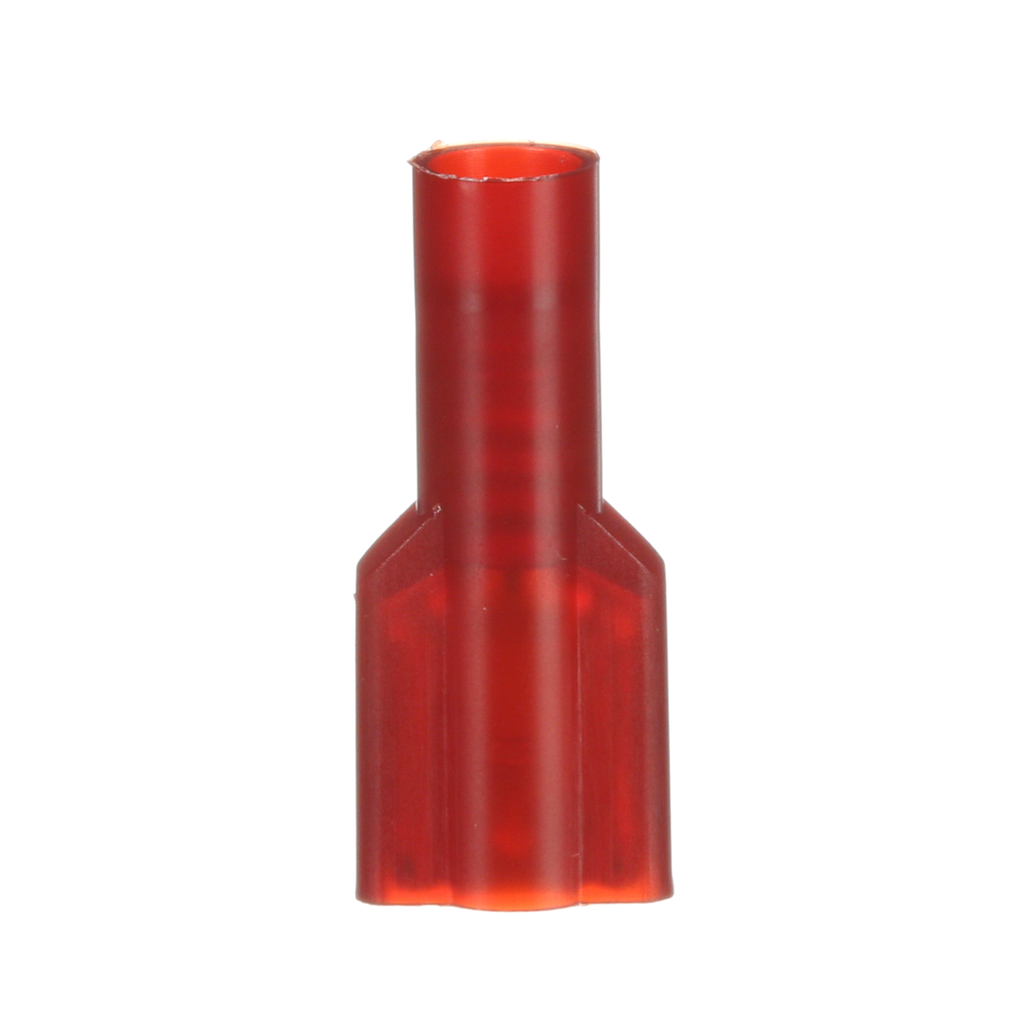

3M™ Scotchlok™ Female Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the female part over male. It has good corrosion resistance, improved mechanical performance, and is both versatile and easy to use. It has dents and rolled edges to offer good holding force, while allowing for a quick disconnect. The terminal has a fully insulated, nylon, butted-seam barrel, and withstands a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius). Its durable brass construction offers good conductivity and its tin-plated finish resists corrosion. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
22-18 AWG
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Tab Size
6.3 x 0.8 mm
Terminal Size
22 - 18 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
E1 Plus Solid State Relay

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587768
Color
Red
GTiN
00051128587768
Product UPC
05112858776

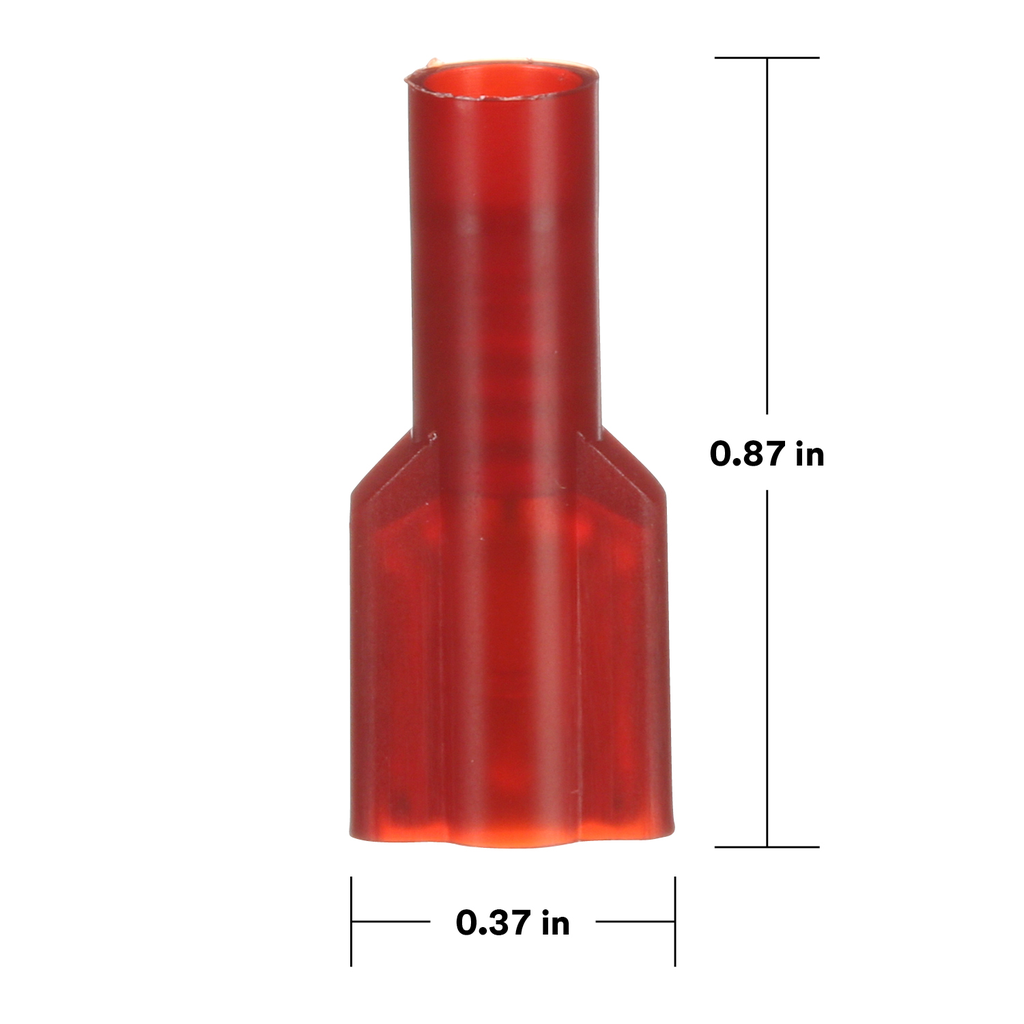

Dimensions

Diameter
0.23 Inch
Length
0.87 Inch
Overall Length
0.87 in
Thickness
0.032 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features

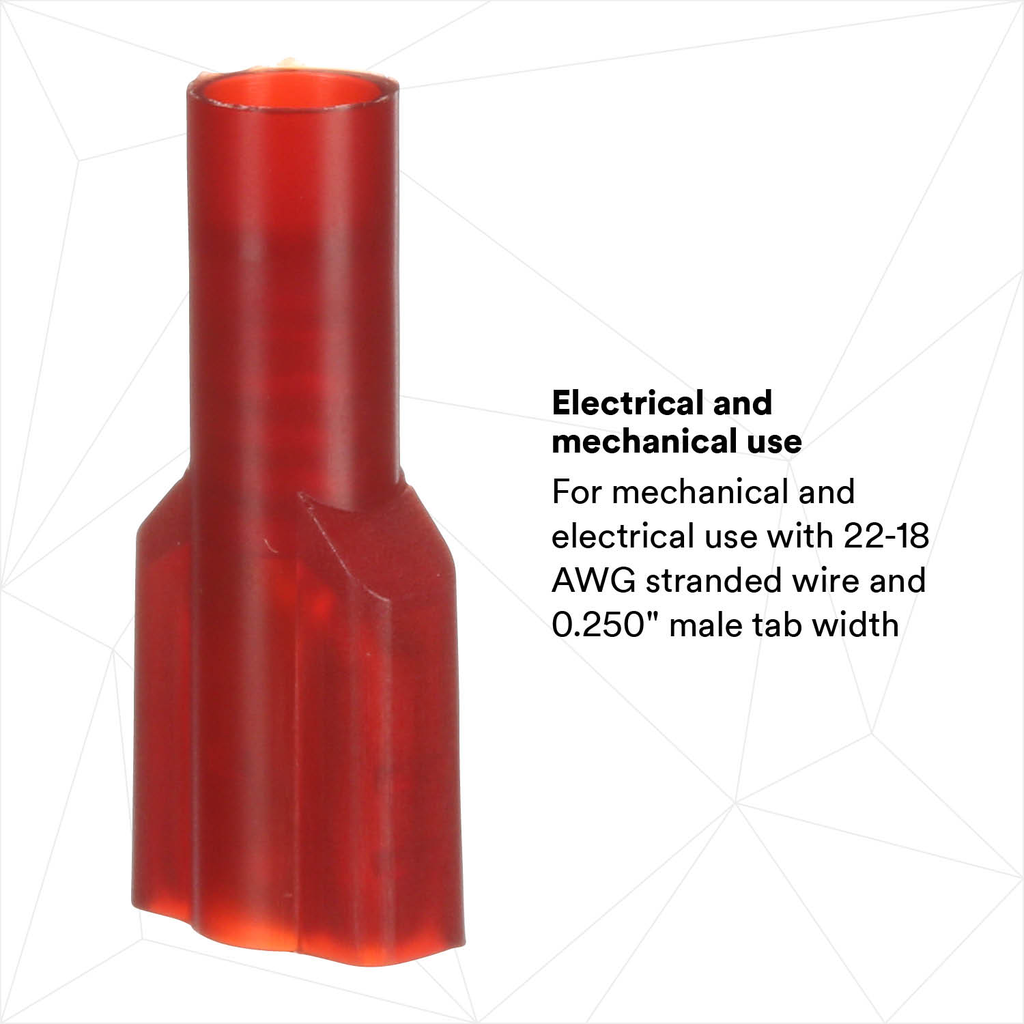

  • ELECTRICAL AND MECHANICAL USE: For mechanical and electrical use with 22-18 AWG stranded wire and 0.250\" male tab width

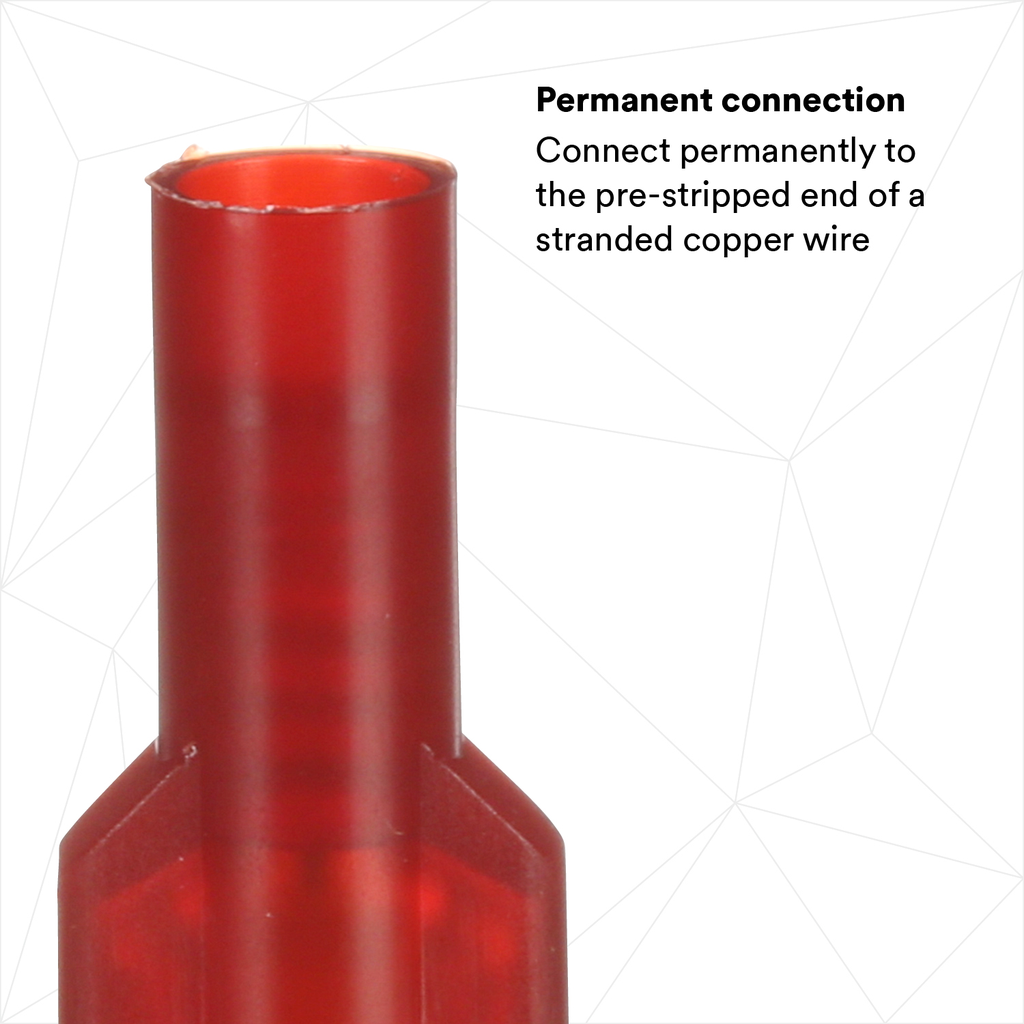

  • PERMANENT CONNECTION: Connect permanently to the pre-stripped end of a stranded copper wire
  • CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
  • UL LISTED: UL Standard No. 310, 3M File No. E70512
  • CSA CERTIFIED.: CSA Standard No. 22.2, 3M File No. LR22190
  • FOR FACTORY INSTALLATION: For factory installations on steel or brass tabs, UL and CSA
