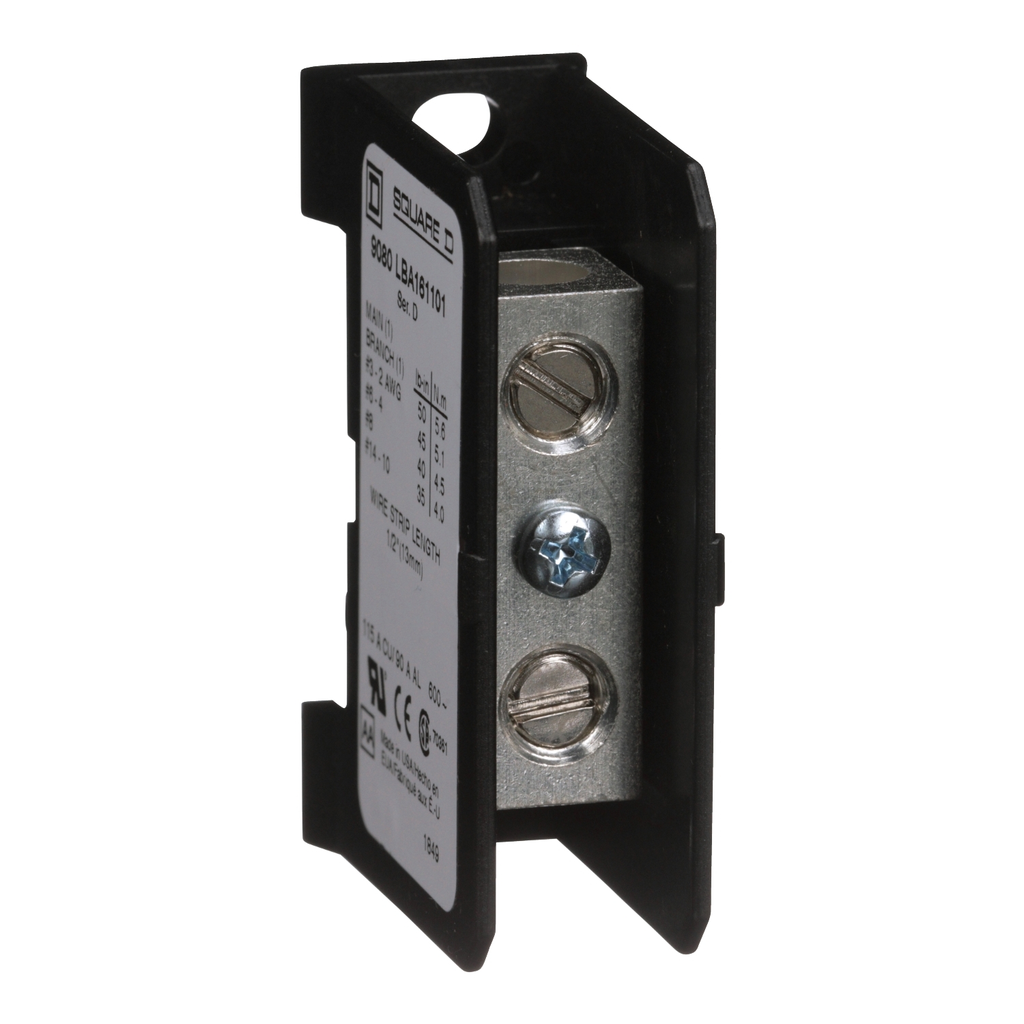

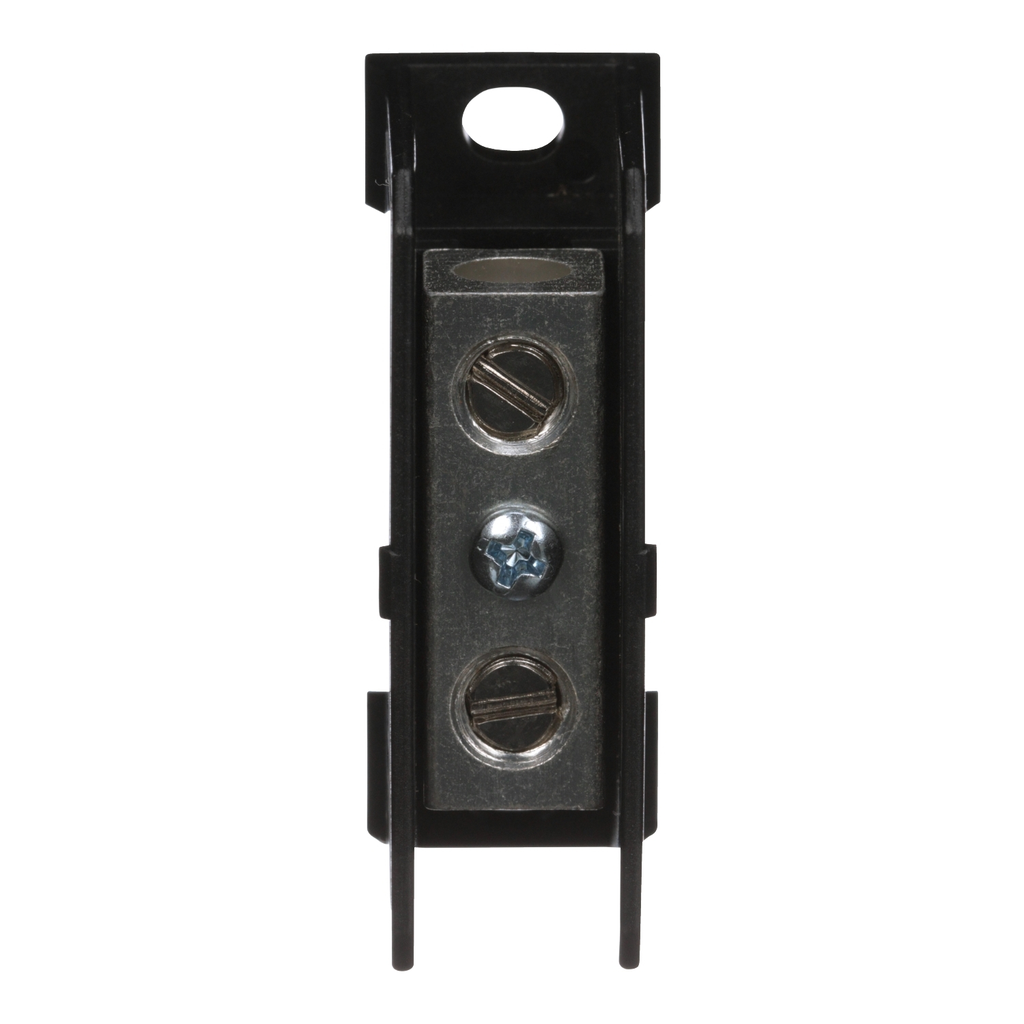

Square D 9080LBA161101 115 Amp 600 Volt 14 to 2 AWG Primary Thermoplastic 1-Pole Miniature Power Distribution Block

Manufacturer: Square-D / Schneider | Catalog # 9080LBA161101 | Cooper Electric Part # 629375
$16.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
115-115 Amp COPPER-90-90 Amp ALUMINIUM
Applications
9080LB,9080LB11
Conductor Size
14-2 AWG
Current
115 Amp
Line Rated Current
115-115 A
Material
Thermoplastic: Block
Mounting Type
Surface Mount
Number of Poles
1 Pole
Number of Terminations
1
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Size
1.62 in
Strip Length
0.5 in
TC Connection

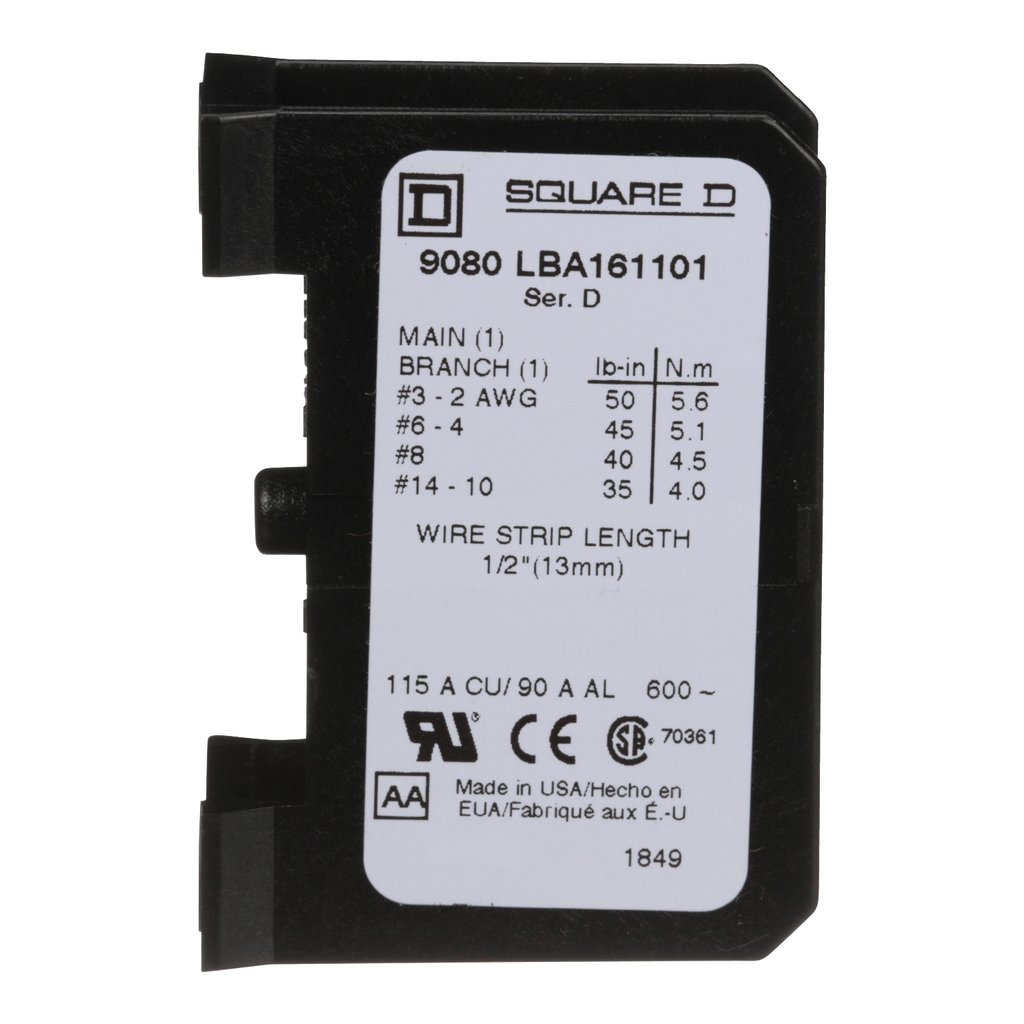

LINE LUG 50 LBF.IN AWG 3...AWG 2 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14 COPPER-LINE LUG 45 LBF.IN AWG 6...AWG 4 COPPER OR ALUMINIUM-LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14 COPPER-LOAD LUG 50 LBF.IN AWG 3...AWG 2 COPPER OR ALUMINIUM-LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER OR ALUMINIUM-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
9080LB11;Miniature Power Distribution Block
Voltage
600 Volt
Wire Size
Line 1, AWG 14...AWG 2, copper or aluminium;Load 1, AWG 14...AWG 2, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097273
GTiN
00785901097273
Product UPC
78590109727

Dimensions

Depth
1.62 Inch
Height
2.29 Inch
Warranty Length
18 mth
Width
0.85 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080LB11
