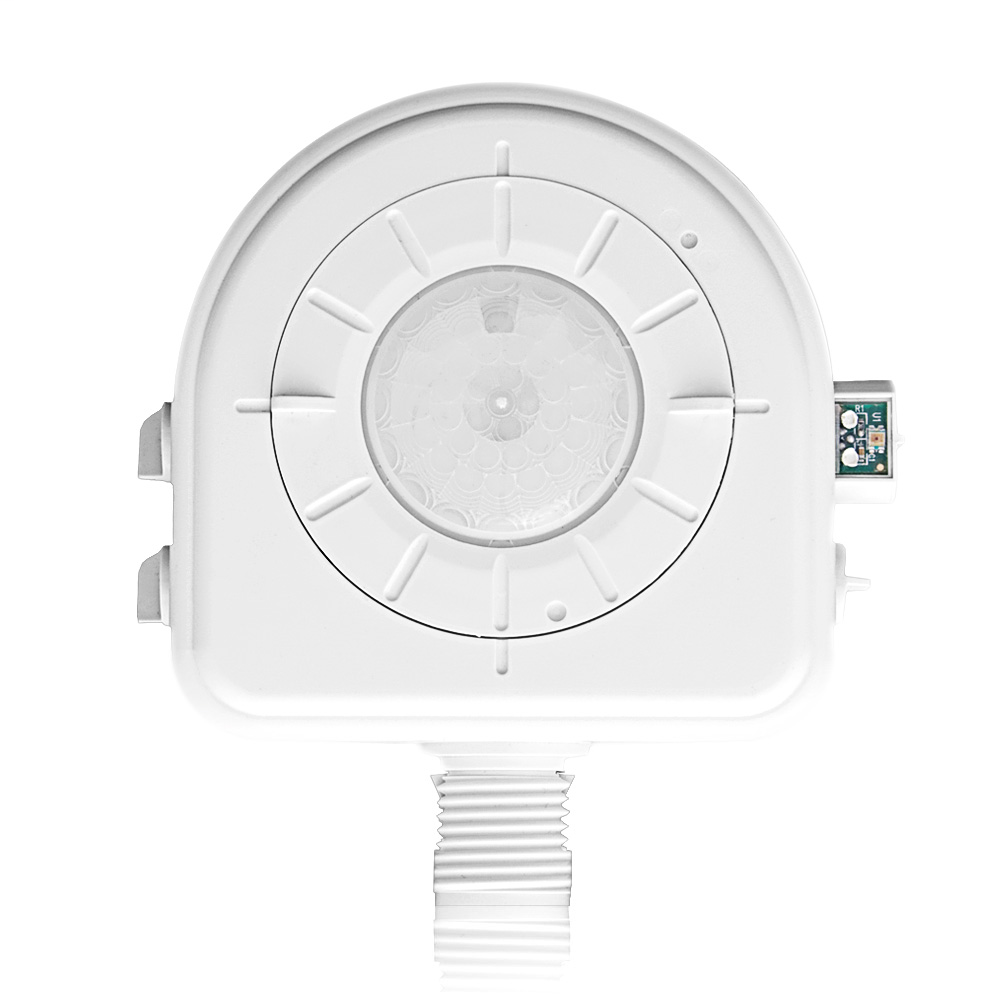

Product image for LEV OSFHP-ITW 38.96EN HB PHOTO
Email

LEV OSFHP-ITW 38.96EN HB PHOTO

Manufacturer: Leviton Mfg Co | Catalog # OSFHP-ITW | Cooper Electric Part # 626409
$61.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Light Photocell, Fixture Mounted, Interchangeable Lenses, LED, 120V/230V/277V/347V, Passive Infrared Occupancy Sensor, White

Technical Information

Applications
For Commercial use
Coverage
8-40 sq-ft
Frequency
50/60 Hz
Mounting Type
Fixture
Sensor Type
Passive Infrared
Size
1.58 H x 4.34 L IN
Standard
CSA 22.2 No 205 M1983,FCC Certified,Title 24 Compliant,UL 916
Temperature Rating
-10 to 70 degrees C Operating, -40 to 71 degrees C Storage
Type
High Bay Photocell
Voltage
120-347 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477528136
Color
White
Environmental Conditions
Cold Storage Temperature Range (-40 To 71 DEG C),Relative Humidity (0 PCT To 90 Pct)
GTiN
00078477528136
Product UPC
07847752813

Certifications and Compliance

Country of Origin
China
Features
  • Rotating light sensor:
  • optimal for best performance in locating light measurements (up, down and side lighting)
  • Auto calibration:
  • set to auto-calibration, light sensor measures lowest light level of facility with all lights ON for 24 hours to determine the Daylighting Set Point
  • Manual calibration:
  • optimize energy savings and operation by manually configuring the Daylighting Set Point
  • Performance daylighting:
  • enhanced design algorithms to assure lights will not cycle during cloud cover, or varying light levels. (No more daylight = load will turn OFF in +/- 5 minutes, Daylight returns = load will turn ON +/- 1 minute).
  • Fast and simple setting:
  • the OSFHP does not require power to set the time delay saving valuable time during installation - Load 1 = 30s-30m  - Load 2 = 30s-infinity (starts after load 1 expires)
  • Fast and simple testing:
  • the OSFHP will instant ON within 5 seconds. Upon initial power, relay is closed enabling labor savings testing in seconds.
  • Power interruption state:
  • for energy savings and safety, if power is lost to device, device will return to last known state
  • Fast, simple installation:
  • the OSFHP sensor easily installs on individual fixtures using standard 1/2 knockouts and the quicksnap feature which eliminates the time to tighten the lock-nut. The 42 wire leads reduce time and materials for connecting the ballast. Simply make the electrical connections inside the ballast compartment, install the appropriate adjustable lens assembly included, and the sensor is ready. Ideal for use in warehouses, manufacturing, cold storage and other high ceilings.
  • Zero crossing circuitry:
  • relay uses a zero crossing circuitry to provide reliable, long-life operation
  • Range and coverage:
  • the 360° high-bay PIR lens provides a 2:1 spacing to mounting height coverage under 25 ft. mounting and a 1.5:1 for heights up to 40 ft. mounting. The 360° low-bay lens provides 2:1 spacing to mounting height coverage for 8 ft. to 20 ft. mounting.
  • LED:
  • super bright green LED indicates occupancy detection and can be seen at 40 feet
  • False detection protection:
  • Energy saving technology is designed into the OSFHP to assure your lights are on only when needed
