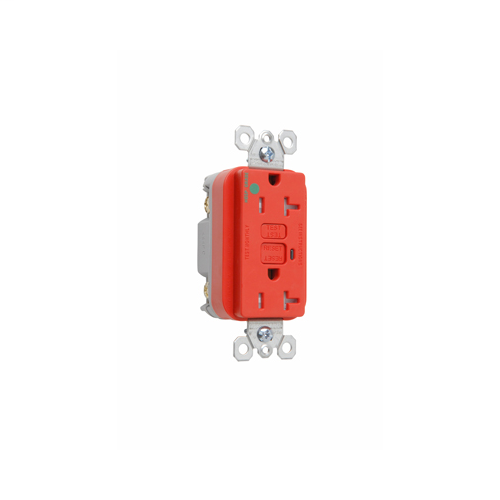

Product image for P&S 2095HGTRNARED DISC SUB 2097HGTR
Image thumbnail 0
Image thumbnail 1
Email

P&S 2095HGTRNARED DISC SUB 2097HGTR

Manufacturer: Pass & Seymour / Legrand | Catalog # 2095-HGTRNARED | Cooper Electric Part # 625706
$74.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. This GFCI meets the requirements of the Buy American provision of the American Recovery and Reinvestment Act and provides the same protection as our traditional GFCI.

Technical Information

Amperage
20 Amp
NEMA
5-20R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
adorne

General Product Info

12-Digit UPC
785007007350
Color
Red
GTiN
00785007007350
Product UPC
78500700735

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • FSUL Listed (Federal Specification WC596).
  • For covering patents, see www.legrand.us/patents.
  • Trip indicator light (red LED).
  • Ground screw has a back wire clamp for easy installation.
  • Tri-drive screws.
  • High-impact-resistant thermoplastic construction.
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Two back wire holes per terminal.
  • Supplied with matching TP26 nylon wall plate.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Extra-long strap.
  • Class A rated GFCI.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • 10kA short circuit rating.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
Available Options
  • NAFTA-Compliant Hospital Grade Tamper-Resistant 20A Duplex GFCI, Ivory
  • NAFTA-Compliant Hospital Grade Tamper-Resistant 20A Duplex GFCI, White
  • NAFTA-Compliant Hospital Grade Tamper-Resistant 20A Duplex GFCI, Gray
  • NAFTA-Compliant Hospital Grade Tamper-Resistant 20A Duplex GFCI, Light Almond
  • NAFTA-Compliant Hospital Grade Tamper-Resistant 20A Duplex GFCI, Red
