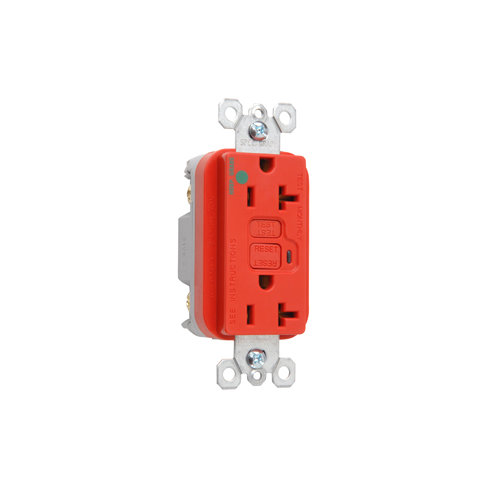

Product image for Pass & Seymour 2095-HGNARED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Thermoplastic Duplex GFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 2095-HGNARED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Thermoplastic Duplex GFCI Receptacle

Manufacturer: Pass & Seymour / Legrand | Catalog # 2095-HGNARED | Cooper Electric Part # 625705
$67.68/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. This GFCI meets the requirements of the Buy American provision of the American Recovery and Reinvestment Act and provides the same protection as our traditional GFCI.

Technical Information

Amperage
20 Amp
NEMA
5-20R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007007312
Color
Red
GTiN
00785007007312
Product UPC
78500700731

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • High-impact-resistant thermoplastic construction.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Supplied with matching TP26 nylon wall plate.
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Tri-drive screws.
  • Two back wire holes per terminal.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • 10kA short circuit rating.
  • Ground screw has a back wire clamp for easy installation.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • For covering patents, see www.legrand.us/patents.
  • Extra-long strap.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Dual-direction test and reset buttons.
  • Trip indicator light (red LED).
  • Button colors match the device face.
  • Class A rated GFCI.
  • FSUL Listed (Federal Specification WC596).
Available Options
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Red
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, White
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Gray
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Brown
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Ivory
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Light Almond
