Square D XB4BVM3 230-240V PROTECTED GREEN LED P

Manufacturer: Square-D / Schneider | Catalog # XB4BVM3 | Cooper Electric Part # 625701
$52.92/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

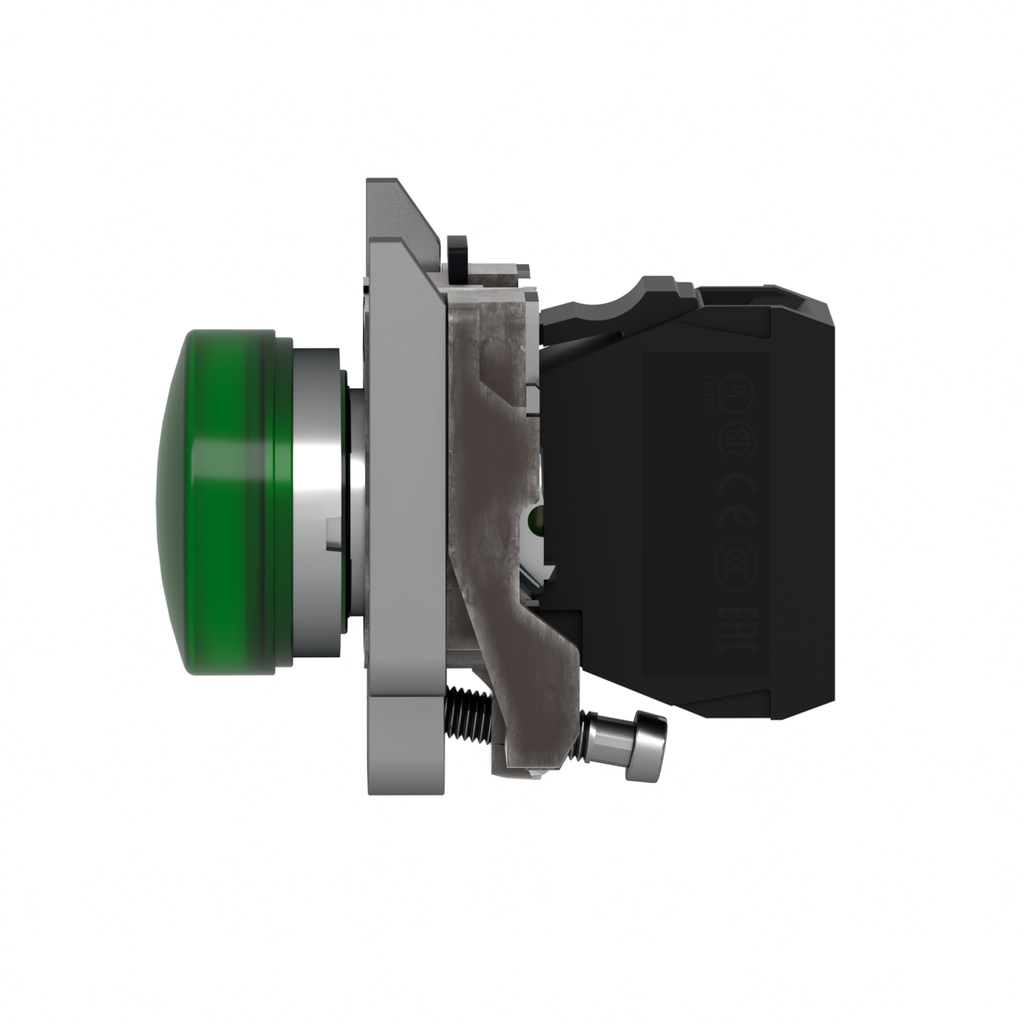

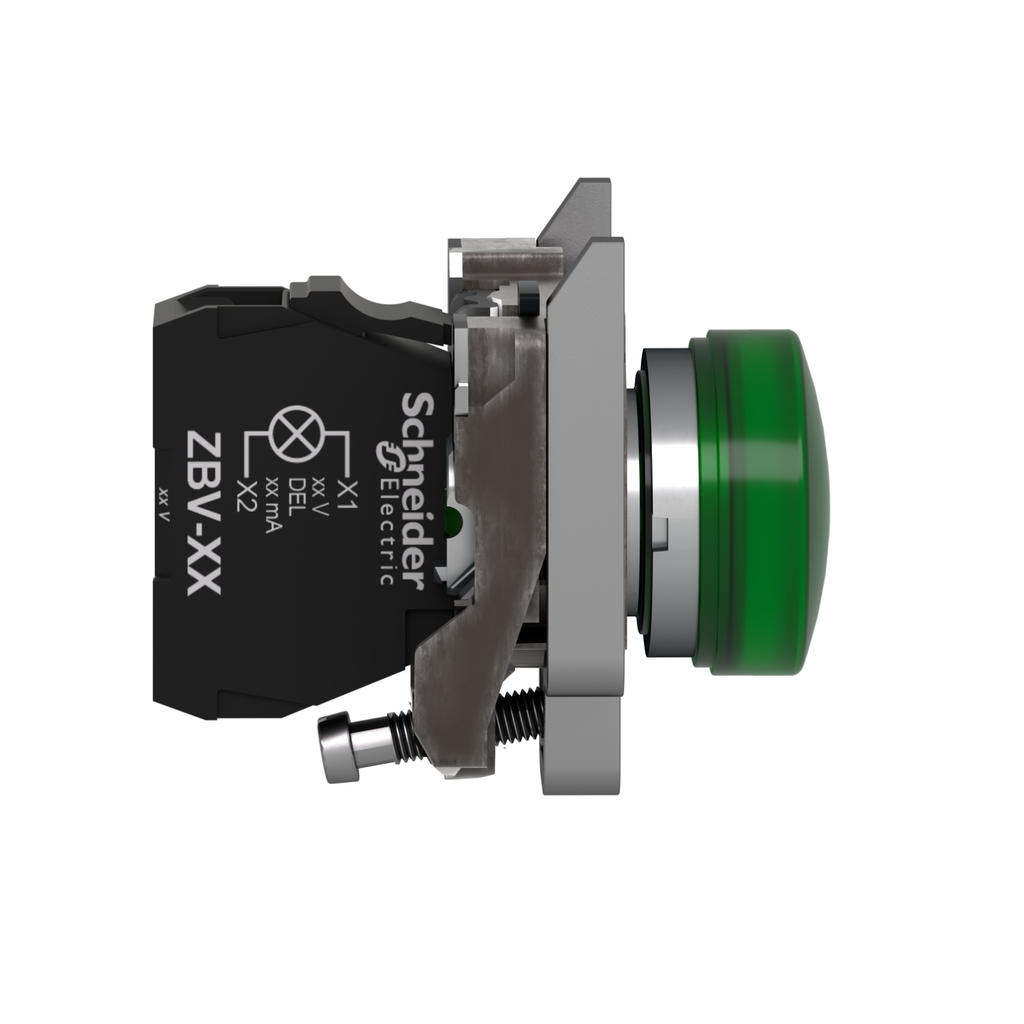

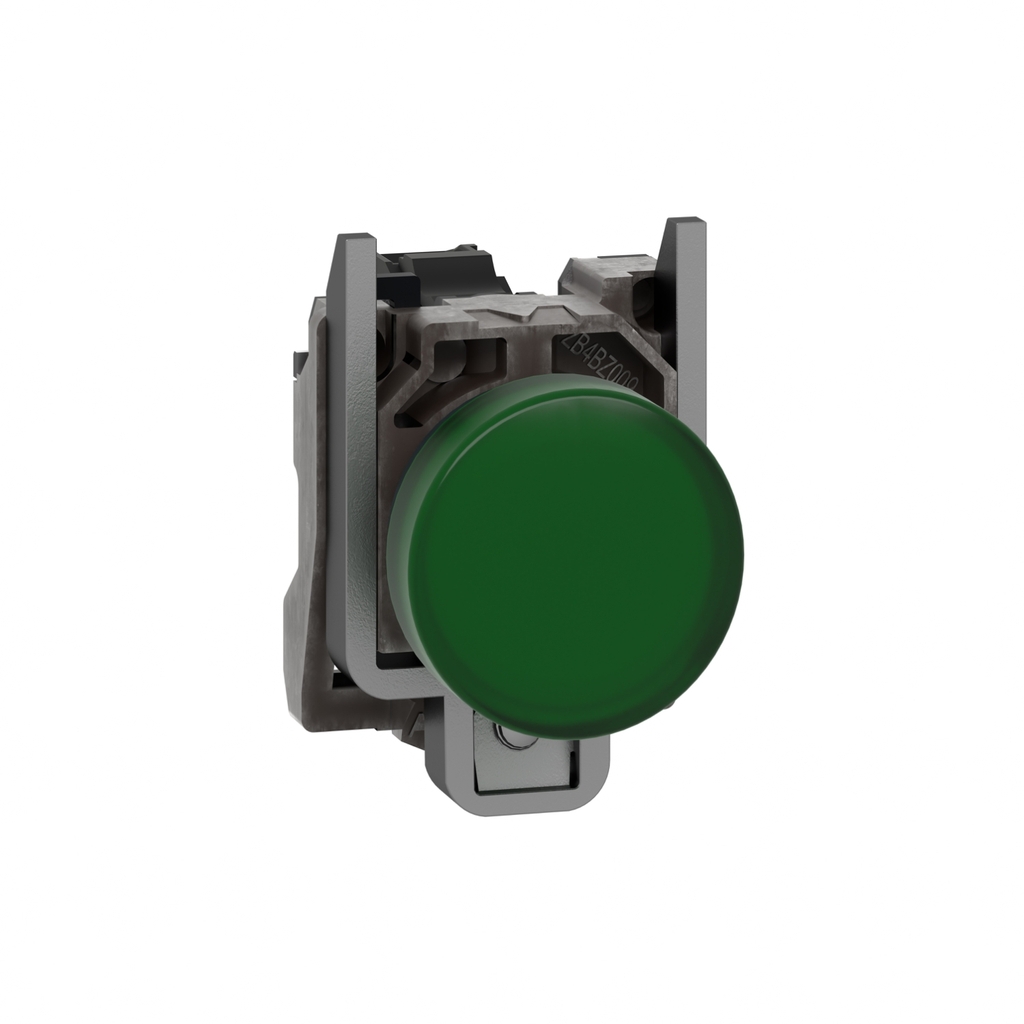

This Harmony XB4 plain lens modular green pilot light is supplied with 230V to 240V AC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical Information

Amperage
14 mA
Applications
SIGNALLING
Base
Integral LED
Bezel Material
Chromium Plated Metal
Current
14 mA
Head Type
Standard
Light Source
Universal LED
Net Weight
0.08 kg
Operating Temperature
-40-70 Adegrees C
Size
2.13 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Style
INTEGRAL LED
Type
Pilot light
Voltage
230...240 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
389110892003
Color
Green
Environmental Conditions
NEMA 4/4X/13
Finish
Chromium
Fixture Type
LED (GREEN) 230V
GTiN
03389110892000
Product UPC
78590146643
Shape
Round
Weight
0.08 kg

Dimensions

Depth
54 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBY2101
  • ZBP0
Cross Sell Products
  • XAPD1501
Spare Part Products
  • ZB4BVM1
  • ZB4BV033
