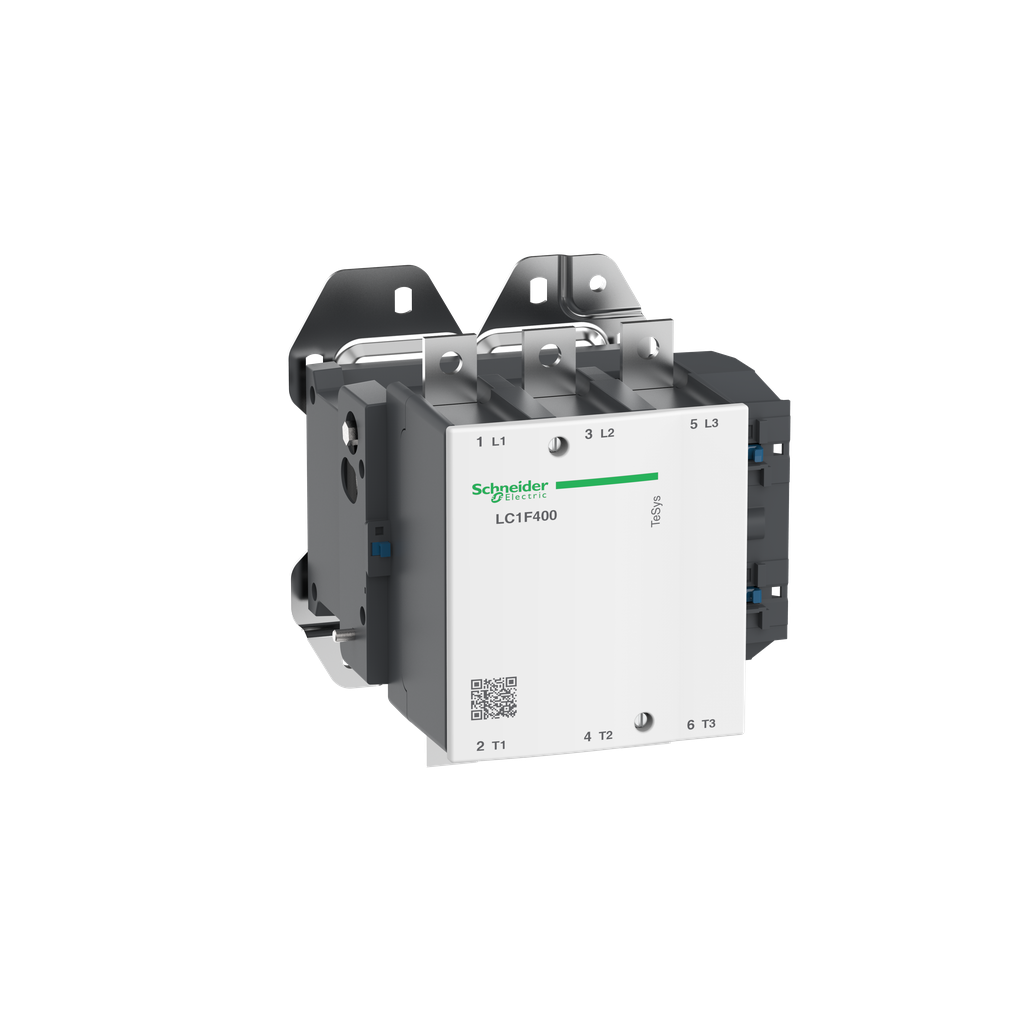

Product image for Square D LC1F400M7 600 VAC 400 Amp IEC Contactor Plus Options
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D LC1F400M7 600 VAC 400 Amp IEC Contactor Plus Options

Manufacturer: Square-D / Schneider | Catalog # LC1F400M7 | Cooper Electric Part # 625696
$1,874.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55.C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
220 V AC 40...400 HZ,220 V AC STANDARD,<= 1000 V AC 50/60 HZ- <= 460 V DC
Contact Configuration
3 NO
Contact Rating
500 A 40 AC
Impedance
0.26 MOhm - Ith 500 A 50 Hz
IP Rating
IP20
Net Weight
9.1 kg
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-40-70 Adegrees C,-5-55 Adegrees C
Range
TeSys
Rated Insulation Voltage
1000 V
Size
206 MM,213 MM,219 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 30 X 5 MM-POWER CIRCUIT LUGS-RING TERMINALS 2 150-150 MMA-POWER CIRCUIT BOLTED CONNECTION
Type
Contactor
Voltage
1000 Volt
Wattage
65 Watt AC-1 - 42 Watt AC-3

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS F

General Product Info

12-Digit UPC
389110122131
GTiN
03389110122138
Product UPC
78590175657
Weight
20.06 lb

Dimensions

Depth
219 mm
Height
206 mm
Warranty Length
18 mth
Width
213 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CB,CSA,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UKCA,UL
Country of Origin
Czech Republic
