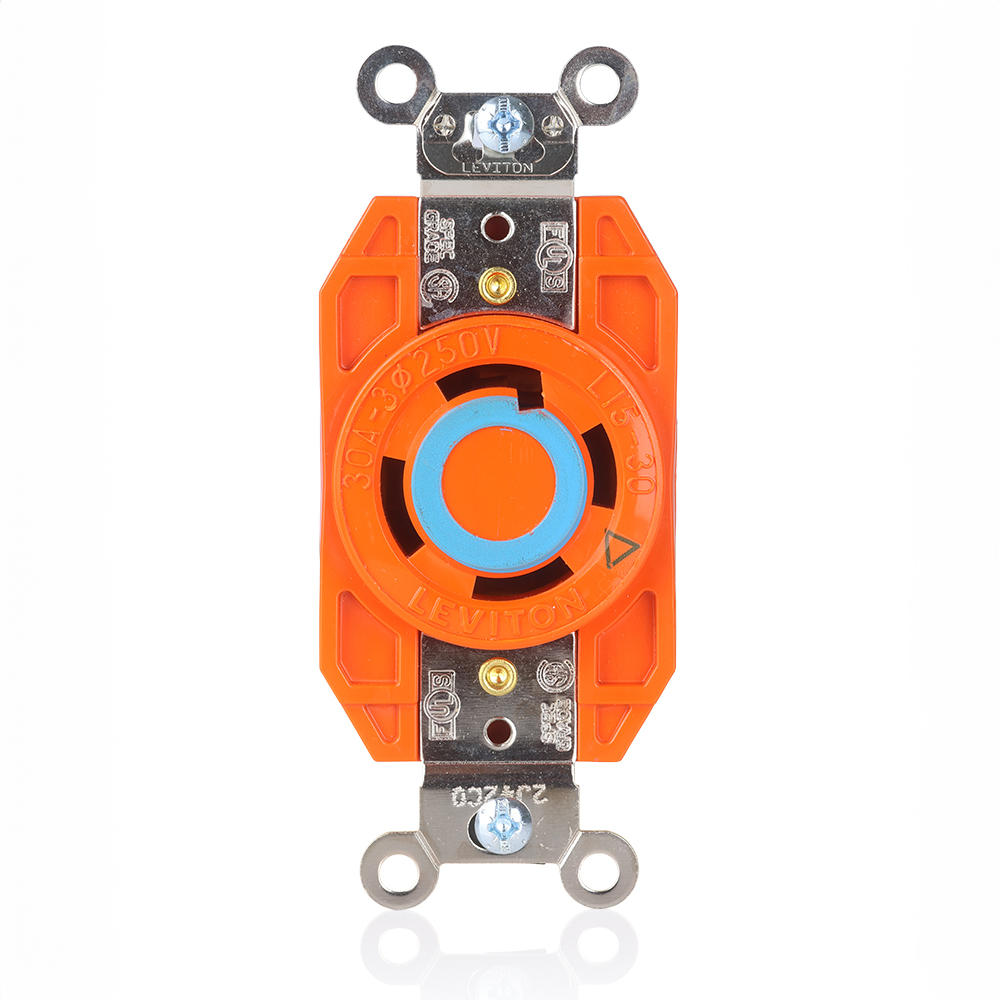

Product image for LEV 2720-IG OR REC LOCK 3PO 4WI 3PH
Image thumbnail 0

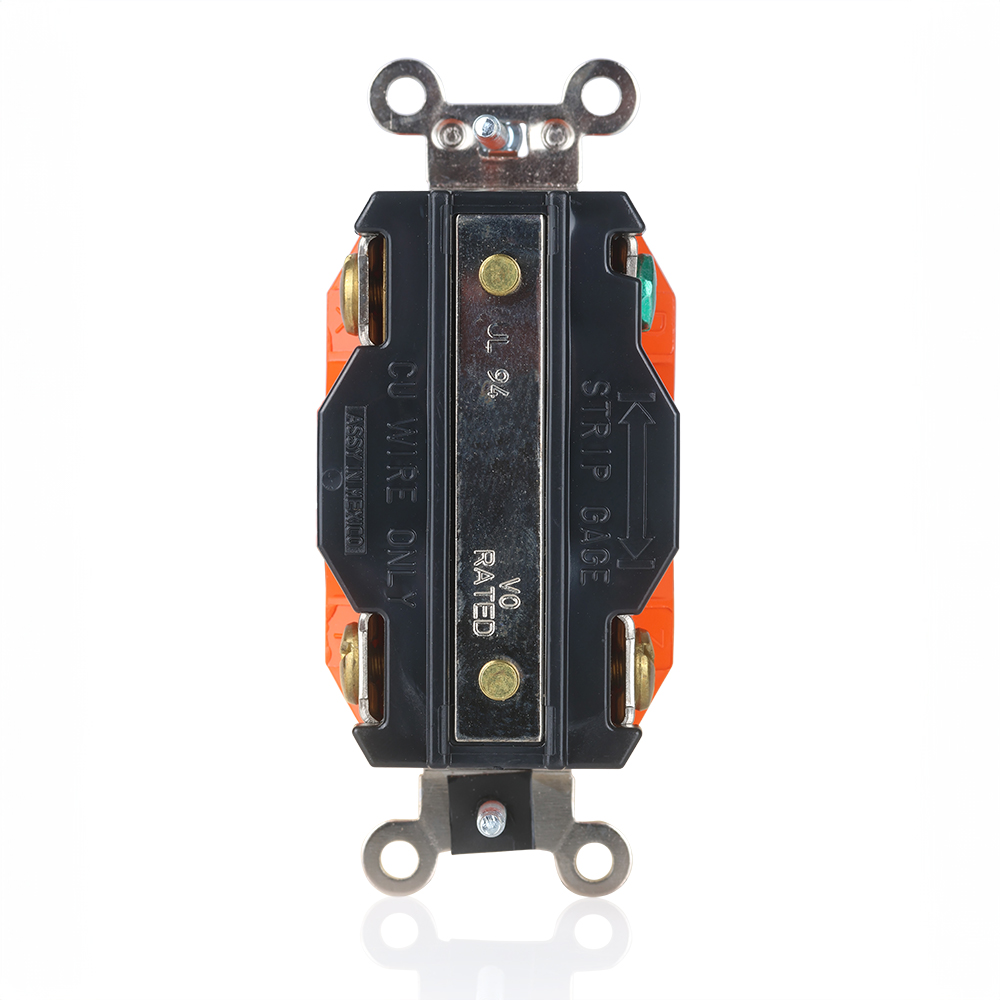

Image thumbnail 1
Image thumbnail 2

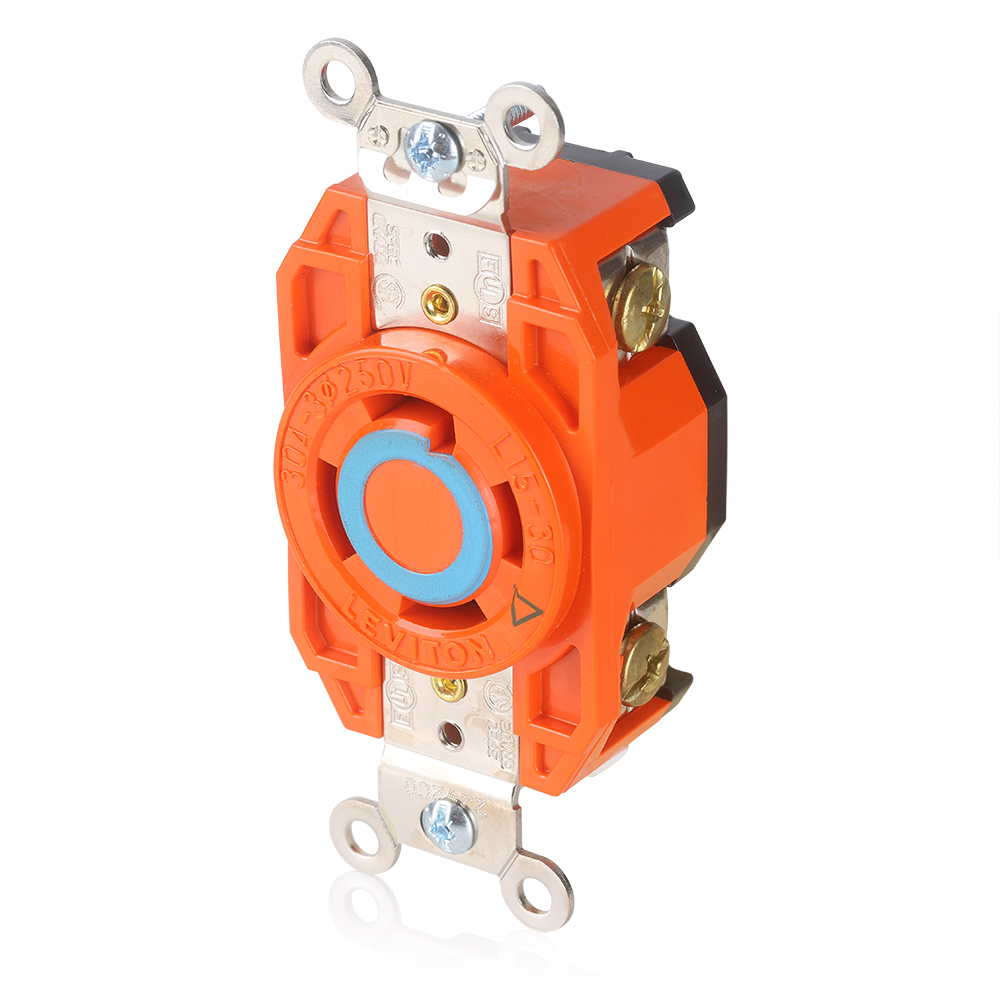

Image thumbnail 3

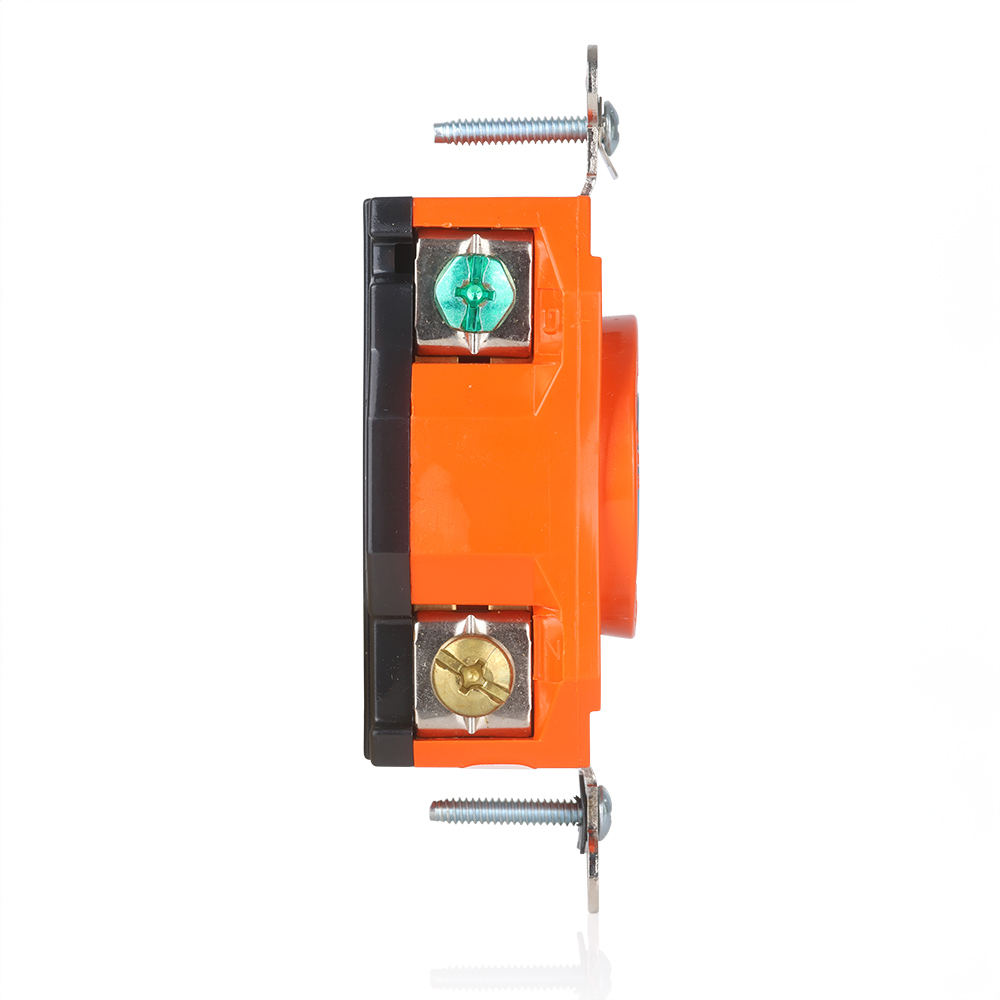

Image thumbnail 4
Email

LEV 2720-IG OR REC LOCK 3PO 4WI 3PH

Manufacturer: Leviton Mfg Co | Catalog # 2720-IG | Cooper Electric Part # 624801
$106.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE

Technical Information

Amperage
30 Amp
Applications
Commercial
Base Material
Valox,Valox
Body Material
Valox 357
Conductor Size
14-8 AWG
Connection Type
Back Wired,Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Valox
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Isolated Ground
Horsepower
3 hp
Insulation Material
Nickel-Plated Brass
Material
PBT, Valox Base/Cover/Face
Mounting Type
Box, Flush
NEMA
L15-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
250 Volt
Wattage
3 hp
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477809648
Color
Orange
Environment
Corrosive
Environmental Conditions
UL 94 V-0 Flammability, Corrosive Environment
GTiN
00078477809648
Product UPC
07847780964

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
NEMA
  • L15-30R
