HCI HBL2810SR2 LKG S/SHRD RCPT,L21-

Manufacturer: Hubbell Wiring Device | Catalog # HBL2810SR2 | Cooper Electric Part # 623294
$207.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

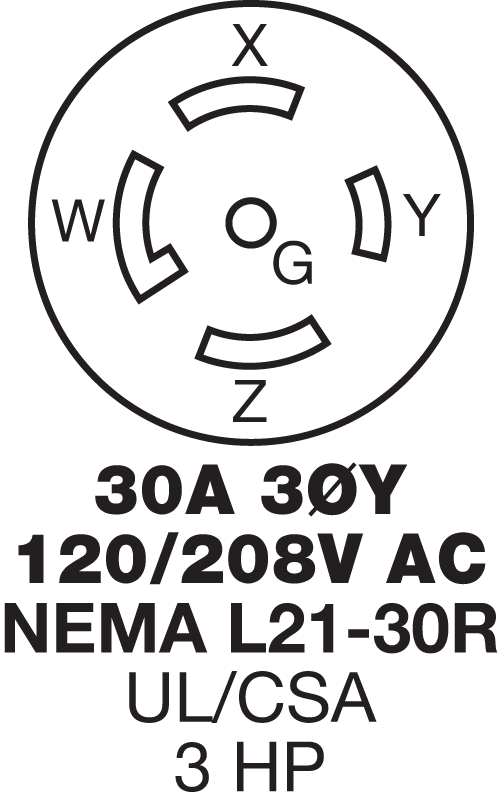

Locking Devices, Twist-Lock®, Safety-Shroud®, 2-Gang Semi Flush Receptacle, 30A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, NEMA L21-30R , Screw Terminal, Gray

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Gang Type
2
Grade
Industrial
Grounding
Grounding
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L21-30R
Number of Gangs
2 Gang
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Shrouded, Heavy Duty
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235080
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585235080
Product UPC
78358523508
Weight
0.65 lb

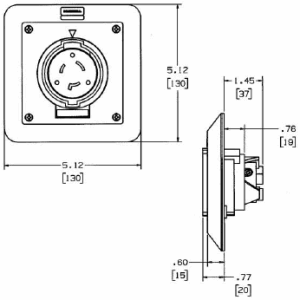

Dimensions

Height
2.22 Inch
Length
5.12 Inch
Width
5.12 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • 2-Gang Semi Flush
