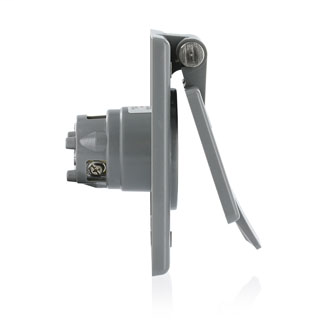

Product image for LEV 5479-CWP GY INLET FLNG/COVER WR
Email

LEV 5479-CWP GY INLET FLNG/COVER WR

Manufacturer: Leviton Mfg Co | Catalog # 5479-CWP | Cooper Electric Part # 623116
$96.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.

Technical Information

Amperage
20 Amp
Applications
Industrial
Body Material
Thermoplastic Glass Filled
Conductor Size
18-10 AWG
Connection Type
Standard Wire Well
Contact Material
Brass
Device Type
Straight Blade Flanged Inlet
Dielectric
1500 V
Dielectric Strength
2000 (Min.)
Face Material
Glass Filled,Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
FD Box,FS Box,Panel
NEMA
6-20R,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
1500 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
4.56 H x 2.84 W x 2.82 D IN
Standard
ANSI C-73
TC Connection
Standard Wire Well
Temperature Rating
-40 To 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Termination Type
Standard Wire Wells
Type
Flanged Outlet
Voltage
250 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477046135
Color
Gray,Gray
Environment
Dry
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94)
GTiN
00078477046135
Product UPC
07847704613

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
USA
