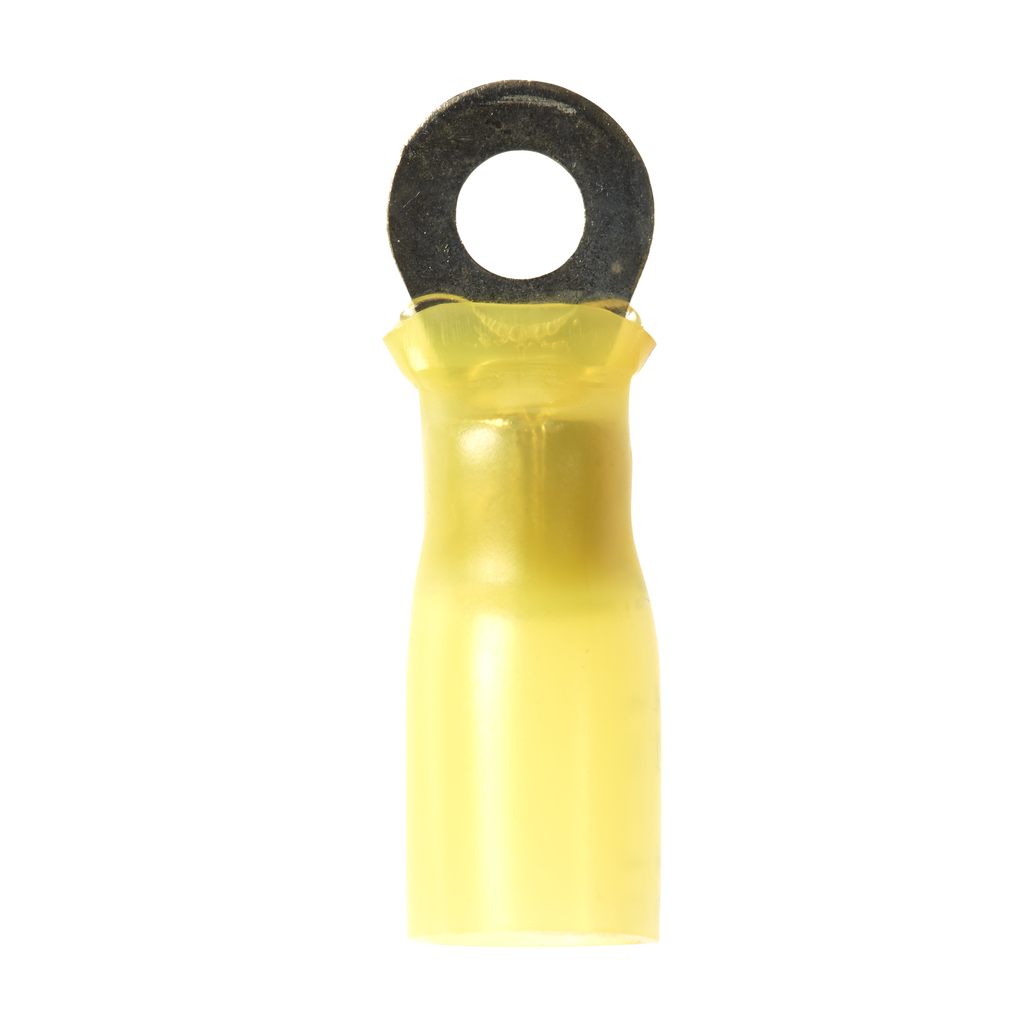

Product image for 3M Industrial Safety MH10-8RX 25/Bottle Ring Heat Shrink
Email

3M Industrial Safety MH10-8RX 25/Bottle Ring Heat Shrink

Manufacturer: 3M | Catalog # 7000133377 | Cooper Electric Part # 621983
$2.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
12-10 AWG
Insulation Material
Heat Shrink
Material
Heat Shrink
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
8
Terminal Size
12 - 10 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128588888
Color
Yellow
GTiN
00051128588888
Product UPC
05112858888

Dimensions

Length
1.1 Inch
Overall Length
1.1 in
Thickness
0.04 in
Width
0.38 in

Certifications and Compliance

Country of Origin
USA
Features
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
