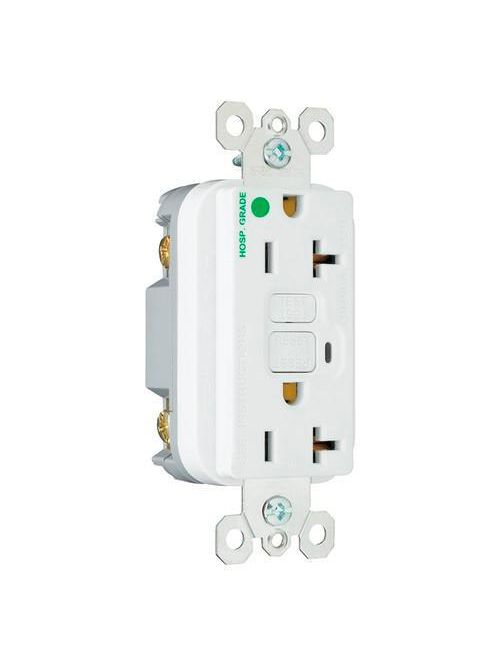

Product image for Pass & Seymour 2095-HGNAW 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Thermoplastic Duplex GFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 2095-HGNAW 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Thermoplastic Duplex GFCI Receptacle

Manufacturer: Pass & Seymour / Legrand | Catalog # 2095-HGNAW | Cooper Electric Part # 621866
$57.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. This GFCI meets the requirements of the Buy American provision of the American Recovery and Reinvestment Act and provides the same protection as our traditional GFCI.

Technical Information

Amperage
20 Amp
NEMA
5-20R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007007275
Color
White
GTiN
00785007007275
Product UPC
78500700727

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Supplied with matching TP26 nylon wall plate.
  • High-impact-resistant thermoplastic construction.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Class A rated GFCI.
  • Dual-direction test and reset buttons.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • For covering patents, see www.legrand.us/patents.
  • 10kA short circuit rating.
  • Trip indicator light (red LED).
  • Button colors match the device face.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Two back wire holes per terminal.
  • Ground screw has a back wire clamp for easy installation.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Extra-long strap.
  • Tri-drive screws.
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
Available Options
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Red
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Light Almond
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Brown
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Ivory
  • NAFTA-Compliant Hospital Grade 20A Duplex GFCI, Gray
