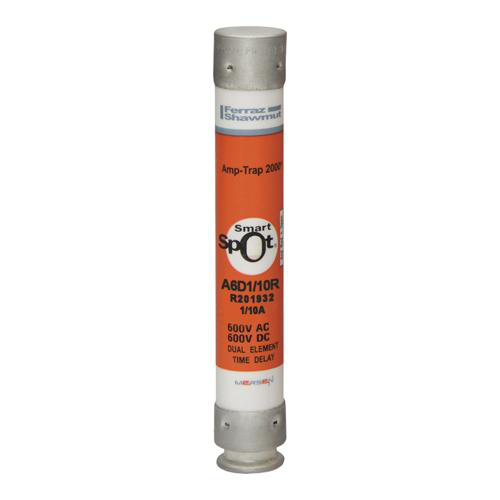

Product image for Mersen A6D1/10R 600V 1/10A RK1 TD F
Image thumbnail 0
Image thumbnail 1
Email

Mersen A6D1/10R 600V 1/10A RK1 TD F

Manufacturer: Mersen | Catalog # A6D1/10R | Cooper Electric Part # 617373
$44.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Amp-Trap 2000® time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A6D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A6D-R fuses can be used to replace older 600V Class H, K or RK5 fuses already installed in the field.

Technical Information

Amperage
0.1 Amp
Applications
For Motors, Safety Switches, Transformers, Disconnects, Control Panels, All General Purpose Circuits
Contact Material
Tin Plated Copper
Fuse Class
Class RK1
Insulation Material
PolyTube
Interrupt Rating
100, 200 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay, Current Limiting, Low Voltage
Voltage
600 VAC/VDC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001991524
Class
RK-1
Construction
Polyester
GTiN
30782001991525
Product UPC
78200199152
Weight
0.14 lb

Dimensions

Diameter
0.81 Inch
Length
5 Inch
Features
  • Solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush currents without nuisance opening
  • 600VAC & 600VDC dual rated
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Recommended for Arc Flash energy reduction
  • Easy 2-to-1 selectivity for prevention of nuisance shut downs and black outs
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label gives instant brand recognition
  • Reduced inventory by taking the place of class RK5, K, and H fuses
  • Metal-embossed date and catalog number for easier traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
Applications
  • Motors
  • Safety switches
  • Transformers
  • Branch circuit protection
  • Disconnects
  • Control panels
  • All general-purpose circuits
Approvals & Standards
  • UL listed to standard 248-12 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12
