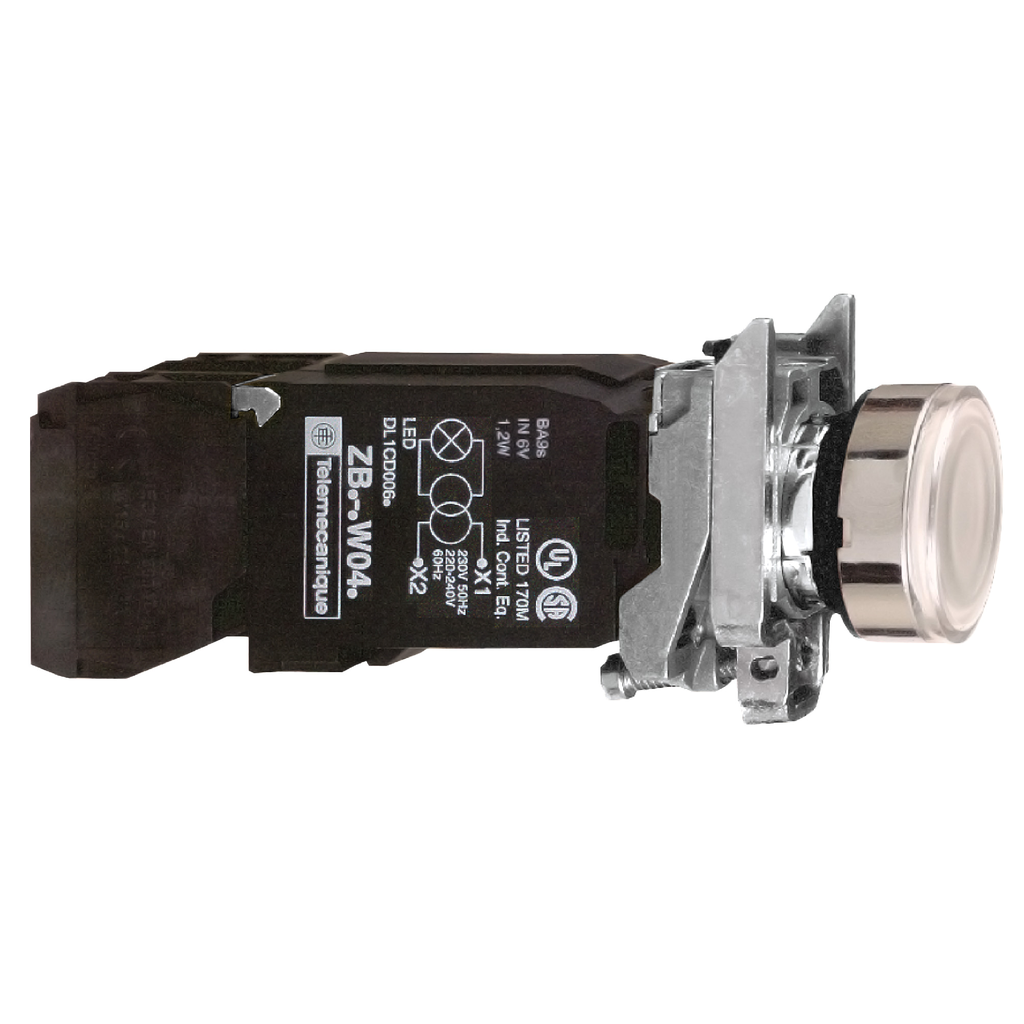

Square D XB4BW3135 22 mm 120 VAC 14 mA 1NO 1NC White Round Momentary Flush Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB4BW3135 | Cooper Electric Part # 616300
$179.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony XB4 plain lens illuminated modular white push button operates with a spring return / impulse mechanism, is supplied with 110V to 120V AC/DC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base and LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.

Technical Information

Action
Slow-break
Actuator
SPRING RETURN,WHITE FLUSH
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Bezel Material
Chromium Plated Metal
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
BA 9S,INCANDESCENT
Net Weight
0.169 kg
Operating Force
3.5 N NC changing electrical state;3.8 N
Operating Temperature
-40-55 degrees C
Size
3.98 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Illuminated push-button
Voltage
110...120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY XB4

General Product Info

12-Digit UPC
389110892119
Color
White
GTiN
03389110892116
Product UPC
78590138140
Weight
0.37 lb

Dimensions

Depth
101 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
Czech Republic
Compatible Products
  • ZBYLEG503001
Cross Sell Products
  • XBH1AA0R4
  • XB5KS2B4
  • ZBY9W2B330
Spare Part Products
  • ZB4BW31
  • ZB4BW035
  • ZBE101
  • ZBE1015
  • ZB4BZ009
