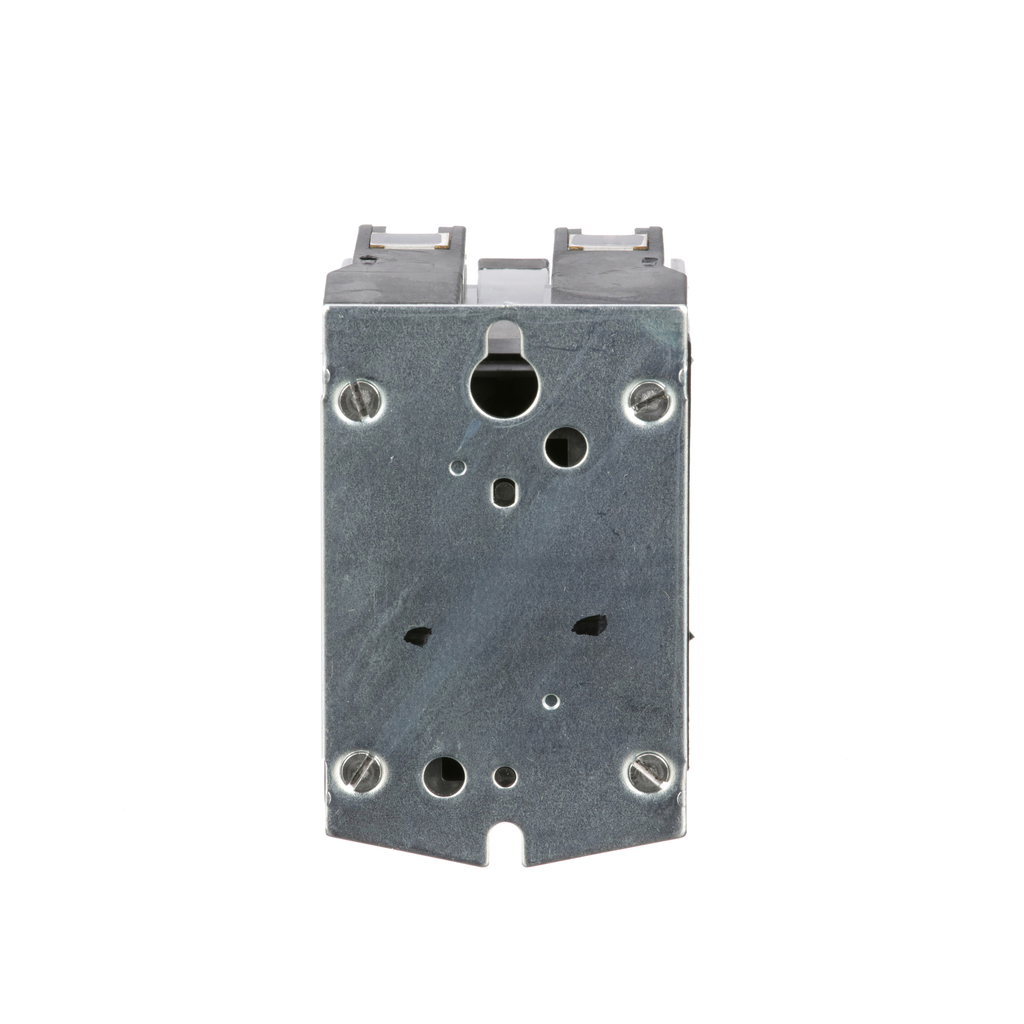

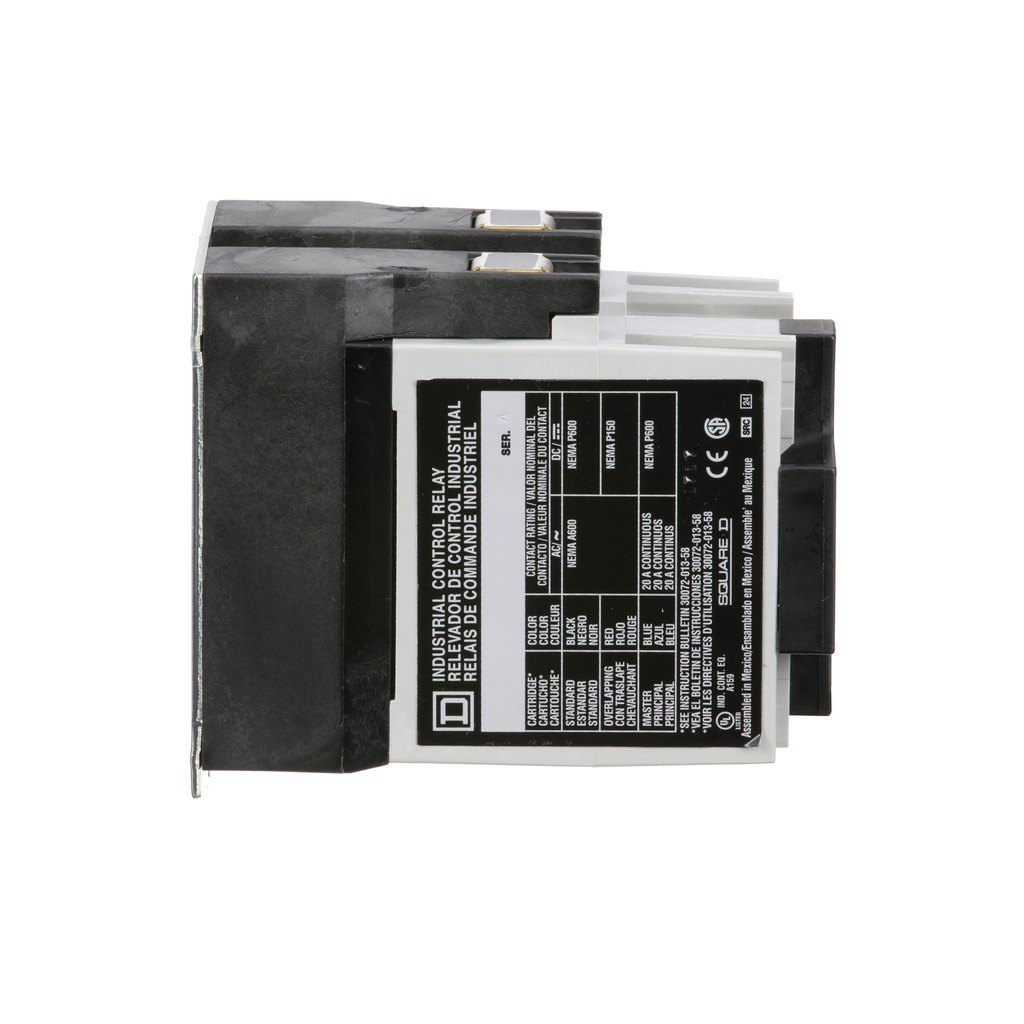

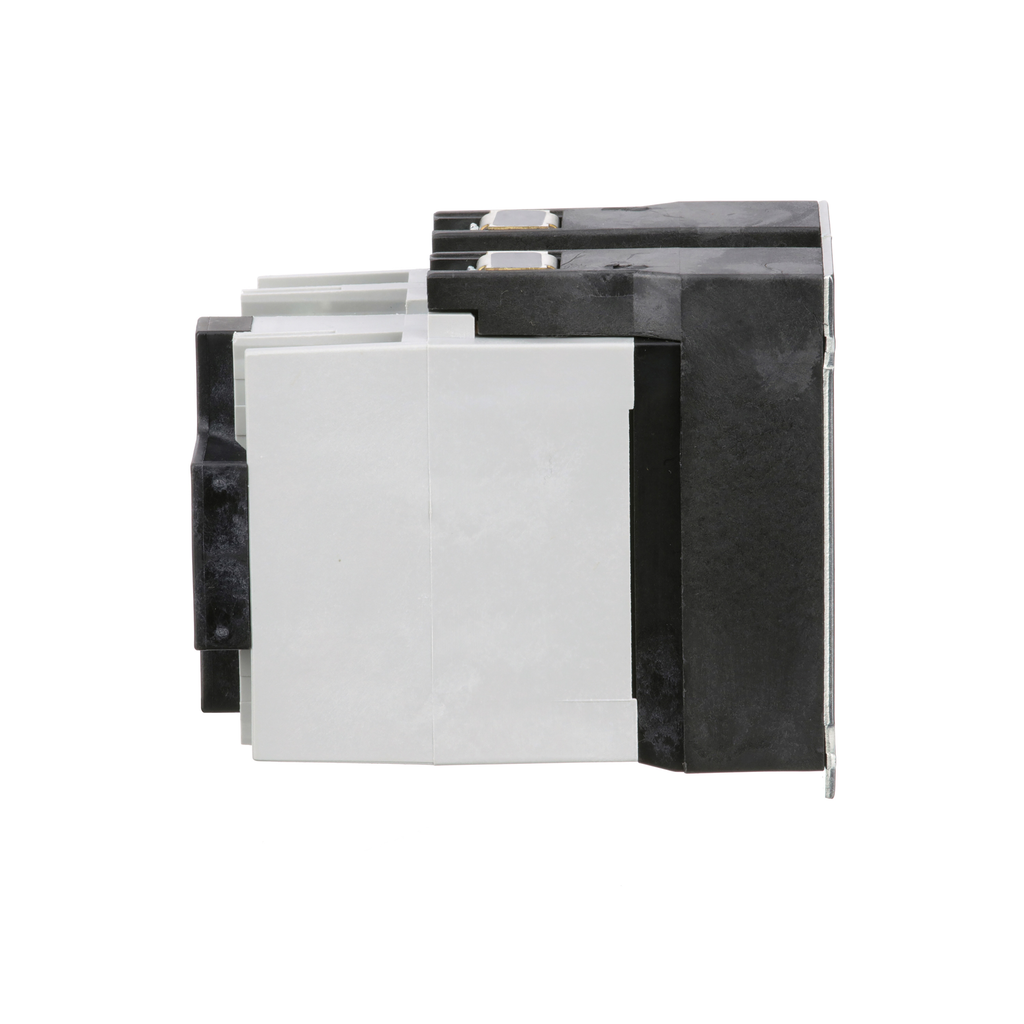

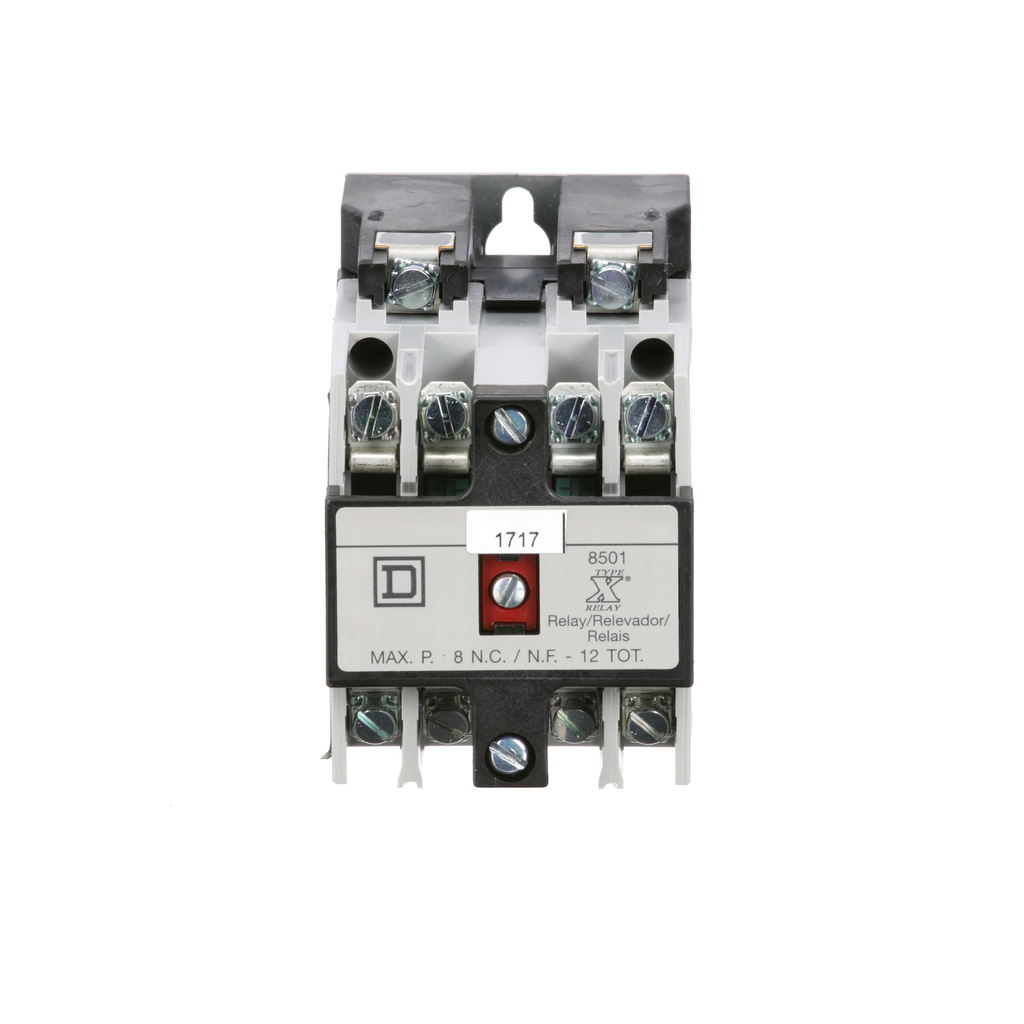

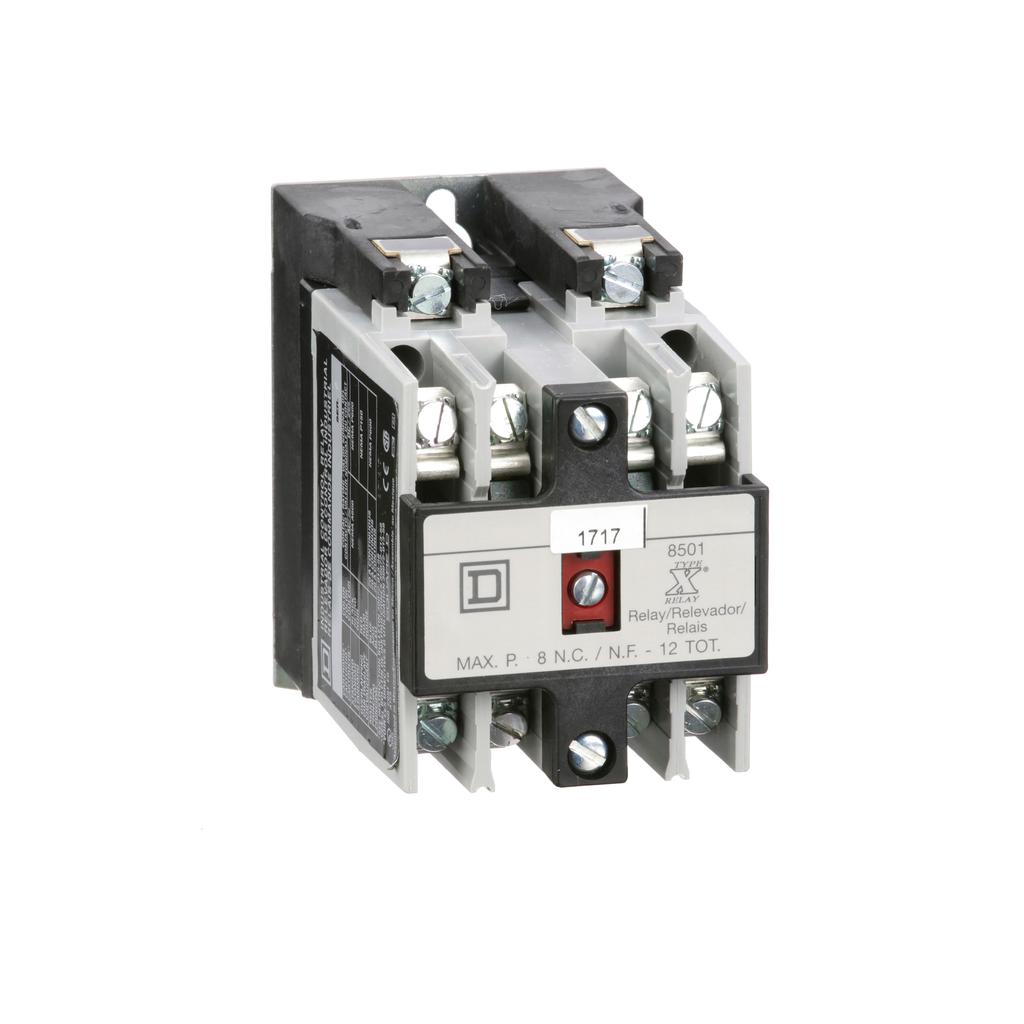

Square D 8501XO20V03 220/240 VAC 10/5 Amp 2-Pole 2NO Panel Mount AC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO20V03 | Cooper Electric Part # 616035
$256.28 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2
NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 2 normally open contacts, 220/240 VAC 50/60 Hz coil

Technical Information

Amperage
5-10 Amp
Coil Voltage
220 V AC 50 Hz;240 V AC 60 Hz
Contact Configuration
2 NO 2 standard contact cartridges
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Number of Poles
2 Pole
Operating Temperature
-40-160 Adegrees F
Range
8501X
Size
2.23 IN,3.5 IN,3.95 IN
TC Connection
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type
CONTROL,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901536987
GTiN
00785901536987
Product UPC
78590153698

Dimensions

Depth
3.95 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Inrush Power In VA
  • 148-148 VA 60 Hz
  • 143-143 VA 50 Hz
Contacts Type And Composition
  • 2 NO 2 standard contact cartridges
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operating Time
  • 15 ms - pick-up
  • 16 ms - drop-out
UC Control Circuit Voltage
  • 220 V AC 50 Hz
  • 240 V AC 60 Hz
ICM Rated Short Circuit Making Capacity
  • 60 A 120 V AC inductive control circuit UL 508
  • 60 A 120 V AC induc
Accessories
  • 8501XC1
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XTE1
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Line Rated Current
  • 10 A AC
  • 5 A DC
Accessory Products
  • 8501XC1
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XTE1
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Tightening Torque
  • control circuit 1.02-1.36 N.m screw terminals
AWG Gauge
  • AWG 18...AWG 12 copper
Control Circuit Voltage Limits
  • operational 0.85...1.1 Uc AC 50/60 Hz
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Hold In Power Consumption In VA
  • 23-23 VA 60 Hz
  • 25-25 VA 50 Hz
Rated Breaking Capacity
  • 6 A 120 V AC inductive control circuit UL 508
  • 6 A 120 V AC inductive c
