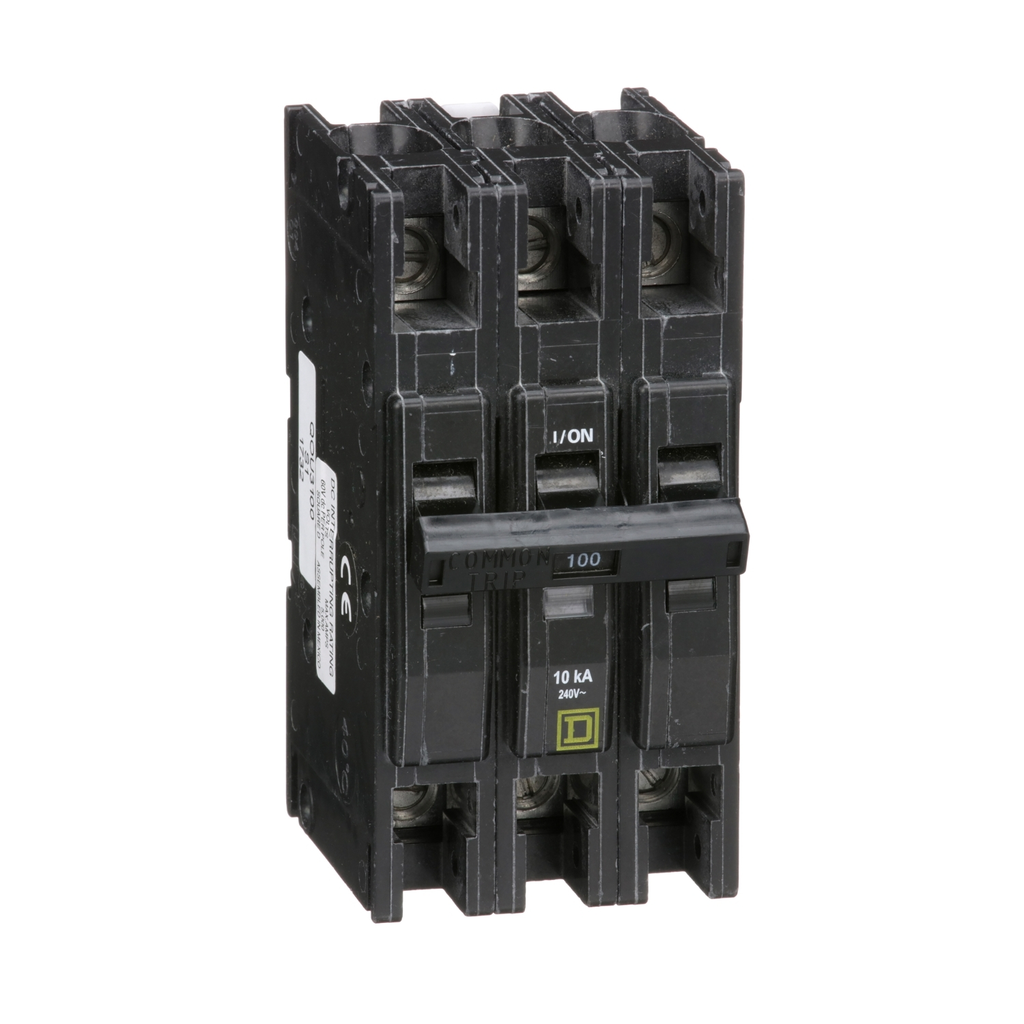

Square D QOU3100 240 Volt 100 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QOU3100 | Cooper Electric Part # 61557
$416.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QO™ and QOU Miniature Circuit Breakers, QOU3100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Completed with mounted foot as accesory.

Technical Information

Amperage
100 Amp
Applications
QOU
Circuit Breaker Type
Standard
Interrupt Rating
10 kAIC
Line Rated Current
100 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
Short Circuit Current
10 kA
TC Connection
LINE: BOX LUG - LOAD: BOX LUG #12-2/0 AWG(AL/CU)
Type
Miniature circuit-breaker
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QOU

General Product Info

12-Digit UPC
785901060338
GTiN
00785901060338
Product UPC
78590106033

Dimensions

Depth
2.95 Inch
Height
4.45 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
2.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • BCV
  • QOUMF3B
  • QOUHFSC1
