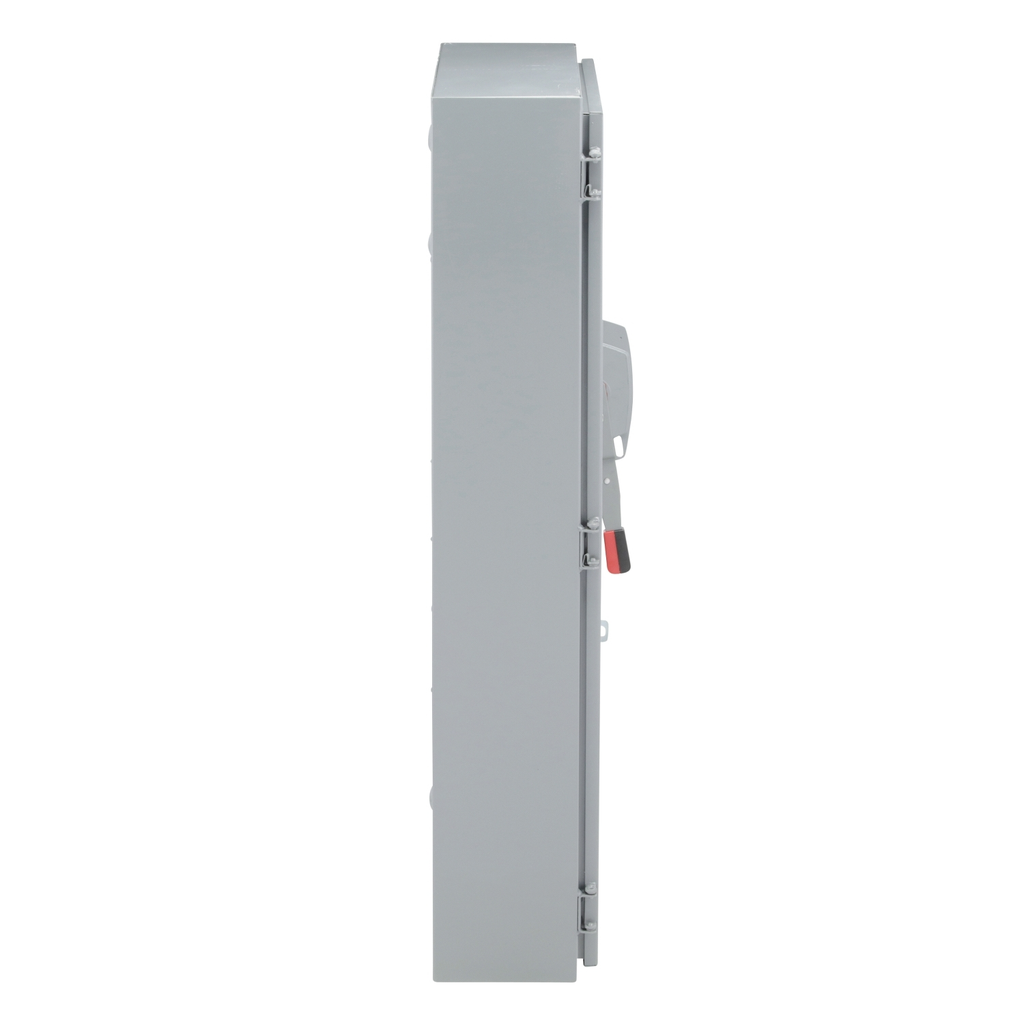

Square D HU365 600 VAC 400 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU365 | Cooper Electric Part # 61451
$2,804.00/ea
ea
Log in or register to view your price, purchase history, and more!
Fusible Non-Fusible
2P 3P
2-Wire 3-Wire 4-Wire
Type 1 Indoor Type 3R Rainproof
30 60 100 200 400 600
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
4 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 200A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

Technical Information

Amperage
400 Amp
Applications
HEAVY DUTY
Conductor Size
1/0 AWG-750 kcmil
Current
400 Amp
Duty Rating
Heavy duty
Enclosure
1
Enclosure Material
Steel
Enclosure Rating
1
Line Rated Current
400 A
Material
Steel
Mounting Type
Surface
NEMA Size
1
Net Weight
77.1 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Size
10.13 in
TC Connection
Lugs
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Size
AWG 1/0...750 kcmil copper or aluminium
Wire Type
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901787303
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901787303
Product UPC
78590178730
Weight
77.1 kg

Dimensions

Depth
10.13 Inch
Height
50-1/4 Inch
Warranty Length
18 mth
Width
27.63 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • EIK40601
  • EIK40602
  • H600SN
  • PKOGTA2
Compare
