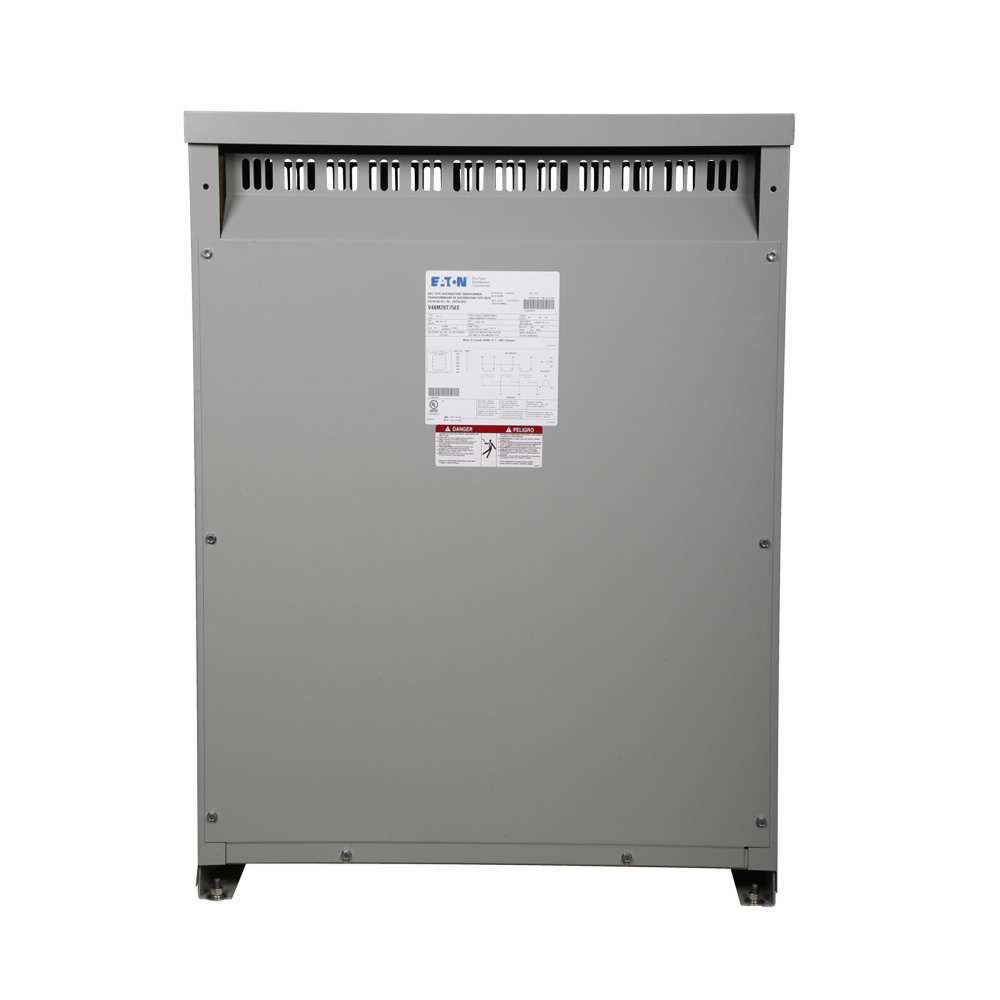

Product image for Cutler-Hammer V48M28T30 General purpose ventilated transformer, Dry Type Distribution, DT-3, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 150?C, 30 kVA, Al windings , Fr
Image thumbnail 0

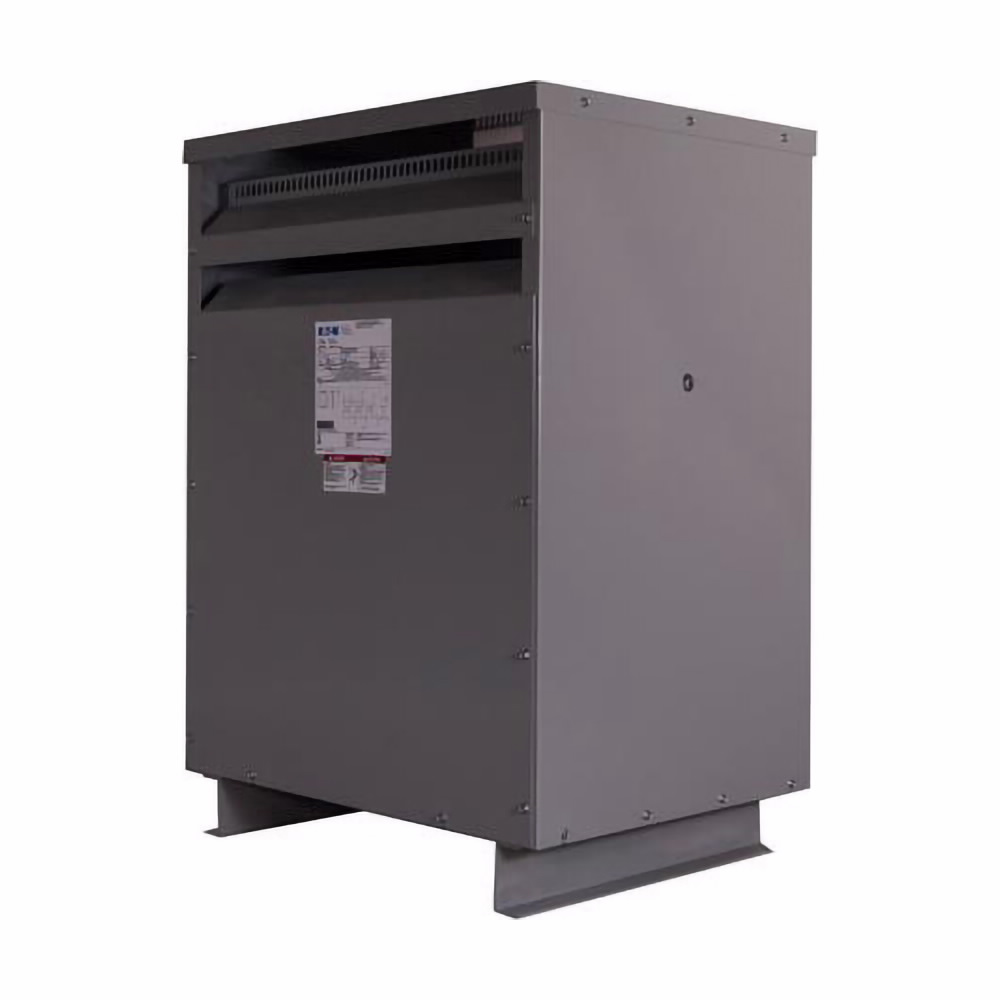

Image thumbnail 1

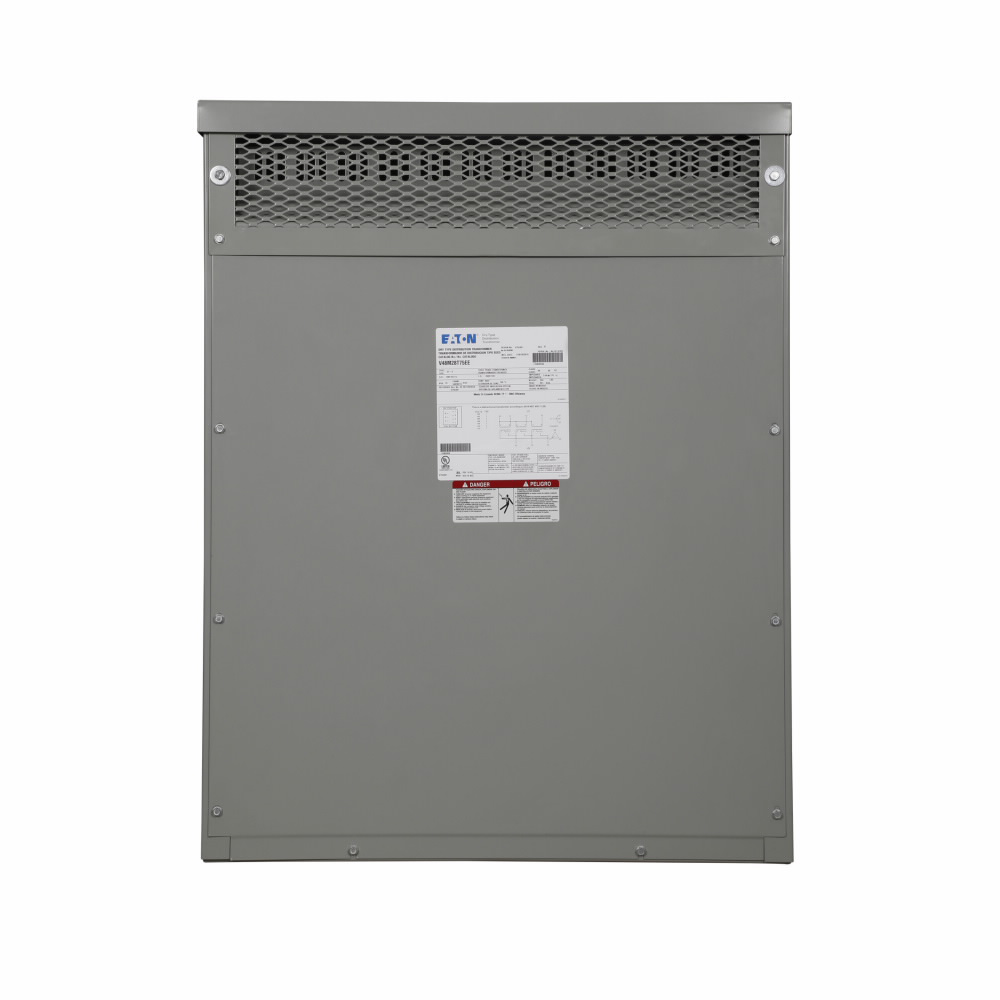

Image thumbnail 2

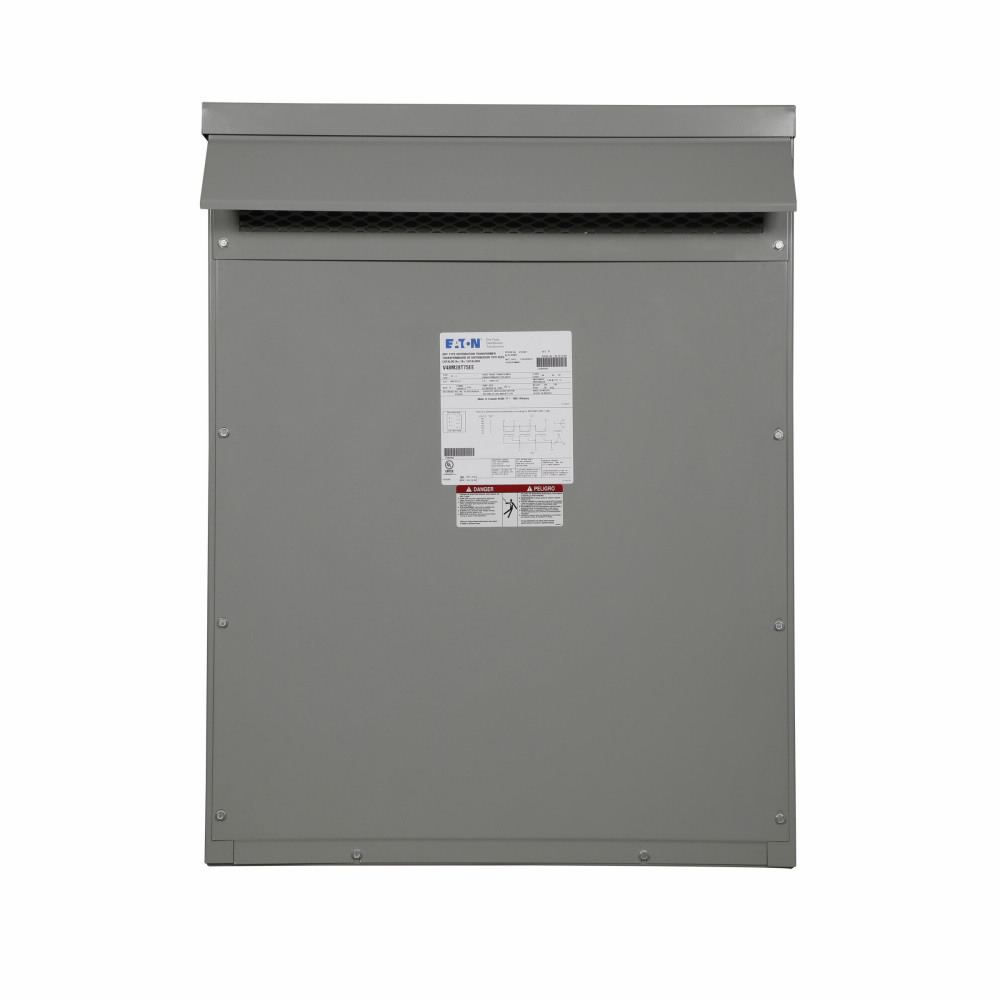

Image thumbnail 3

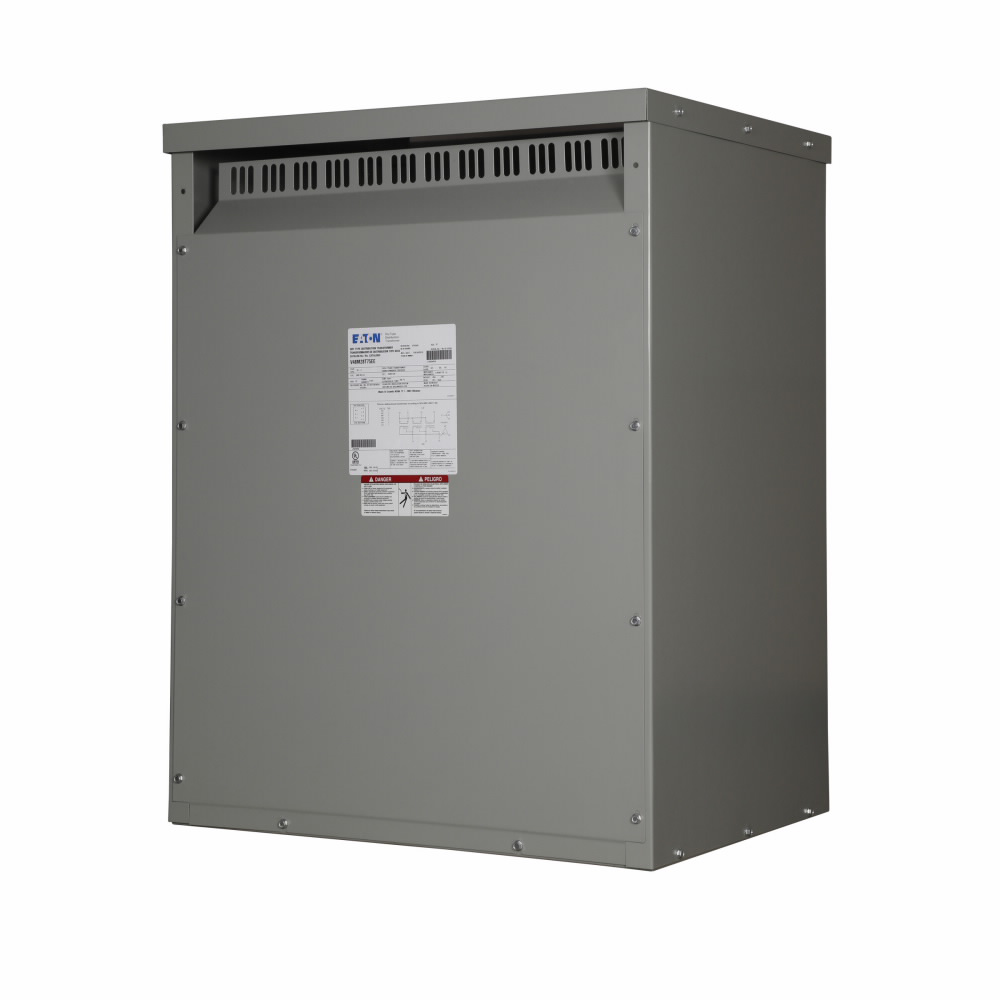

Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Cutler-Hammer V48M28T30 General purpose ventilated transformer, Dry Type Distribution, DT-3, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 150?C, 30 kVA, Al windings , Fr

Manufacturer: Cutler-Hammer / Eaton | Catalog # V48M28T30 | Cooper Electric Part # 61129
$3,604.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton General purpose ventilated transformer, Dry Type Distribution, DT-3, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 150.C, 30 kVA, Al windings , Frame: 912B, uses WS38.,

Technical Information

Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Coil Material
Aluminum
Frame
912 B
Frequency
60 Hz
Number of Phases
3 Phase
Primary Voltage
480 V
Secondary Voltage
120 V
Standard
UL
Tap Size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Temperature Rating
150 degrees C
Type
Distribution,Dry Type
Voltage
480 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786680035289
GTiN
00786680035289
Product UPC
78668003528
Weight
258 lb

Dimensions

Height
32.02 Inch
Length
16-1/2 Inch
Width
23 in
