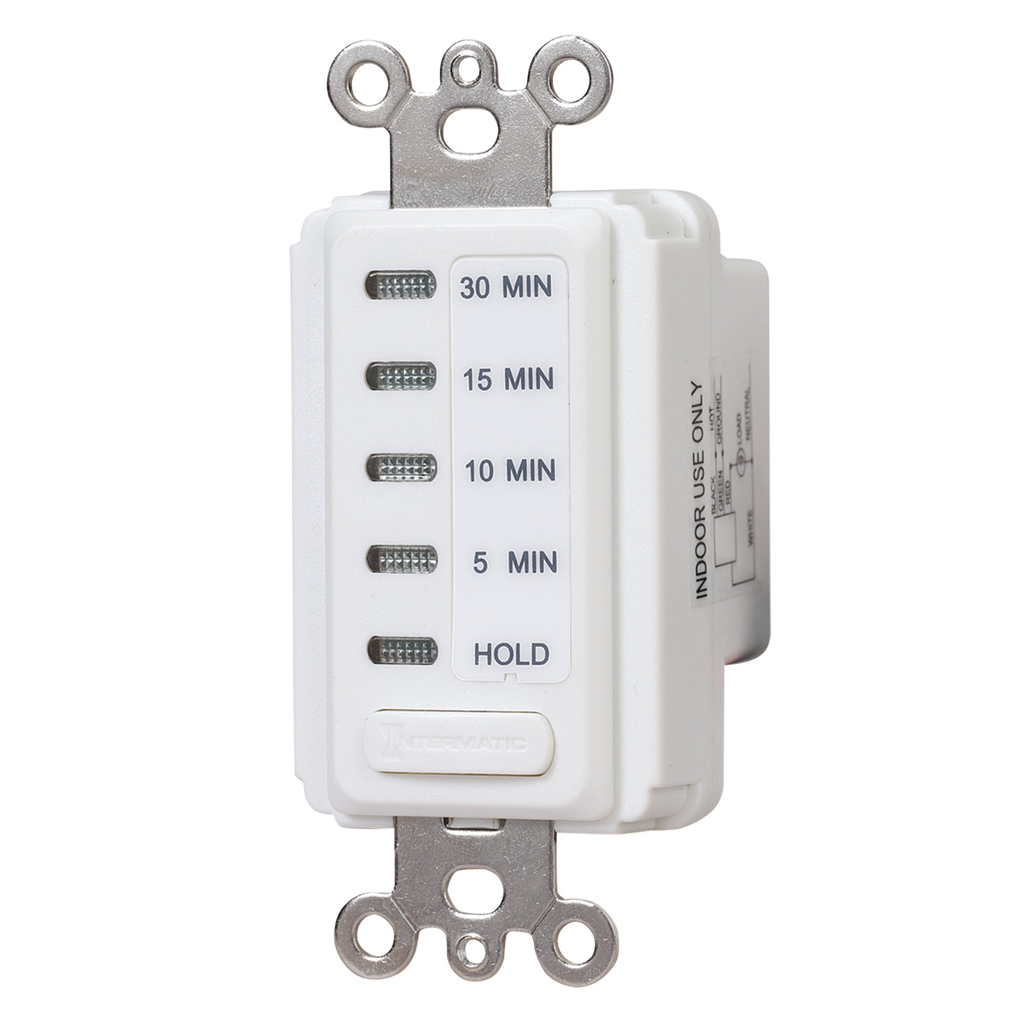

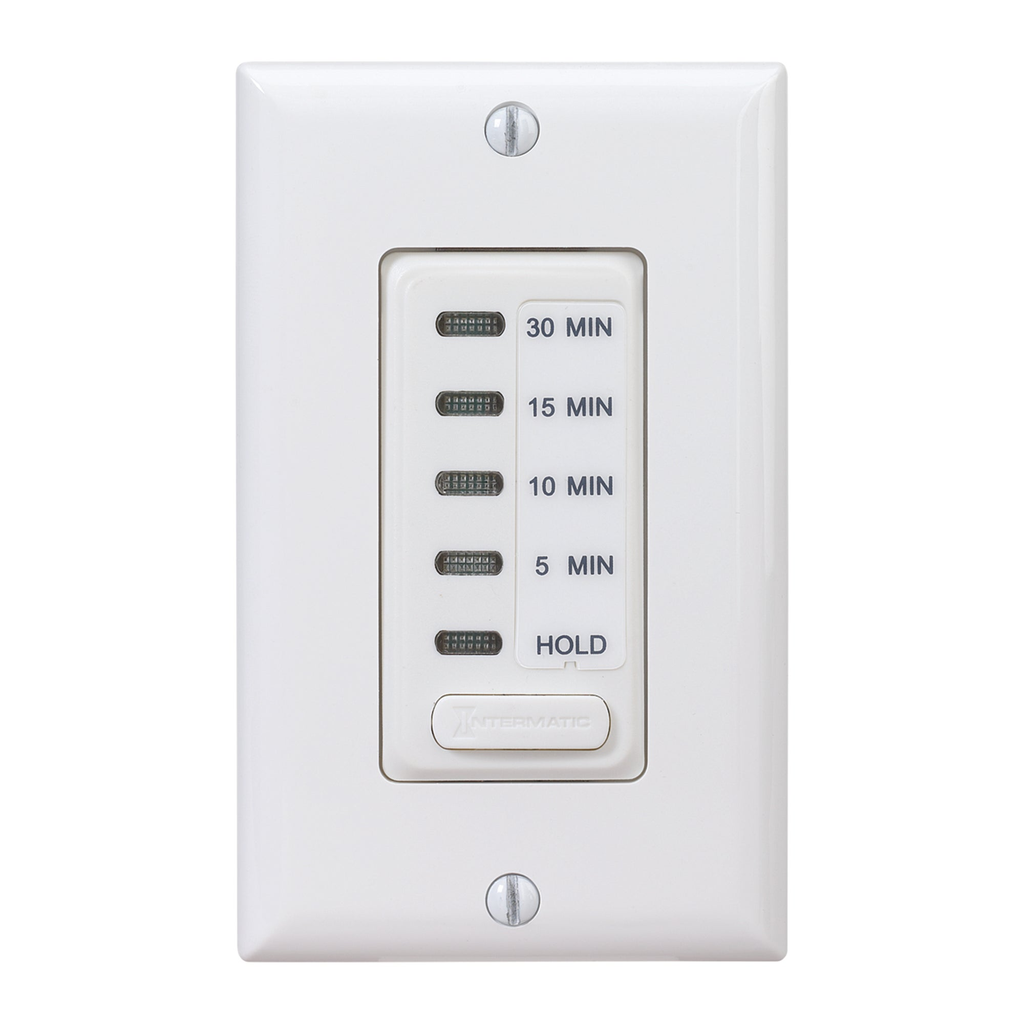

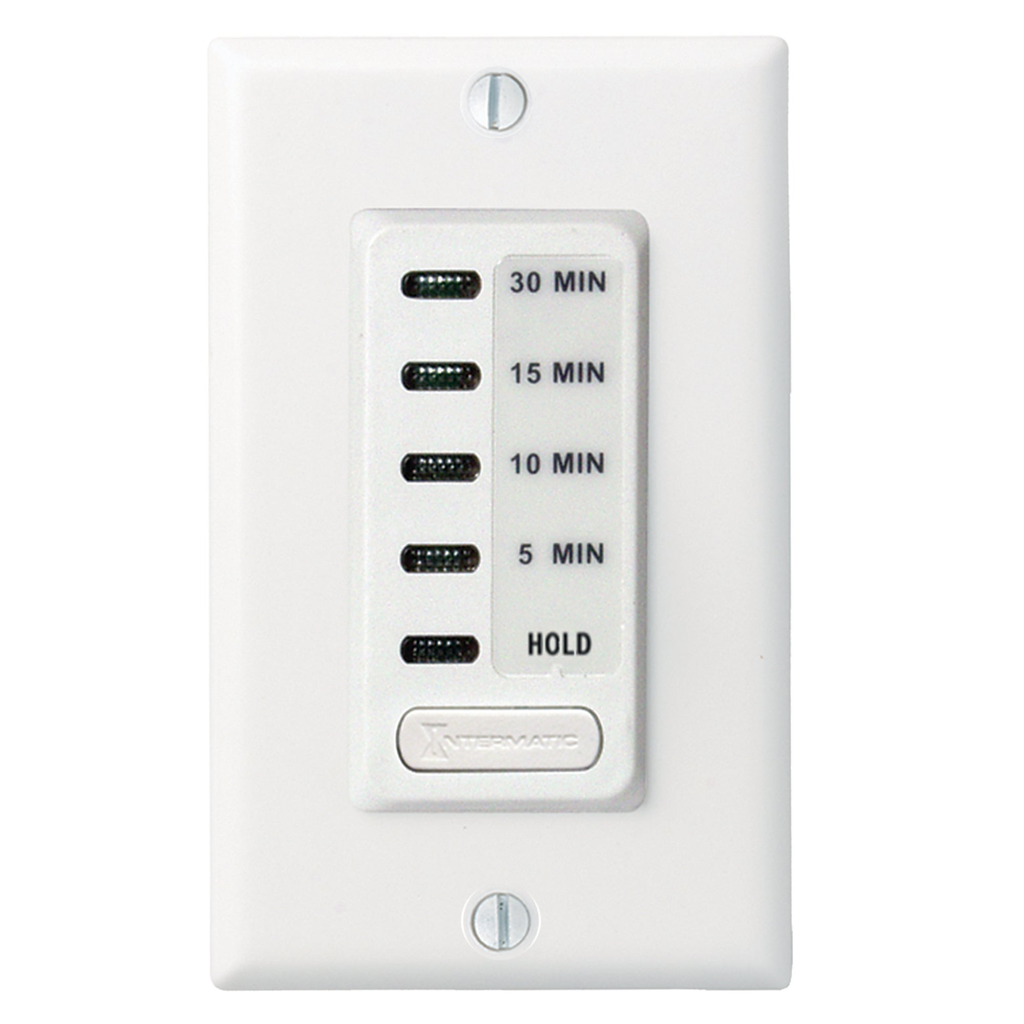

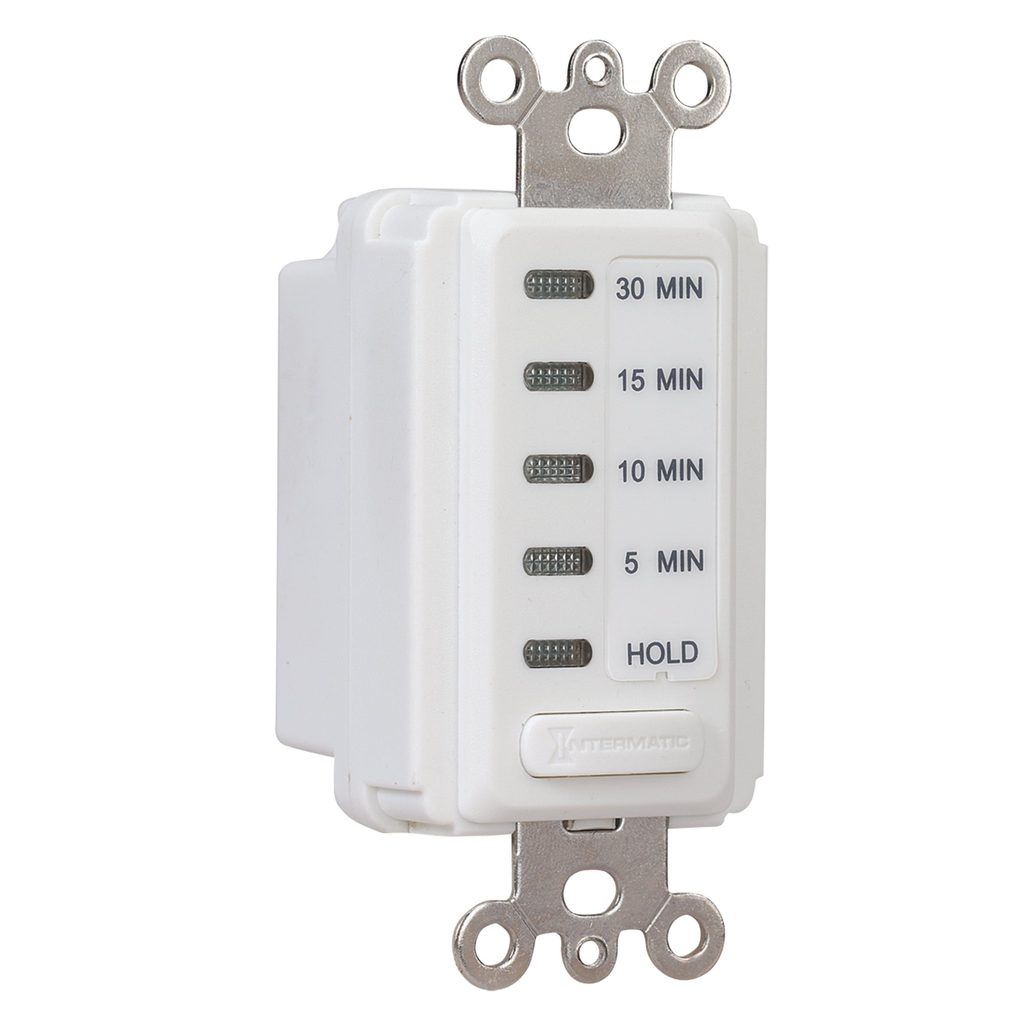

Intermatic EI200W 5/10/15/30 Minute 120 VAC 60 Hz 1-Pole White Electronic Auto-Off Timer with Hold

Manufacturer: Intermatic, Inc | Catalog # EI200W | Cooper Electric Part # 61109
$113.48/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Ocean Opens Monday 7:00am ET
9 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Contact Configuration
SPST - 1 NO
Contact Rating
8.3 A at 120 VAC (Tungsten-Incandescent), 15 A at 120 VAC (Resistive-Heater), 8 A at 120 VAC (Ballast-Magnetic), 1800 W
Frequency
50/60 Hz
Input Voltage
120 V
Material
Thermoplastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Standard
CULus Listed,HVACR
Temperature Rating
32 - 122 degrees F
Type
Electronic, Countdown, Auto Shut-Off, 1-Pole
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275095199
Color
White
GTiN
00078275095199
Product UPC
07827509519

Dimensions

Depth
1.438 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.688 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
China
Features
  • No programming required
  • Provides silent operation in time ranges from five minutes to 30 minutes
  • Single-button time selection, with some models having a HOLD mode, for continuous ON operation
  • Replaces single-pole switches in a variety of applications
  • Incandescent/fluorescent/CFL/LED compatible
  • For use with decorator-style wall plate (not included)
  • Requires neutral connection
  • NA
