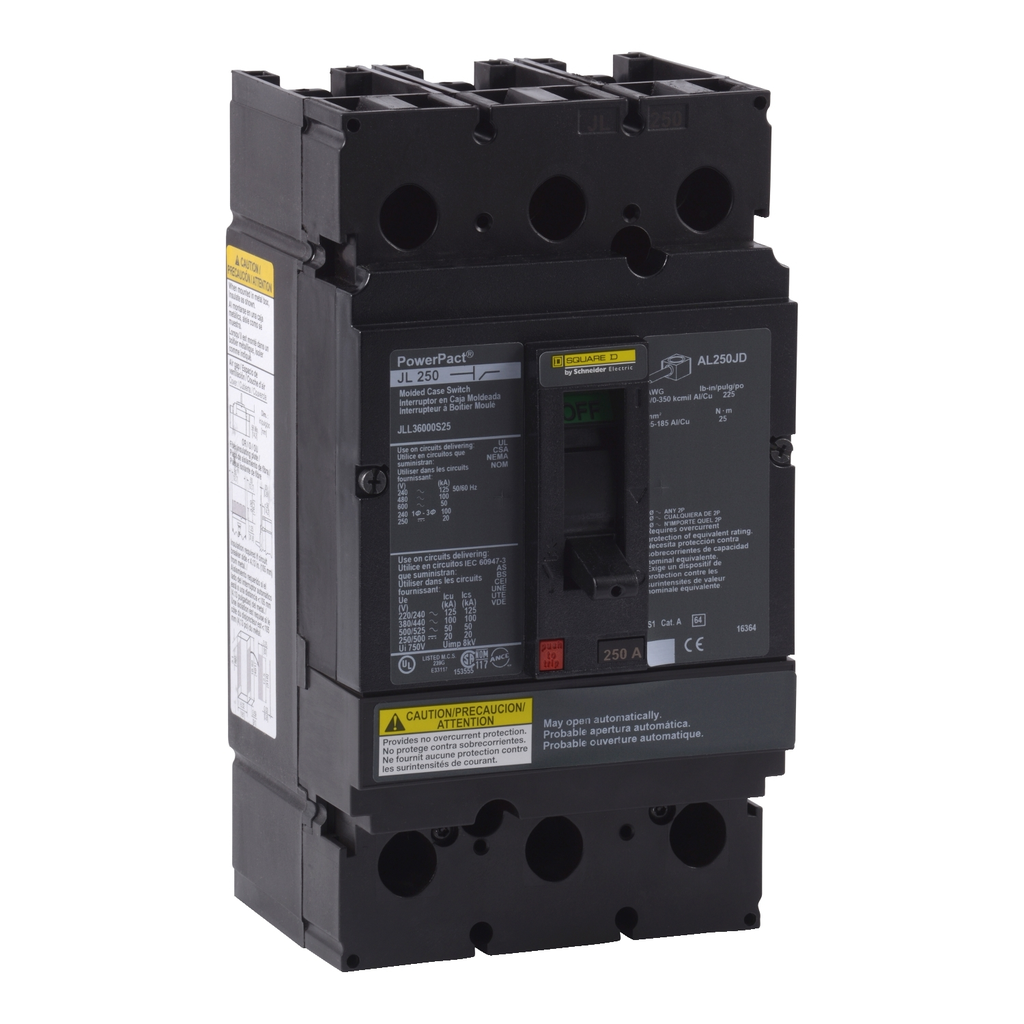

Square D JLL36000S25 3-Pole 250 Amp 600 Volt Automatic Molded Case Switch

Manufacturer: Square-D / Schneider | Catalog # JLL36000S25 | Cooper Electric Part # 610983
$2,475.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL and CSA standards.

Technical Information

Amperage
250 Amp
Applications
MOLDED CASE SWITCHES ARE INTENDED FOR USE AS DISCONNECT DEVICES ONLY.
Contact Configuration
LINE/LOAD LUG TERMINALS
Line Rated Current
250 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
Size
2.74 IN,5 IN,7.52 IN
TC Connection
FEED-THRU
Trip Point
3125-3125 A
Type
Automatic switch
Voltage
250 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901883814
GTiN
00785901883814
Product UPC
78590188381

Dimensions

Depth
5 Inch
Height
7.52 Inch
Length
5 Inch
Warranty Length
18 mth
Width
2.74 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CE,CSA,IEC,NMX,UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • S29450
