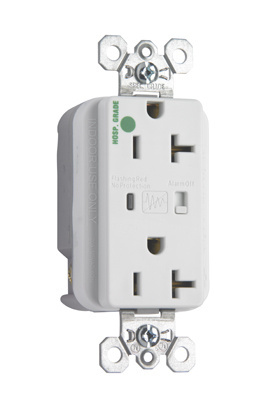

Product image for Pass & Seymour 8300-WSP Hospital Grade Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - White
Email

Pass & Seymour 8300-WSP Hospital Grade Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - White

Manufacturer: Pass & Seymour / Legrand | Catalog # 8300WSP | Cooper Electric Part # 61098
$61.63/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
21 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual Product Brochure
Hospital Grade Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 20amp 125volt, Blue.

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Grade
Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.70 L x 1.25 W x 3.75 H In
TC Connection
Back and side wire
Temperature Rating
Operating Temperature: -20degrees C to +55degrees C (-4degrees F to 131degrees F), Storage Temperature: -40degrees C to +85degrees C (-40degrees F to 185degrees F)
Type
TVSS
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007194548
Class
IG
Color
White
GTiN
00785007194548
Product UPC
78500719454
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
2.8 Inch
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
  • Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
