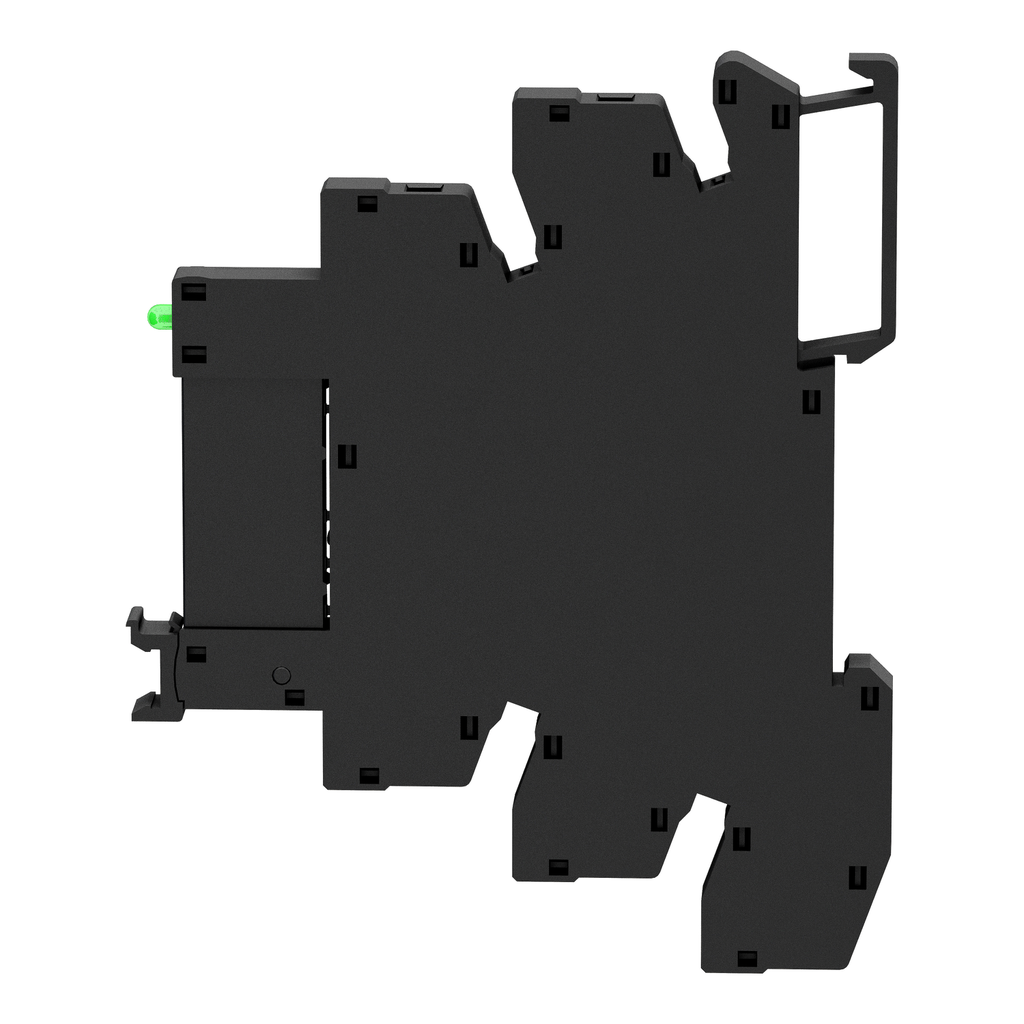

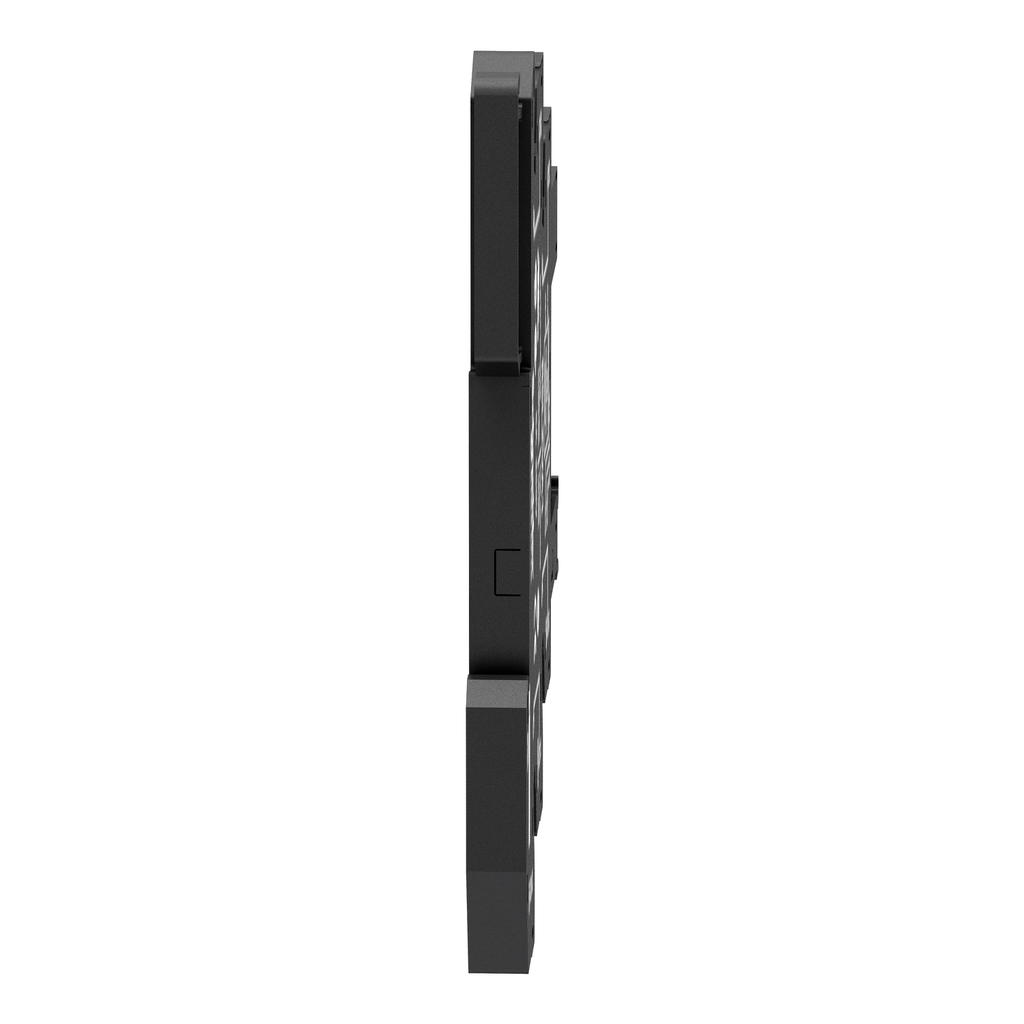

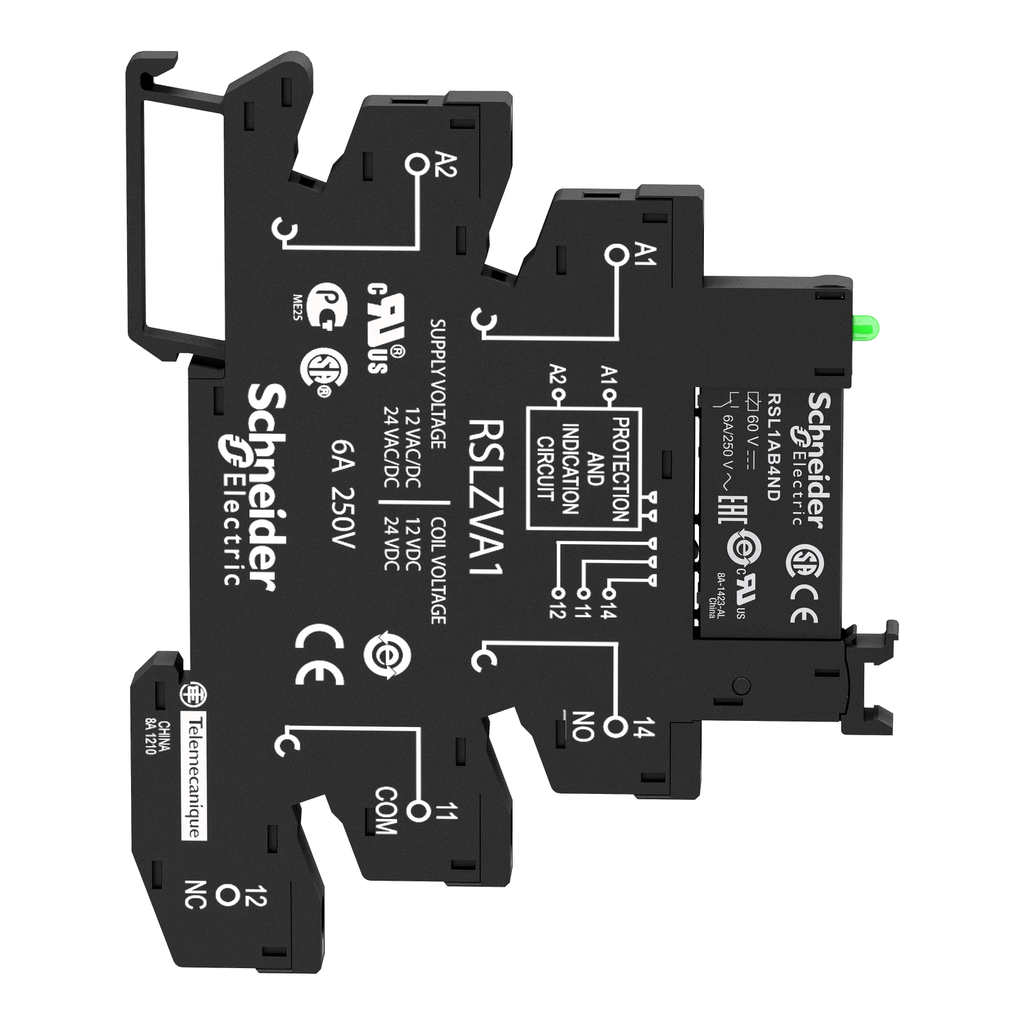

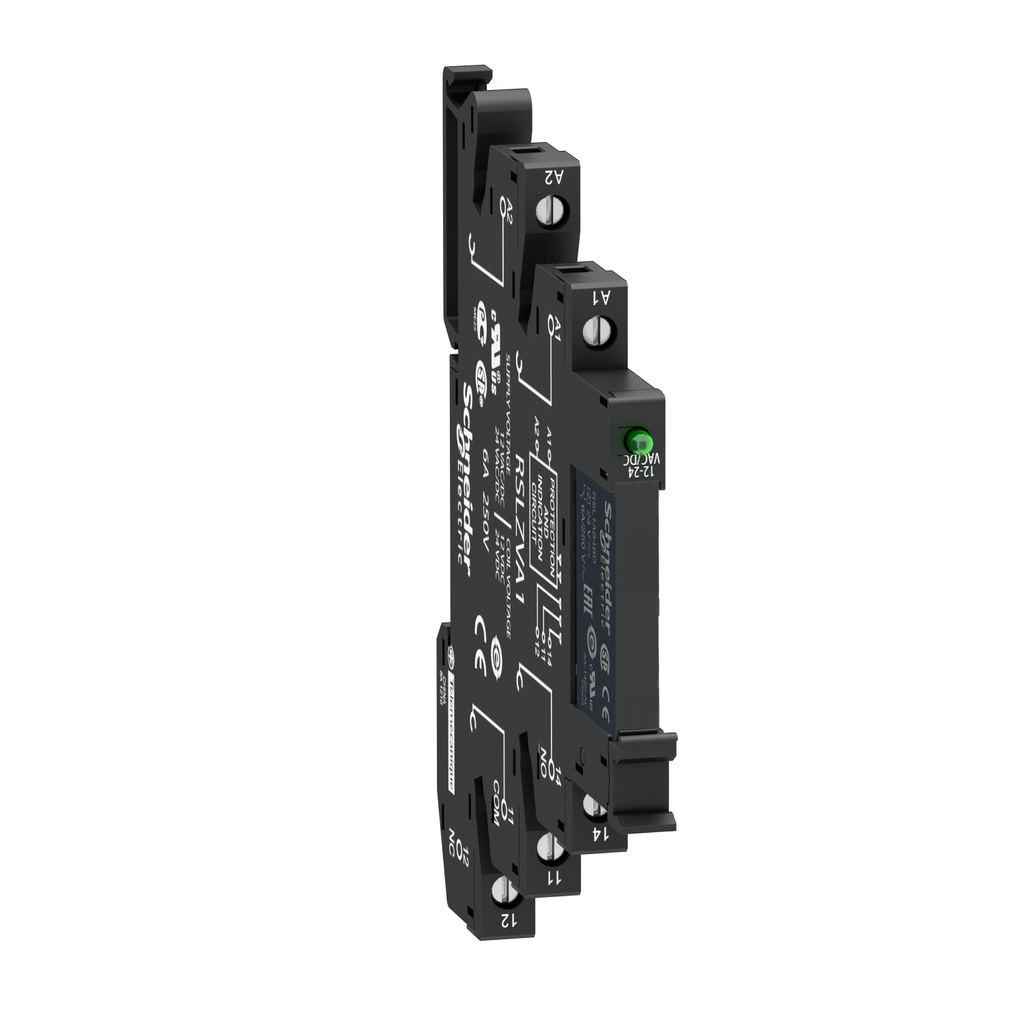

Square D RSL1PVBU 24 VAC/VDC 6 Amp 1NO 1NC Din Rail/Socket Mount Slim Interface Relay

Manufacturer: Square-D / Schneider | Catalog # RSL1PVBU | Cooper Electric Part # 609685
$21.02/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
87 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
6 Amp 1 C/O AC-1/DC-1)IEC/UL,6 Amp 250 V AC 0.5 MM MOUNTING DISTANCE
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Dielectric Strength
1000 V
Enclosure
IP40
Input Voltage
21.6-28.8 V
Line Rated Current
6 A
Net Weight
0.029 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 360 Cycles/hour Under Load
Operating Temperature
-40-55 degrees C
Resistance
3390 OHM (DC) AT 23 C +/- 10
Size
3.74 in
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
SCREW CONNECTORS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW CONNECTORS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) SOLID WITHOUT CABLE END
Type
Pre-assembled plug-in relay with socket;Flat (PCB type)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSL

General Product Info

12-Digit UPC
606480077831
GTiN
03606480077838
Product UPC
78590161774
Weight
0.029 kg

Dimensions

Depth
95 mm
Height
78.6 mm
Warranty Length
18 mth
Width
6.2 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,GOST,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
