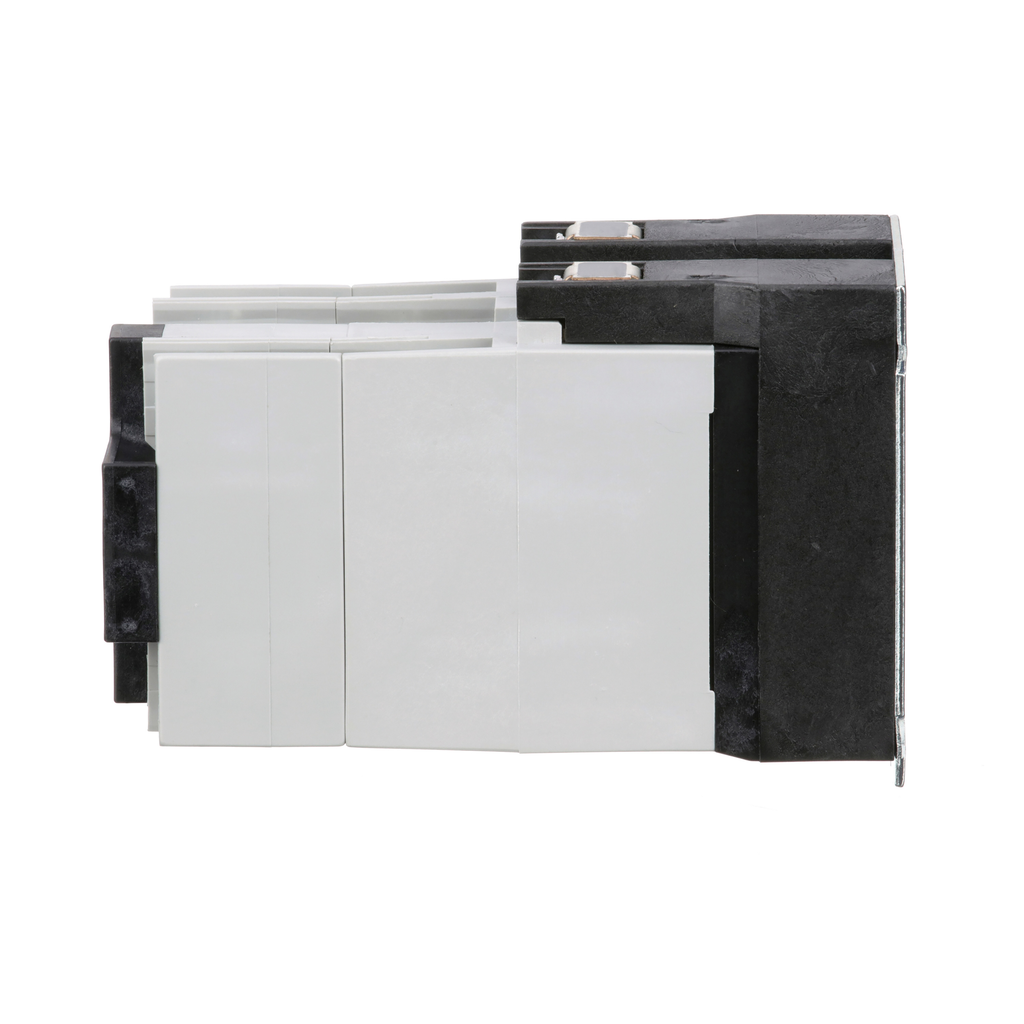

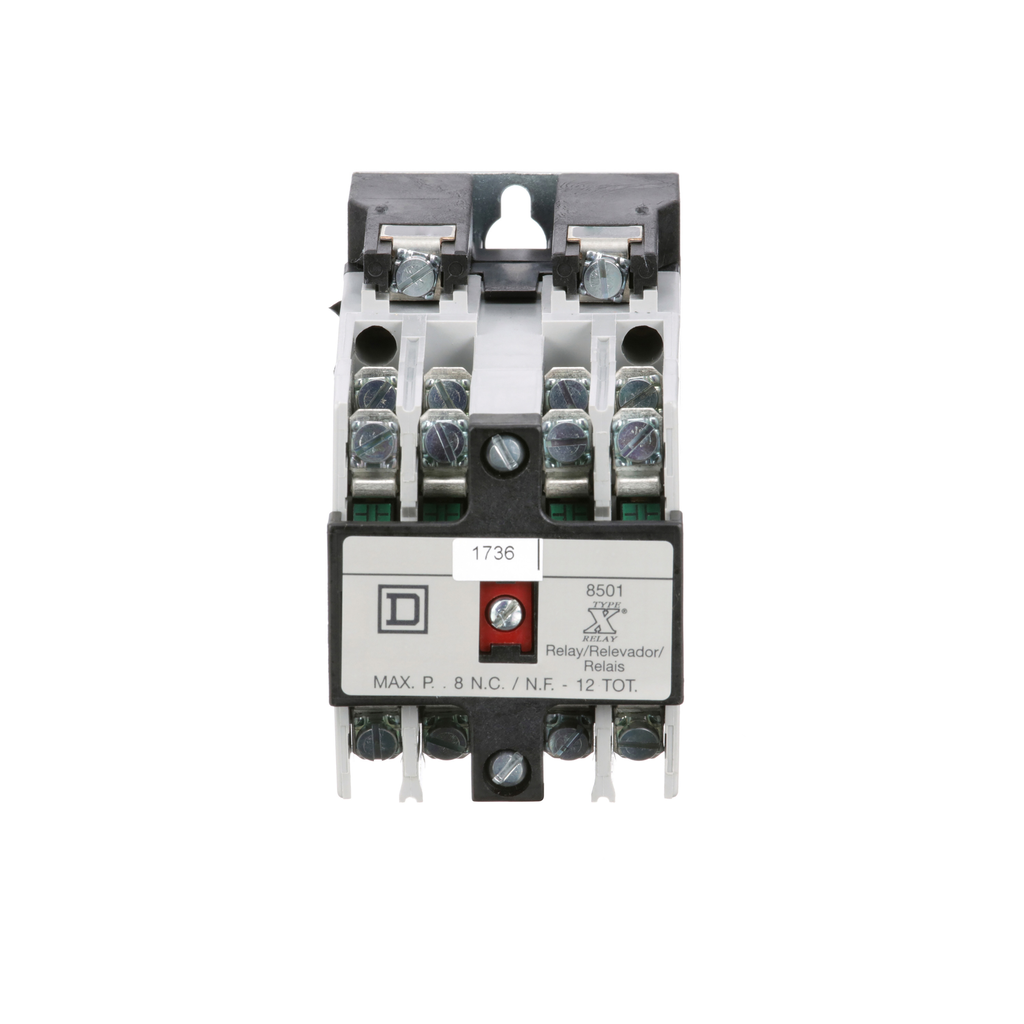

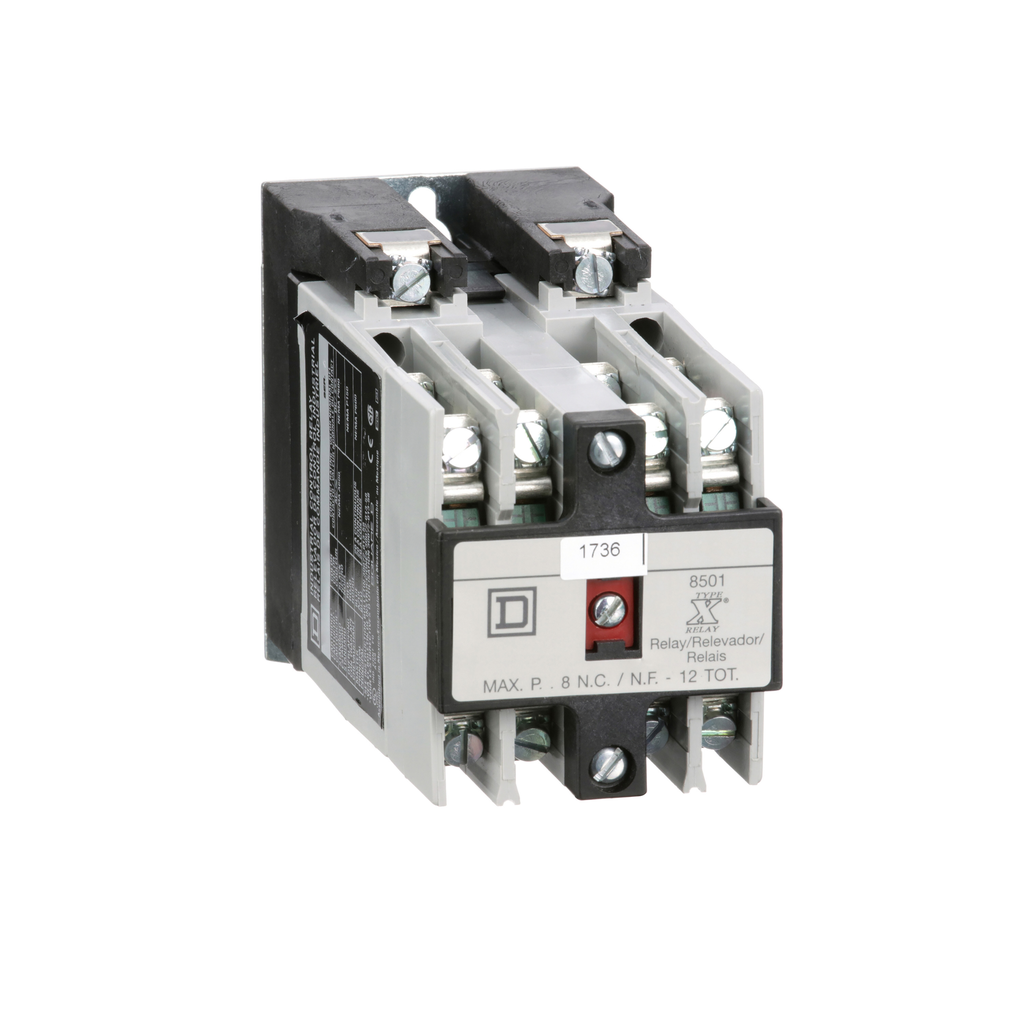

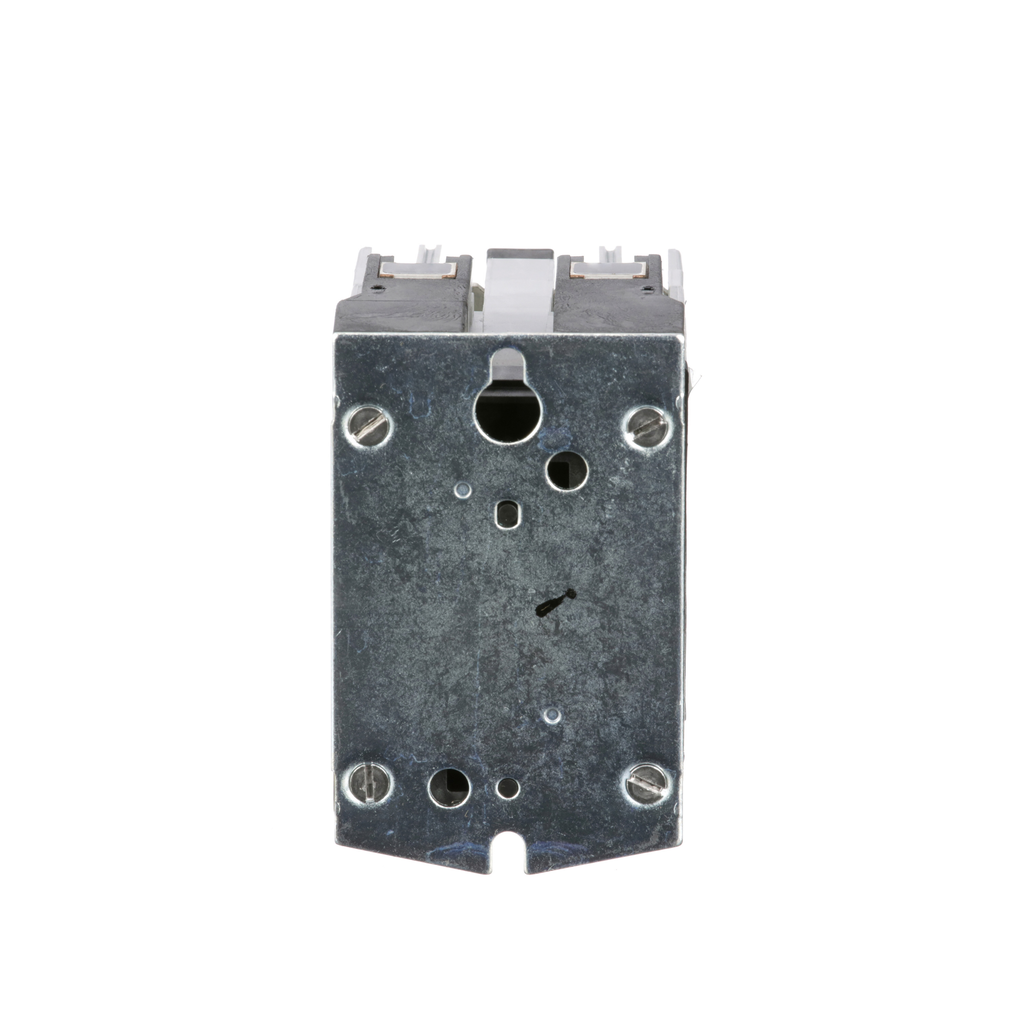

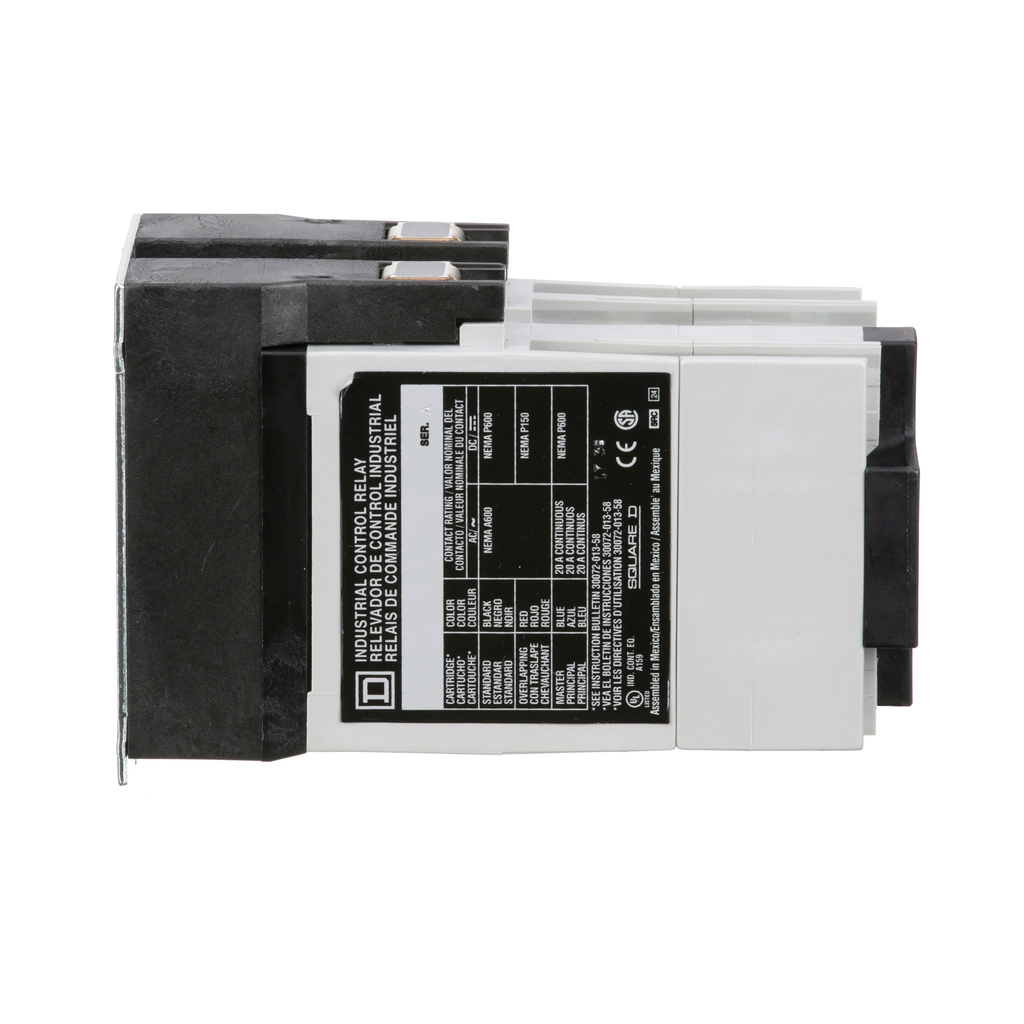

Square D 8501XO44V02 110 VAC 120 VAC 10/5 Amp 8-Pole 4NO 4NC Panel Mount AC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO44V02 | Cooper Electric Part # 609285
$313.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

Technical Information

Amperage
5-10 Amp
Coil Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Contact Configuration
4 NO + 4 NC 8 standard contact cartridges
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Number of Poles
8 Pole
Operating Temperature
-40-160 Adegrees F
Size
5.16 in
TC Connection
Screw clamp terminals
Type
Relay;Control

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901018490
GTiN
00785901018490
Product UPC
78590101849

Dimensions

Depth
5.16 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Compatible Products
  • 8501XC1
  • 8501XC2
  • 8501XB20
  • 8501XB40
  • 8501XA1
  • 8501XS1
  • 8501XLV02
  • 8501XM8
  • 9998X44
