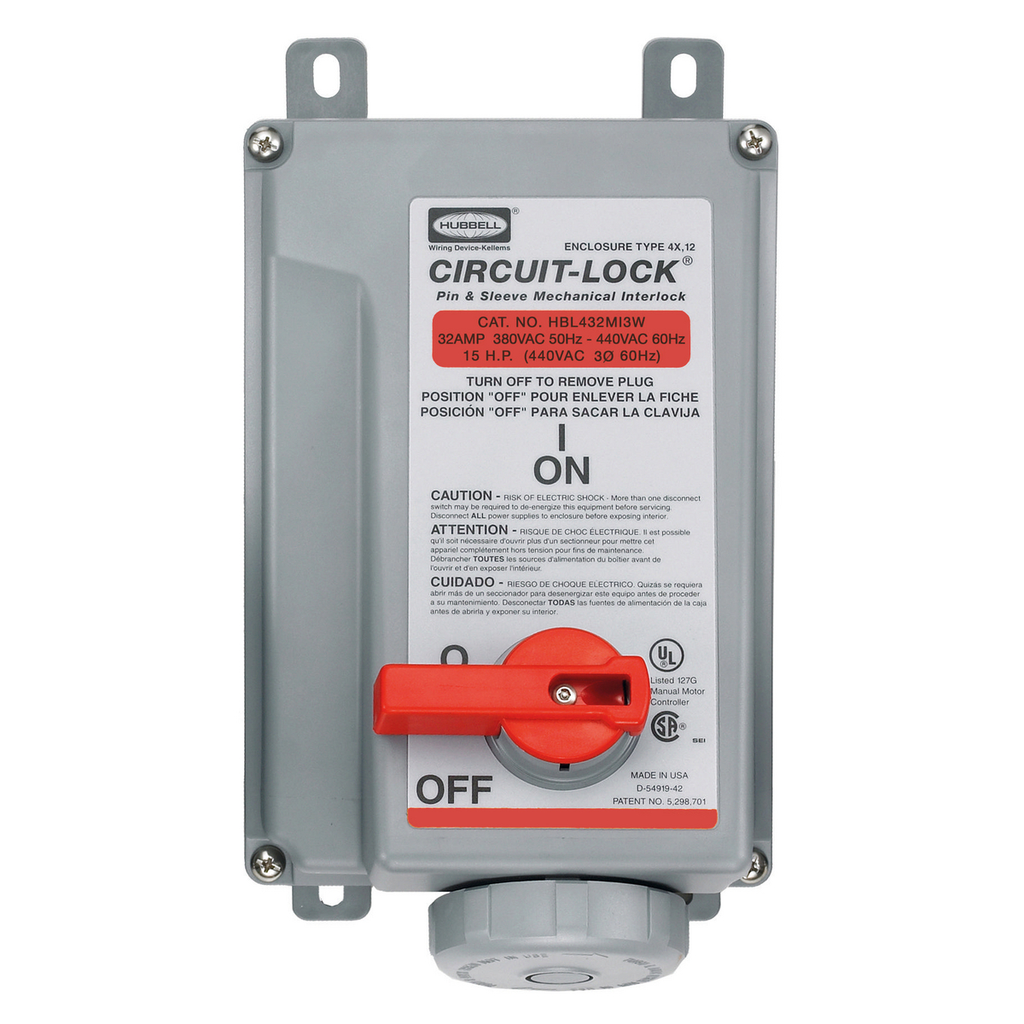

Product image for Hubbell HBL432MI3W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 32A 3P4W, 380/440V 50/60Hz, IP67, NEMA 4X, 12
Email

Hubbell HBL432MI3W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 32A 3P4W, 380/440V 50/60Hz, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device | Catalog # HBL432MI3W | Cooper Electric Part # 608874
$2,224.80/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 32A 380/415V, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
32 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Current
32 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
UL
Style
Standard Service
TC Connection
Pressure Plate
Type
Watertight
Voltage
380 Volt
Wattage
14080 Watt
Wire Count
4
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405995
Color
Red
Environmental Conditions
Watertight
GTiN
00783585405995
Product Series
Unfused Circuit,Lock
Product UPC
78358540599
Weight
6.2 lb

Dimensions

Height
7.3 Inch
Length
12.3 Inch
Width
7.9 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight
