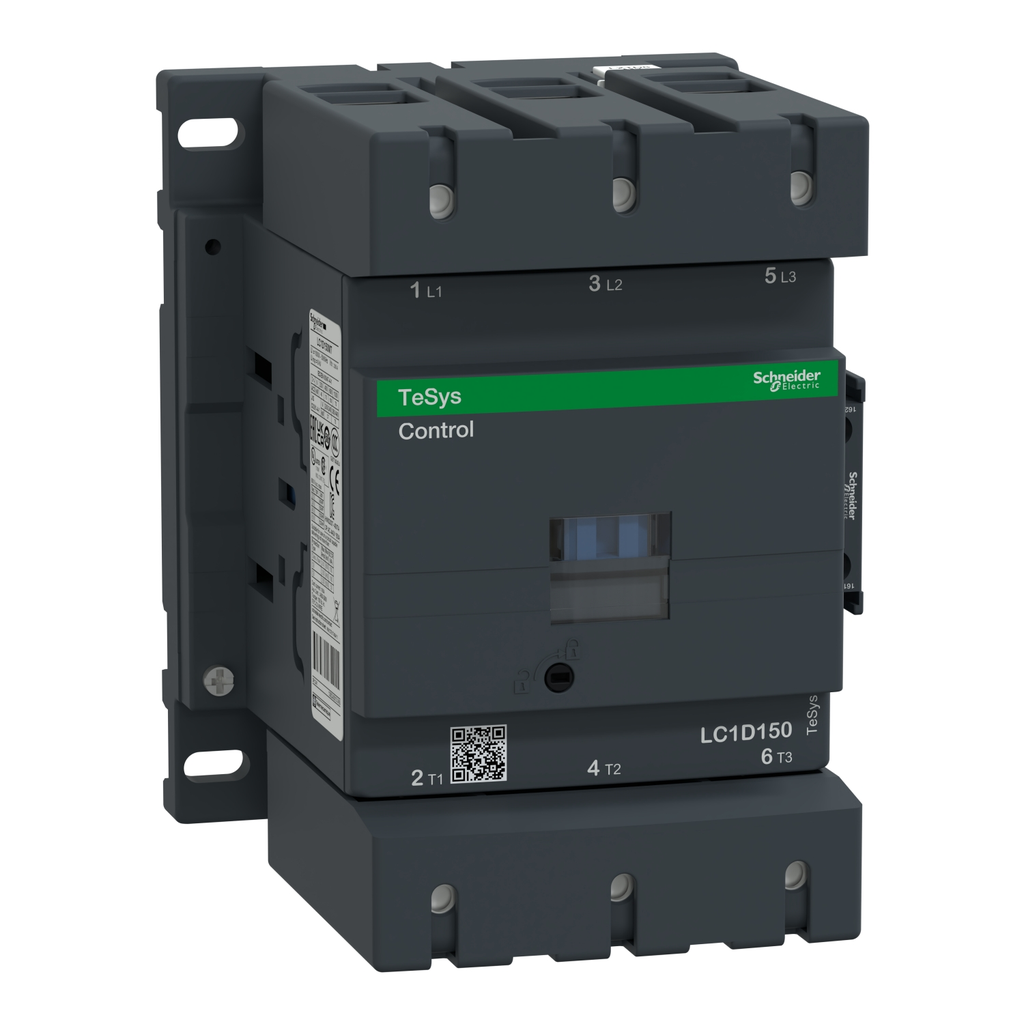

Square D LC1D150LE7 CONTACTOR 600VAC 150AMP IEC

Manufacturer: Square-D / Schneider | Catalog # LC1D150LE7 | Cooper Electric Part # 608614

$902.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 150A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. When used with a 480VAC up to 250A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 300A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 208 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Technical Information

Applications
Resistive load;Motor control
Coil Voltage
208 V AC 50/60 HZ,POWER CIRCUIT <= 1000 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
200 A 60 AC POWER CIRCUIT
Impedance
0.6 MOhm - Ith 200 A 50 Hz For Power Circuit
Net Weight
2.5 kg
Operating Cycles
1200 cyc/h 140 F (60 C)
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Range
TeSys
Size
120 MM,136 MM,158 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 10-120 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 10-50 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 10-120 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 10-50 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 10-120 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 10-50 MMASOLID WITHOUT CABLE END
Type
Contactor
Voltage
1000 Volt
Wattage
24 Watt AC-1 - 13.5 Watt AC-3

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys D

General Product Info

12-Digit UPC
785901640110
GTiN
03389110726794
Product UPC
78590164011
Weight
2.5 kg

Dimensions

Depth
5.35 in
Height
6.22 in
Warranty Length
18 mth
Width
4.72 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CE,CSA,DNV,GL,GOST,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
Czechia
Insulation Resistance
  • > 10 MOhm for signalling circuit
Heat Dissipation
  • 3-4.5 W at 50/60 Hz
Inrush Power In VA
  • 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
  • 280-350 VA 50 Hz cos phi 0.9 (at 20 °C)
Connections Terminals
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end
  • power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end
  • power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end
  • power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end
  • power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end
  • power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end
  • power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end
IE Rated Operational Current
  • 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
ITH Conventional Free Air Thermal Current
  • 200 A (at 60 °C) for power circuit
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=LC1D150LE7_CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=LC1D150P7_CAD_3D
IP Degree Of Protection
  • IP20 front face IEC 60529
Climatic Withstand
  • IACS E10 exposure to damp heat
Power Dissipation Per Pole
  • 24 W AC-1
  • 13.5 W AC-3
  • 13.5 W AC-3e
Maximum Operating Rate
  • 1200 cyc/h at 60 °C
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.3 kg CO2 eq.
  • 0.2654427709841767
Non Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact
  • 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 4.425806016866926
  • 4 kg CO2 eq.
Standards
  • CSA C22.2 No 14
  • EN 60947-4-1
  • IEC 60947-4-1
  • IEC 60335-1:Clause 30.2
  • IEC 60335-2-40:Annex JJ
  • UL 60335-2-40:Annex JJ
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • JIS C8201-4-1
Operating Time
  • 20...35 ms closing
  • 40...75 ms opening
Control Circuit Type
  • AC 50/60 Hz
Minimum Switching Voltage
  • 17 V for signalling circuit
UC Control Circuit Voltage
  • 208 V AC 50/60 Hz
ICW Rated Short Time Withstand Current
  • 250 A 40 °C - 10 min for power circuit
  • 580 A 40 °C - 1 min for power circuit
  • 1200 A 40 °C - 10 s for power circuit
  • 1400 A 40 °C - 1 s for power circuit
  • 100 A - 1 s for signalling circuit
  • 120 A - 500 ms for signalling circuit
  • 140 A - 100 ms for signalling circuit
Related Products
  • with
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 22 kg CO2 eq.
  • 22.22881266064238
Protective Treatment
  • THIEC 60068-2-30
UI Rated Insulation Voltage
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • power circuit 1000 V IEC 60947-4-1
  • signalling circuit 690 V IEC 60947-1
  • signalling circuit 600 V CSA
  • signalling circuit 600 V UL
Average Impedance
  • 0.6 mOhm - Ith 200 A 50 Hz for power circuit
Electrical Durability
  • 0.85 Mcycles 150 A AC-3 <= 440 V
  • 1 Mcycles 200 A AC-1 <= 440 V
  • 0.85 Mcycles 150 A AC-3e <= 440 V
Maximum Horse Power Rating
  • 40 hp at 200/208 V AC 50/60 Hz for 3 phase motors
  • 50 hp at 230/240 V AC 50/60 Hz for 3 phase motors
  • 100 hp at 460/480 V AC 50/60 Hz for 3 phase motors
  • 125 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Fire Resistance
  • 850 °C IEC 60695-2-1
Contactor Application
  • resistive load
  • motor control
Motor Power KW
  • 40 kW at 220...230 V AC 50/60 Hz (AC-3)
  • 75 kW at 380...400 V AC 50/60 Hz (AC-3)
  • 80 kW at 415...440 V AC 50/60 Hz (AC-3)
  • 90 kW at 500 V AC 50/60 Hz (AC-3)
  • 100 kW at 660...690 V AC 50/60 Hz (AC-3)
  • 75 kW at 1000 V AC 50/60 Hz (AC-3)
  • 22 kW at 400 V AC 50/60 Hz (AC-4)
  • 40 kW at 220...230 V AC 50/60 Hz (AC-3e)
  • 75 kW at 380...400 V AC 50/60 Hz (AC-3e)
  • 80 kW at 415...440 V AC 50/60 Hz (AC-3e)
  • 90 kW at 500 V AC 50/60 Hz (AC-3e)
  • 100 kW at 660...690 V AC 50/60 Hz (AC-3e)
  • 75 kW at 1000 V AC 50/60 Hz (AC-3e)
Flame Retardance
  • V1 conforming to UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 86 kg CO2 eq.
  • 85.59833633093525
Persona Type Ids
  • EU
  • OM
  • OM8
  • PB
Auxiliaries
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
Safety Reliability Level
  • B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Carbon Footprint Of The Distribution Phase A4
  • 0.7508929239734572
  • 0.8 kg CO2 eq.
Tightening Torque
  • control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm
  • control circuit 1.2 N.m screw clamp terminals Philips No 2
  • power circuit 12 N.m connector hexagonal 4 mm
  • control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Mechanical Robustness
  • vibrations contactor open 2 Gn, 5...300 Hz)
  • vibrations contactor closed 4 Gn, 5...300 Hz)
  • shocks contactor closed 15 Gn for 11 ms)
  • shocks contactor open 6 Gn for 11 ms)
Minimum Switching Current
  • 5 mA for signalling circuit
Control Circuit Voltage Limits
  • 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz
  • 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz
  • 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
IRMS Rated Making Capacity
  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
  • 1660 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 315 A gG at <= 690 V coordination type 1 for power circuit
  • 250 A gG at <= 690 V coordination type 2 for power circuit
Hold In Power Consumption In VA
  • 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
  • 2-18 VA 50 Hz cos phi 0.9 (at 20 °C)
UE Rated Operational Voltage
  • power circuit <= 1000 V AC 25...400 Hz
  • power circuit <= 300 V DC
Permissible Ambient Air Temperature Around The Device
  • -40-60 °C
  • 60-70 °C with derating
Rated Breaking Capacity
  • 1400 A at 440 V for power circuit conforming to IEC 60947
UIMP Rated Impulse Withstand Voltage
  • 8 kV IEC 60947
