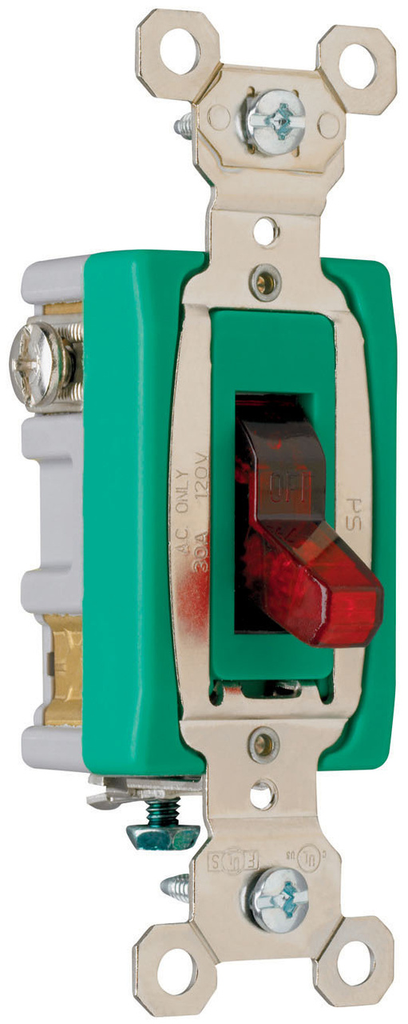

Product image for Pass & Seymour PS30AC1-RPL 1pole Pilot Lighted Switch, Back & Side Wire, 30A 120V - Red
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PS30AC1-RPL 1pole Pilot Lighted Switch, Back & Side Wire, 30A 120V - Red

Manufacturer: Pass & Seymour / Legrand | Catalog # PS30AC1RPL | Cooper Electric Part # 60539
$88.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
1pole Pilot Lighted Switch, Back & Side Wire, 30amp 120volt, Red

Technical Information

Amperage
30 Amp
Applications
Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
1 Pole
Size
3.3"
Type
Pilot Lighted
Voltage
120 Volt
Wattage
1 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195934
Color
Red
Finish
Matte
GTiN
00785007195934
Product UPC
78500719593
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
