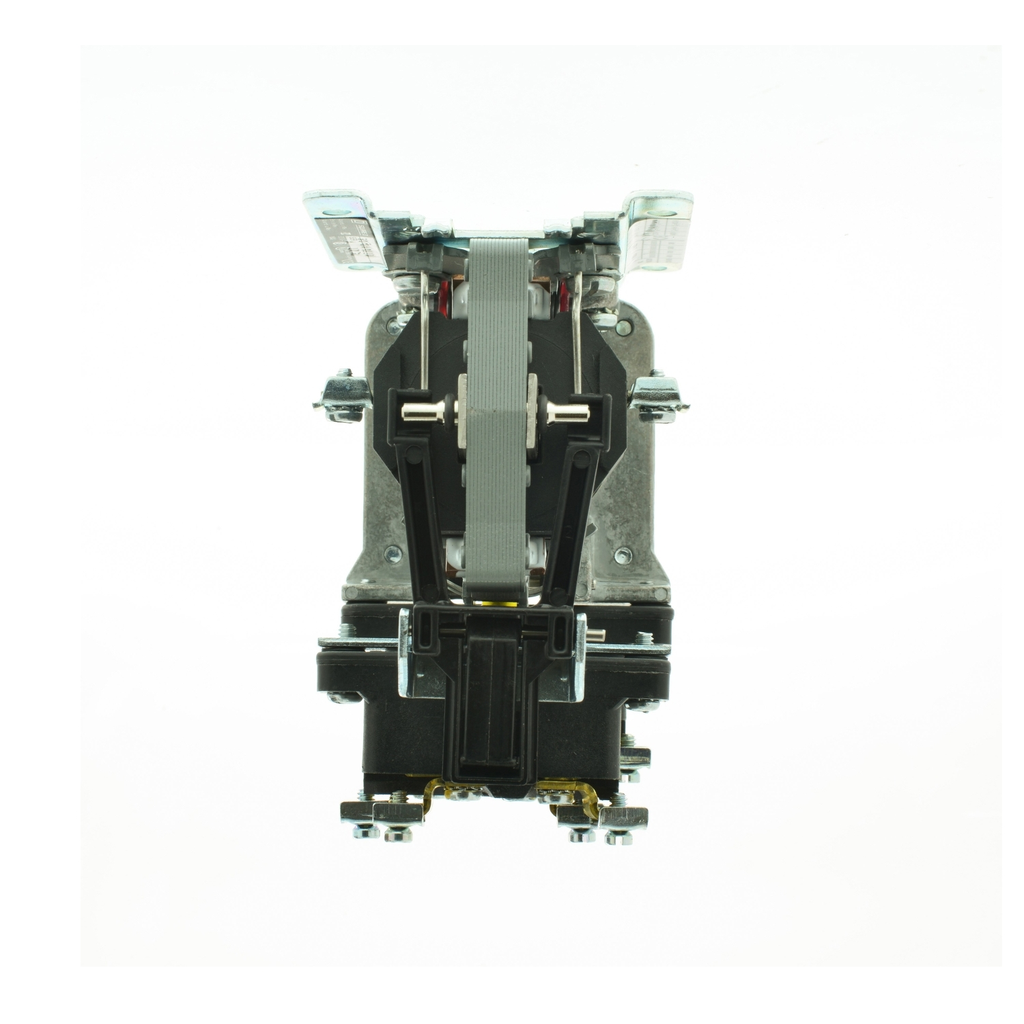

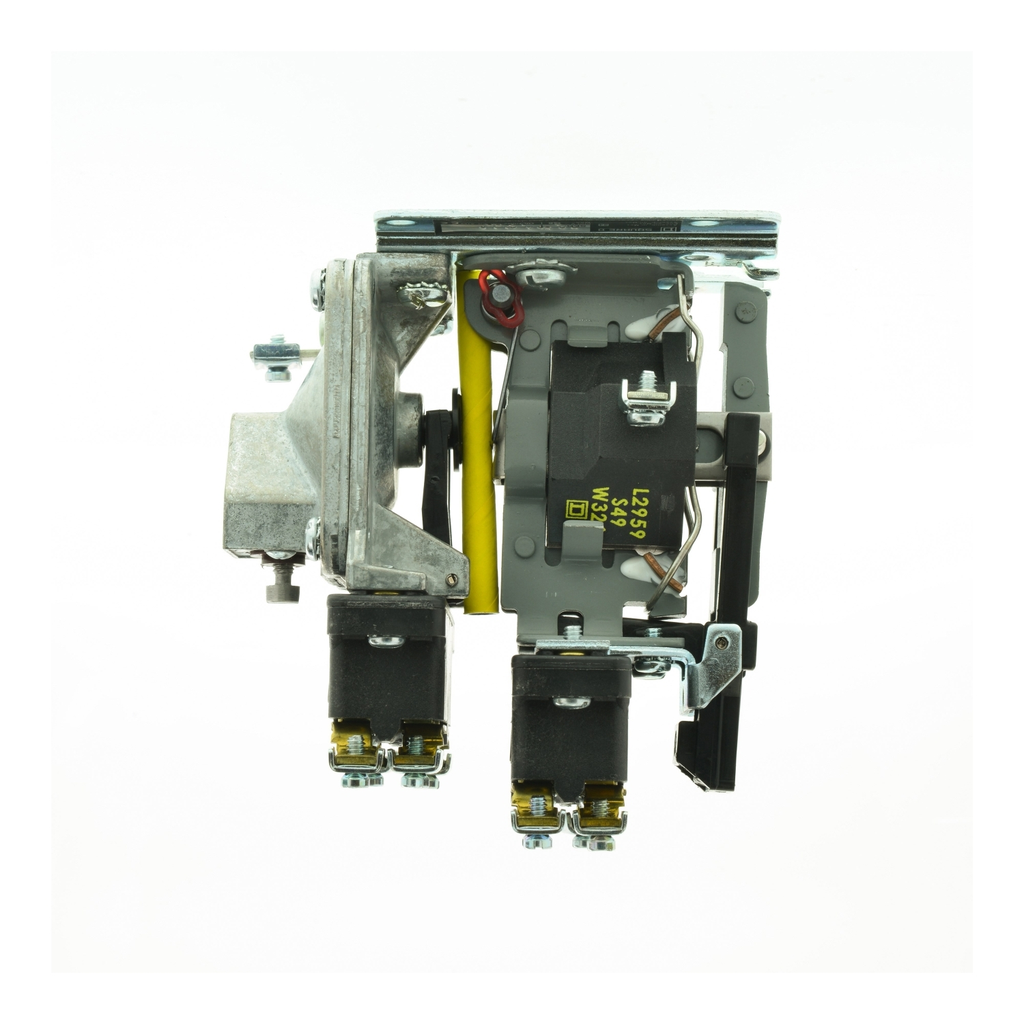

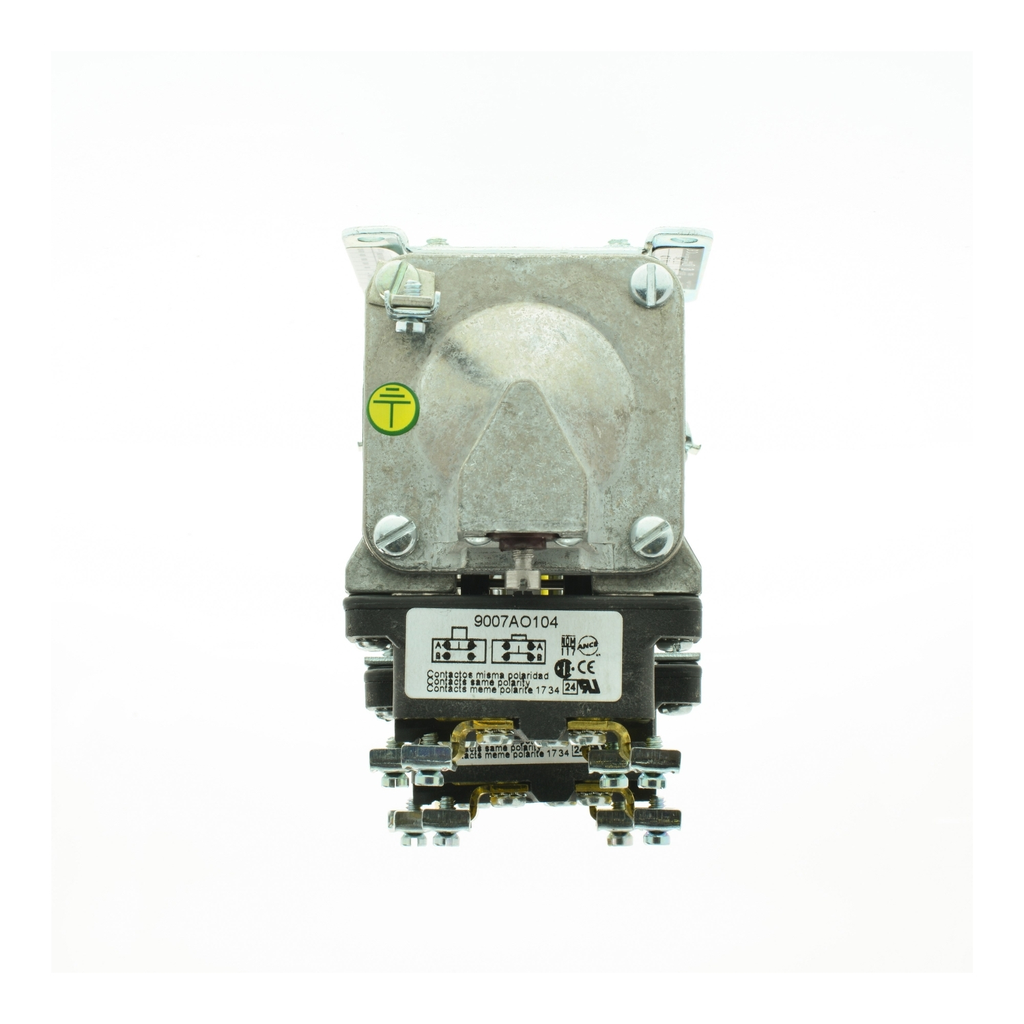

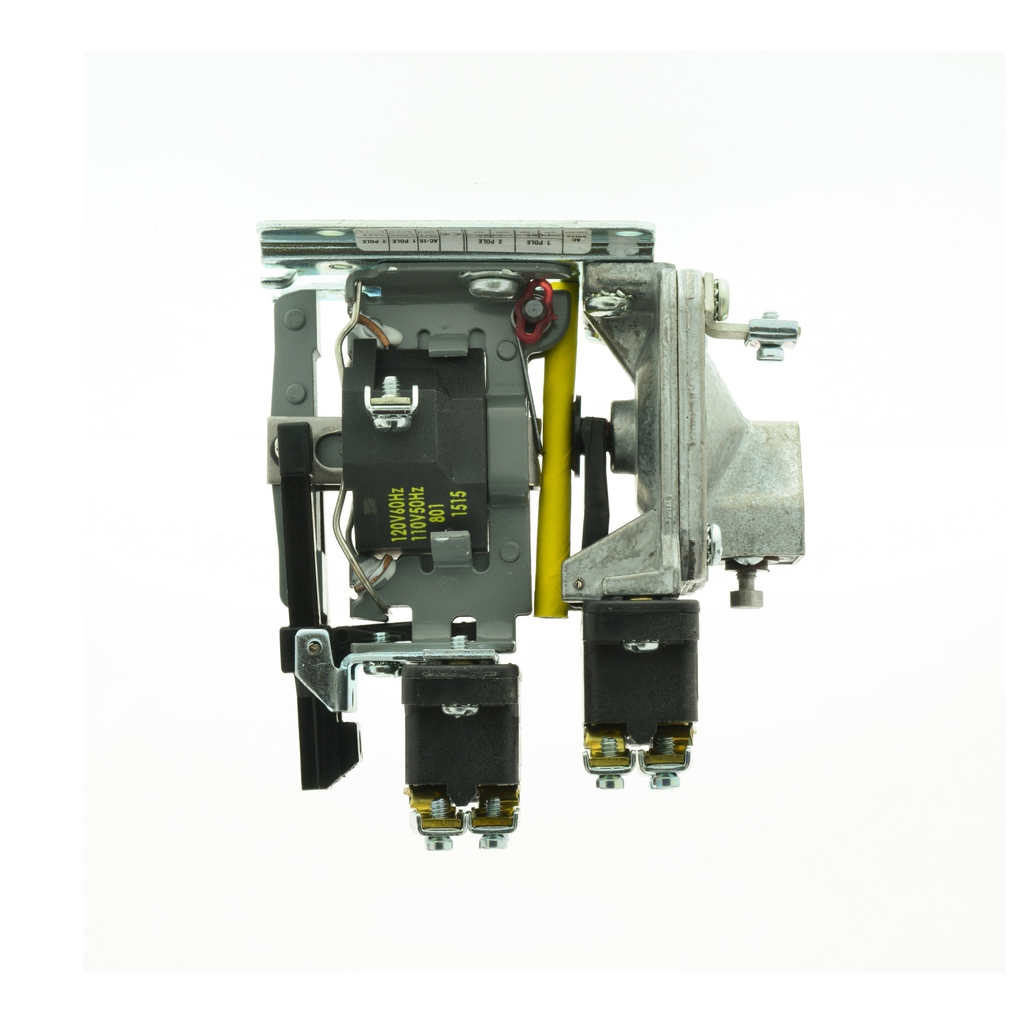

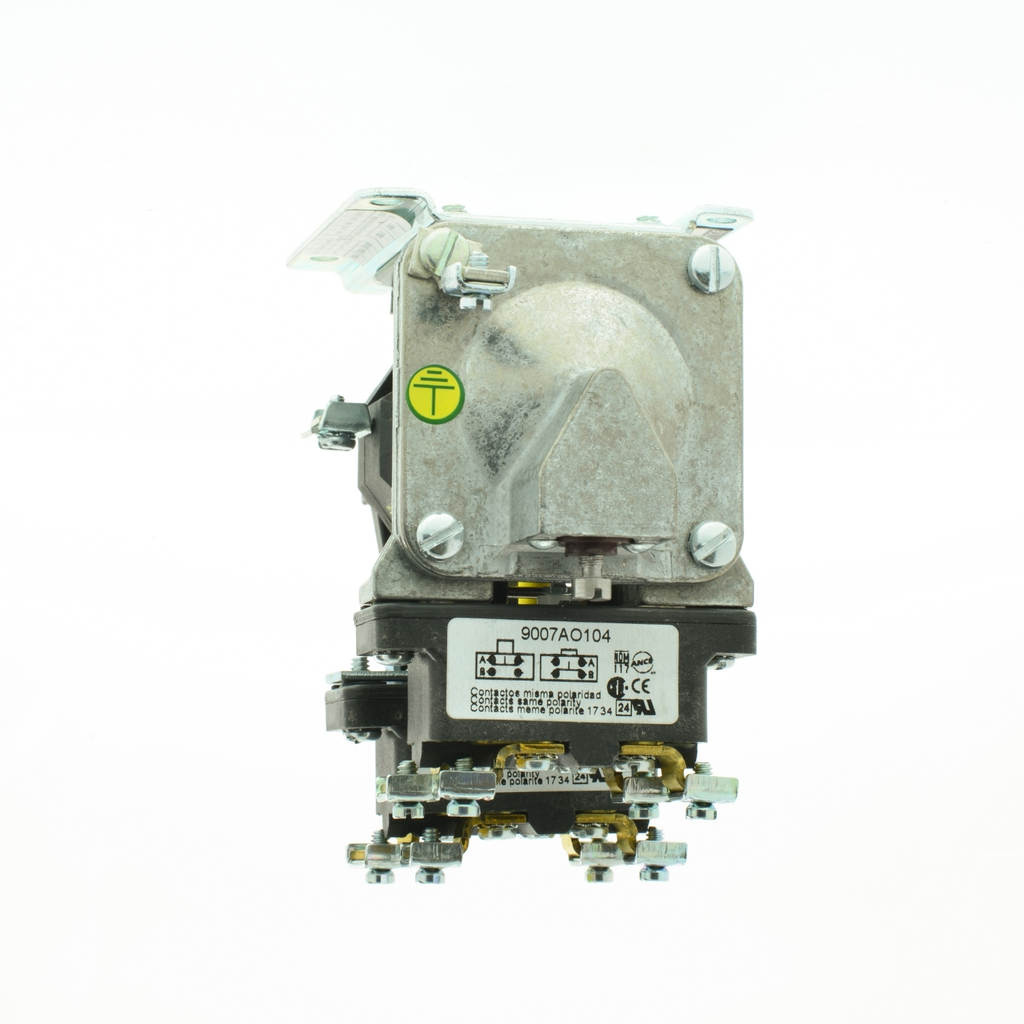

Square D 9050AO11DV02 120 VAC 60 Hz Coil 15 Amp 1NO 1NC 0.1 Second to 1 Minute Pneumatic Timer

Manufacturer: Square-D / Schneider | Catalog # 9050AO11DV02 | Cooper Electric Part # 604990
$629.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
9050A NEMA pneumatic timers are designed for very rugged applications where precise timing is not required. This off delay timer has a timing range from 0.1 to 60 seconds. This timer has one normally open and one normally closed timed contact and one normally open and one normally closed instantaneous contact. They are controlled by a variety of VAC coils. This timer has a 110/120 VAC 50/60 Hz coil. 9050A pneumatic timers are UL listed and CSA certified.

Technical Information

Coil Voltage
120 V AC 60 Hz;110 V AC 50 Hz
Contact Configuration
TIME DELAYED 1 NO + 1 NC-INSTANTANEOUS 1 NO + 1 NC
Contact Rating
15 A,600 V AC
Current
15 Amp
Line Rated Current
15 A
Operating Temperature
68-104 Adegrees F
Size
102 MM,111 MM,67 MM
TC Connection
Screw-clamp terminals
Type
Timer;SPDT

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901485919
GTiN
00785901485919
Product UPC
78590148591

Dimensions

Depth
111 mm
Height
67 mm
Warranty Length
18 mth
Width
102 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
