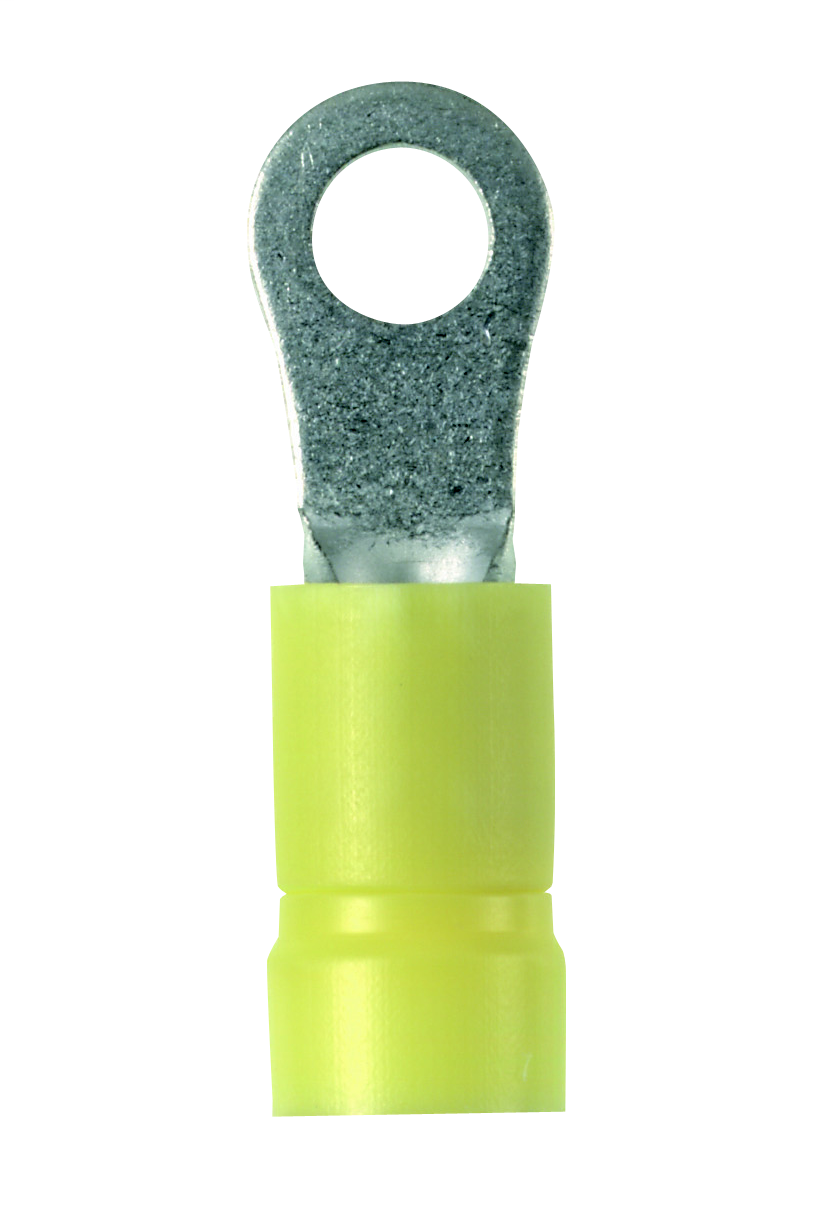

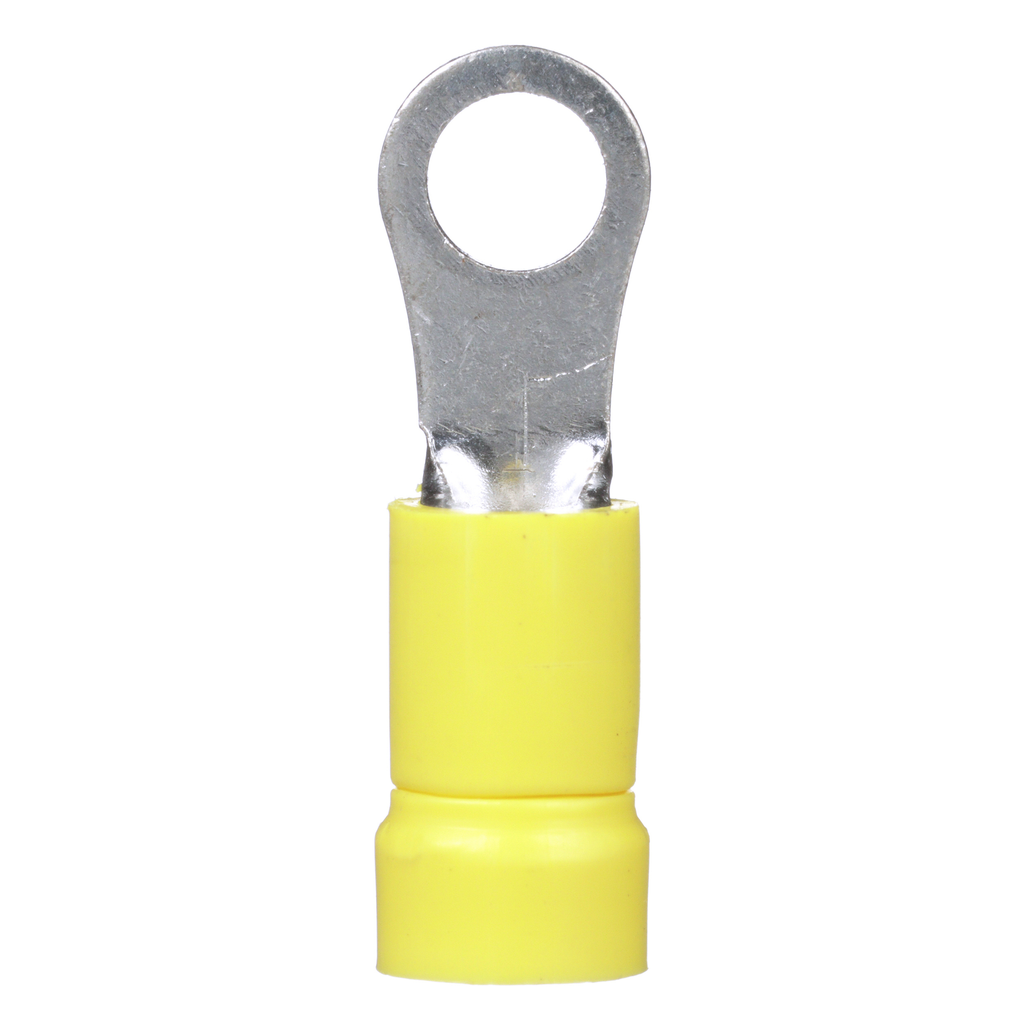

Product image for Panduit PV10-10R-E Ring Terminal, vinyl insulated, 12 - 10 AWG, #10 stud size, funnel entry, Terminal Convenience Package
Image thumbnail 0
Image thumbnail 1
Email

Panduit PV10-10R-E Ring Terminal, vinyl insulated, 12 - 10 AWG, #10 stud size, funnel entry, Terminal Convenience Package

Manufacturer: Panduit Corp | Catalog # PV10-10R-E | Cooper Electric Part # 602425
$163.39/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing
Ring Terminal, 12 . 10 AWG, #10 stud size, vinyl insulated, funnel entry, convenience package.

Technical Information

Barrel Type
Brazed Seam,Insulation Support
Color Coding
Yellow
Conductor Size
12-10 AWG
Enclosure
Ring shape
Insulation Material
Vinyl
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
NA
Stud Hole Size
M5
Stud Size
#10
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Width
0.31 in
Type
Loose-Piece
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983362394
Color
Yellow
Finish
Tin Plated
GTiN
00074983362394
Product Type
Terminals
Product UPC
07498336239
UNSPSC
39121409

Dimensions

Length
1.05 Inch
Outer Diameter
0.31 in
Overall Length
1.05 in
Width
7.9 mm

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
