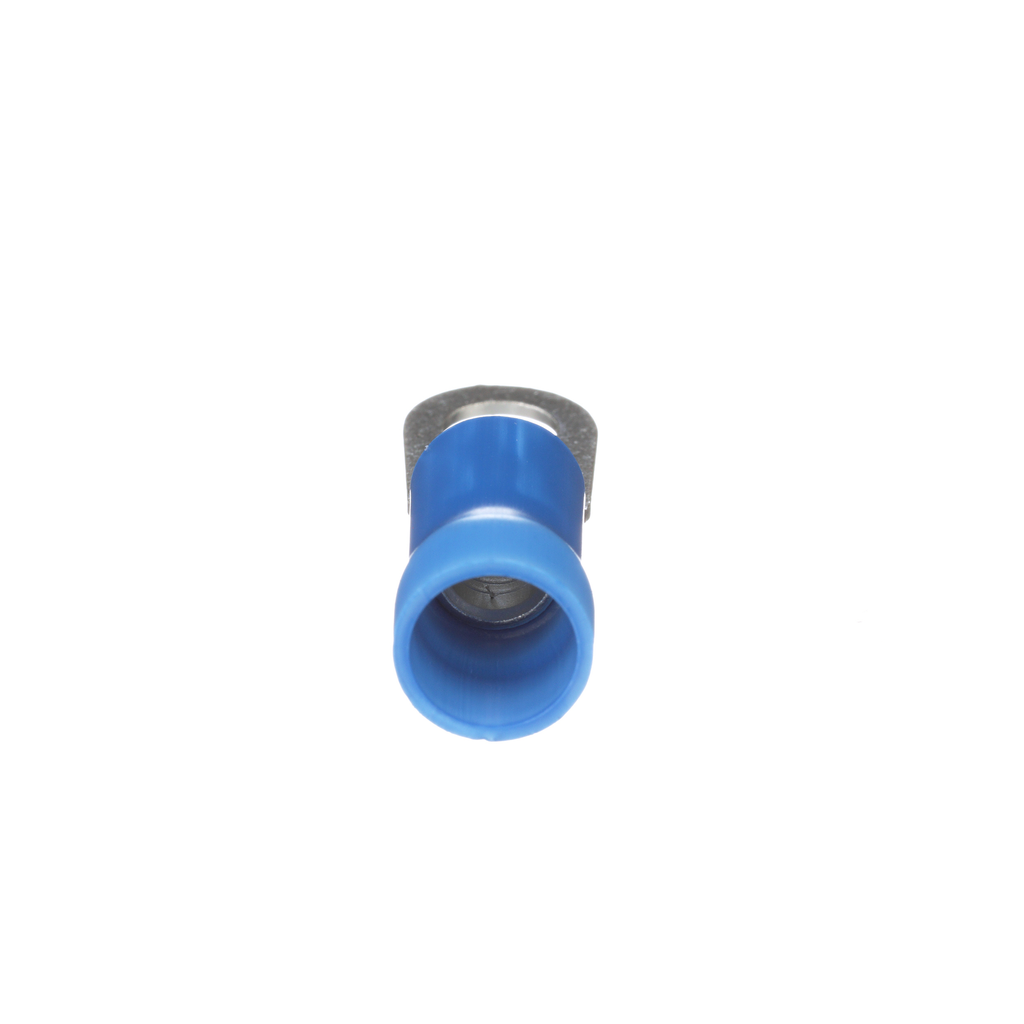

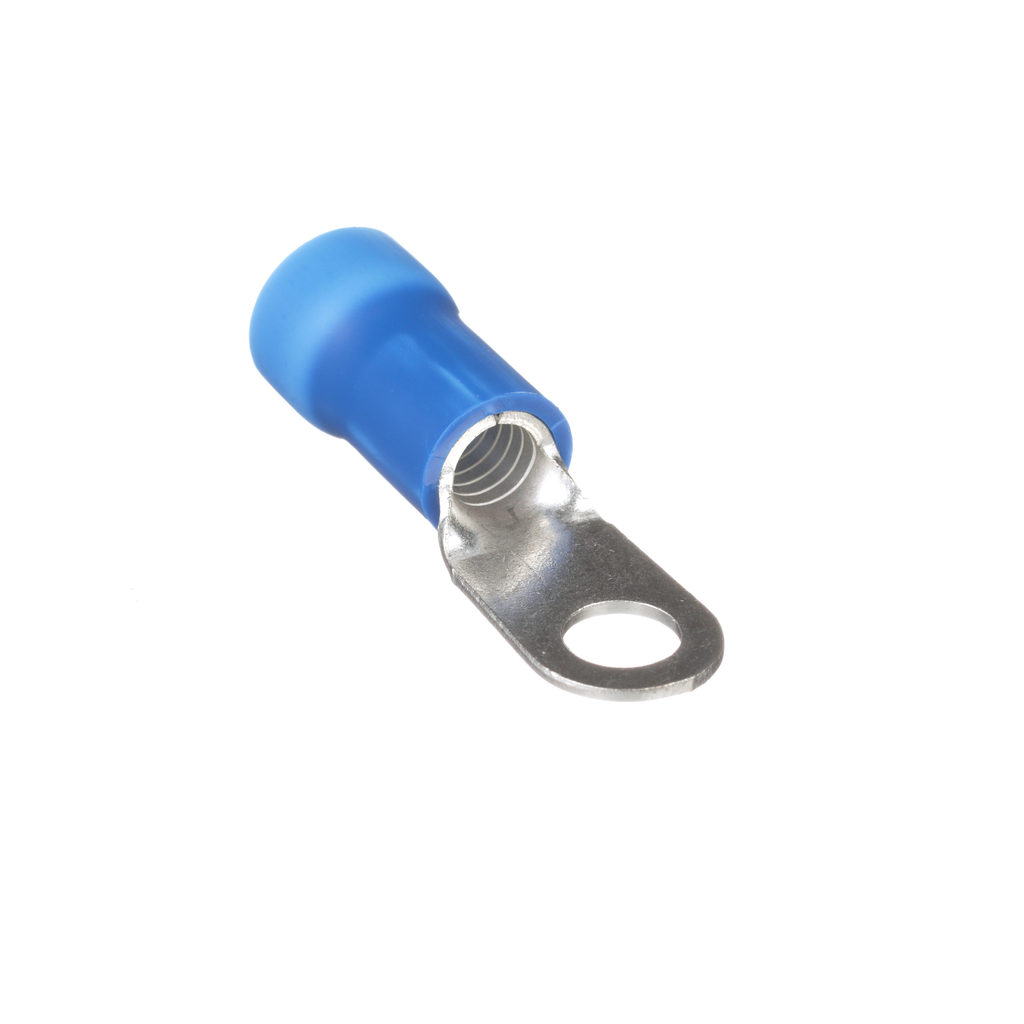

Product image for Panduit PV6-14R-X Vinyl Insulated Large Wire Ring Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit PV6-14R-X Vinyl Insulated Large Wire Ring Terminal

Manufacturer: Panduit Corp | Catalog # PV6-14R-X | Cooper Electric Part # 600455
$622.79/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The PV6-14R-X Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.69 in
Barrel Type
Funnel
Color Coding
Blue
Conductor Size
6 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
1/4"
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.05 in
Tongue Width
0.47 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
6 AWG

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983124466
Color
Blue
Finish
Tin Plated
GTiN
00074983124466
Product UPC
07498312446

Dimensions

Overall Length
1.65 in
Width
0.47 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
