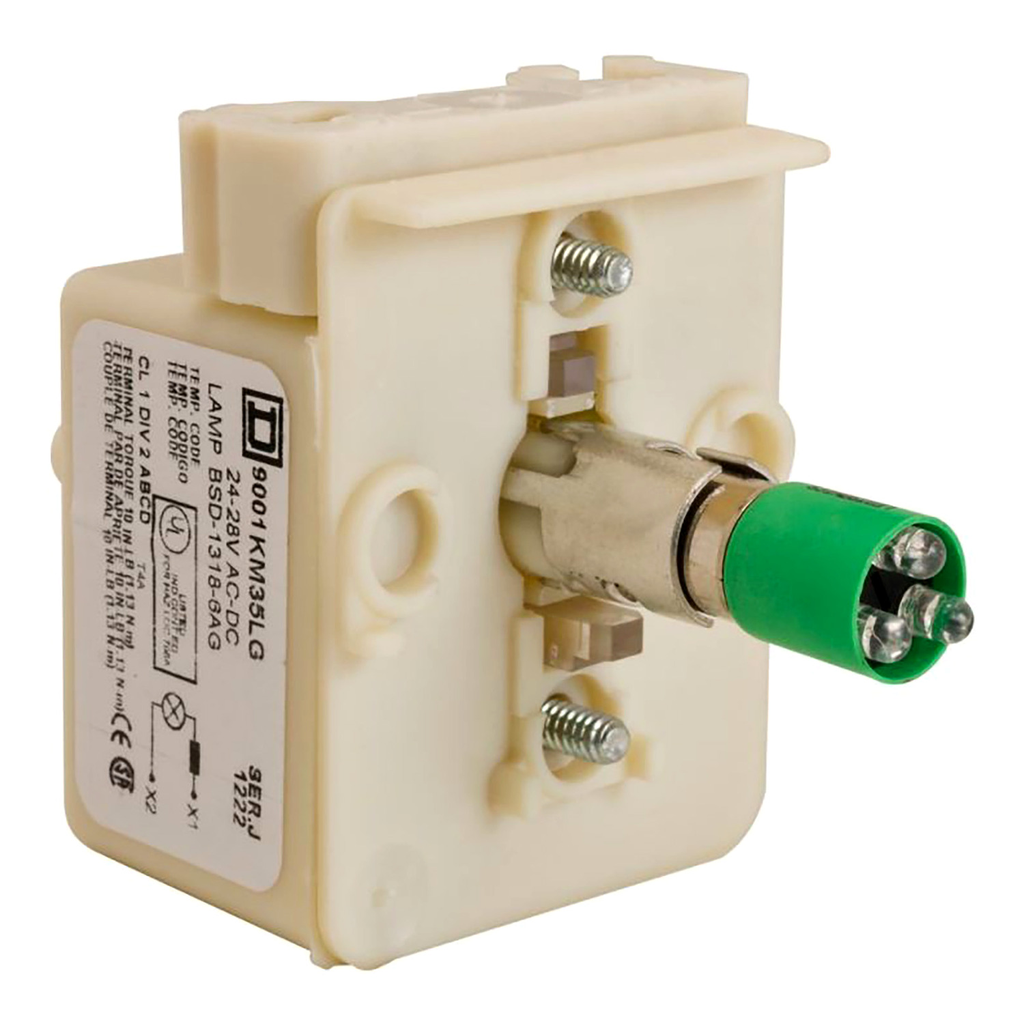

Product image for Square D 9001KM35LG 24 to 28 VAC/VDC 0.28 VA Green LED 30 mm Push Button Light Module
Image thumbnail 0
Image thumbnail 1
Email

Square D 9001KM35LG 24 to 28 VAC/VDC 0.28 VA Green LED 30 mm Push Button Light Module

Manufacturer: Square-D / Schneider | Catalog # 9001KM35LG | Cooper Electric Part # 600021
$127.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a green LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap. These light modules are UL Listed and CSA certified.

Technical Information

Applications
LIGHT MODULE FOR ILLUMINATING 30MM CONTROL UNITS
Light Source
LED
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-158 degrees F,-40-70 degrees C
Type
LIGHT MODULE
Voltage
24/28 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
785901028956
GTiN
00785901028956
Product UPC
78590102895

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NEMA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
