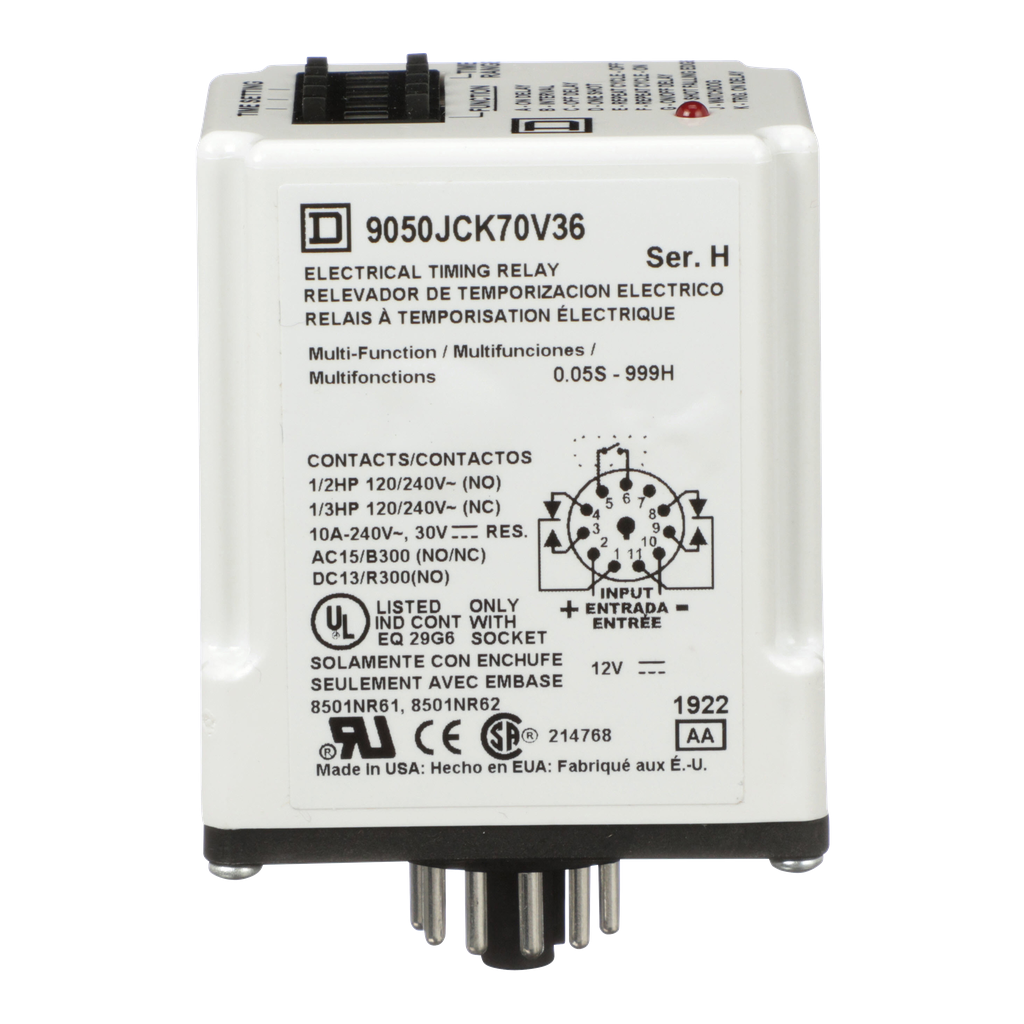

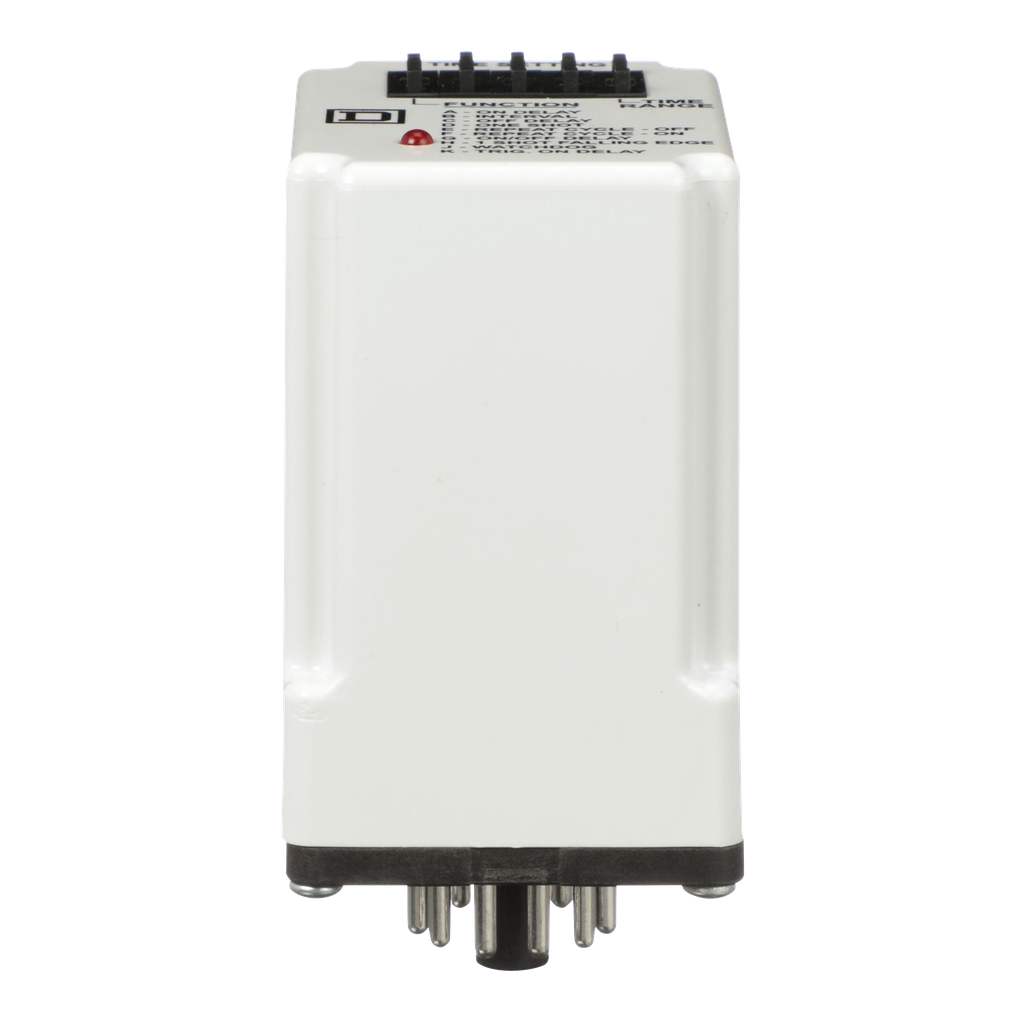

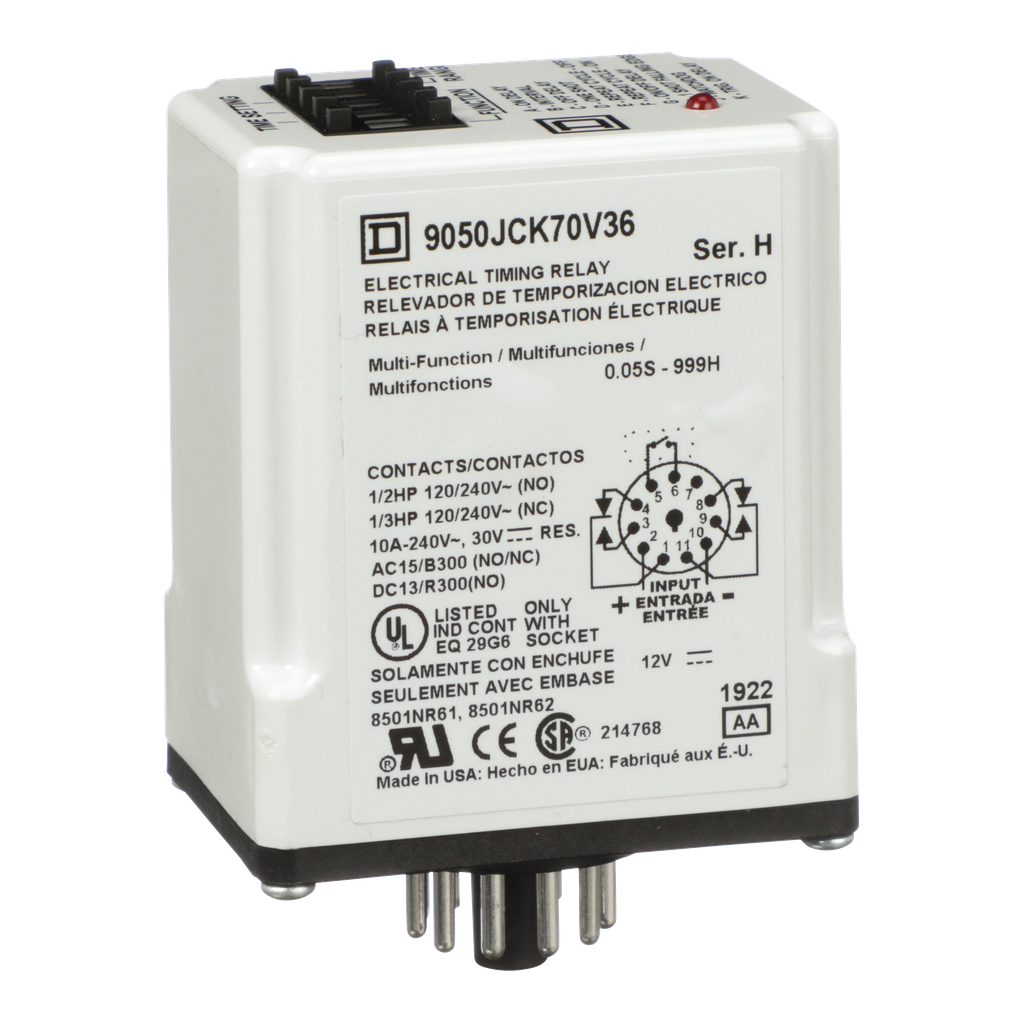

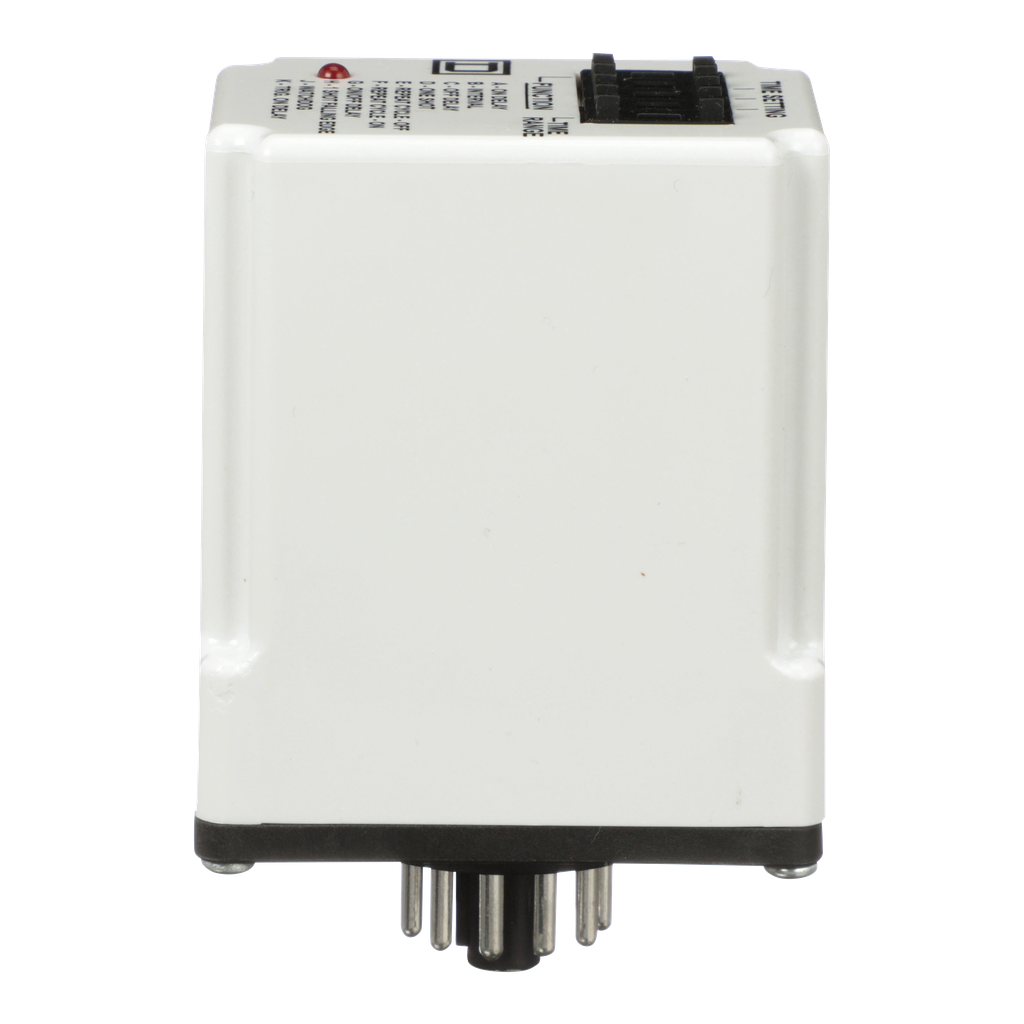

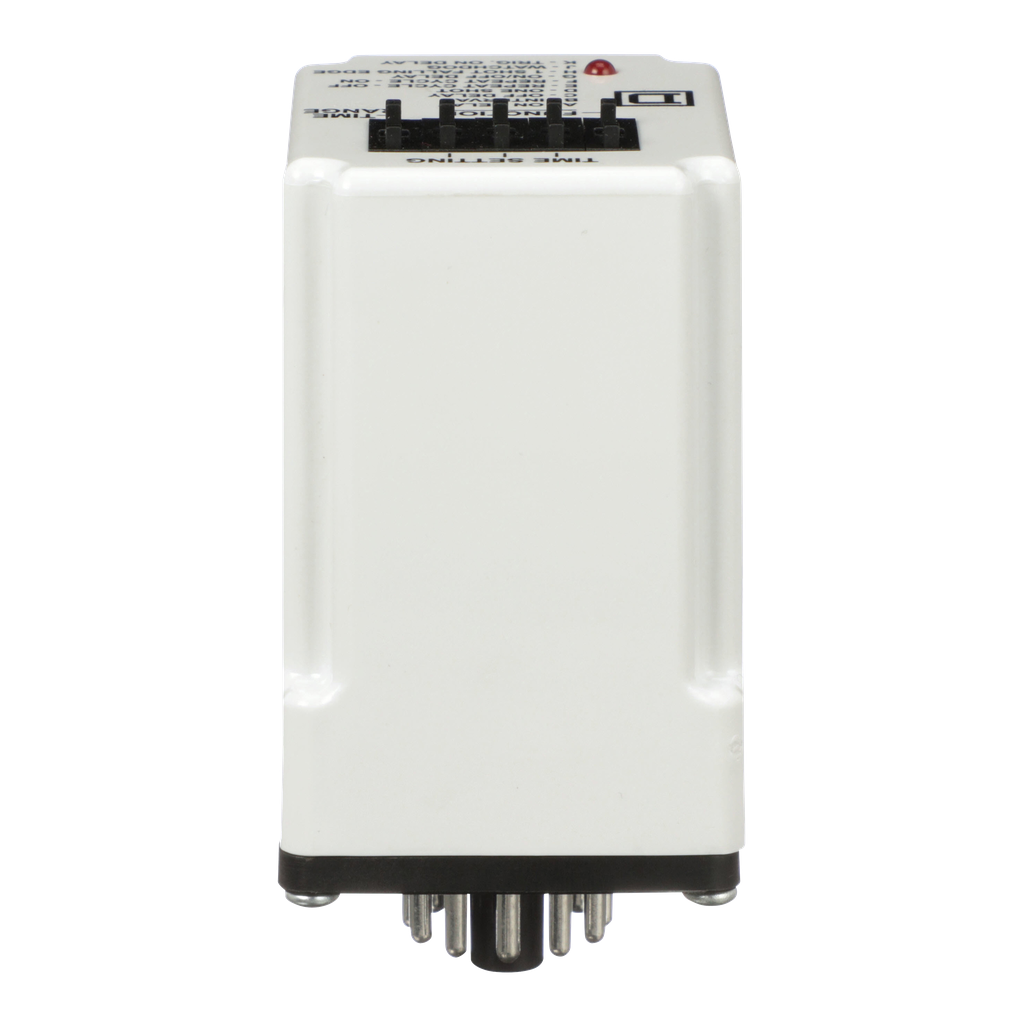

Square D 9050JCK70V36 12 VDC Coil 10 Amp DPDT Plug-In Socket Mount DC Timing Relay

Manufacturer: Square-D / Schneider | Catalog # 9050JCK70V36 | Cooper Electric Part # 598823
$205.26 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigg

Technical Information

Contact Configuration
2 NO + 2 NC
Contact Material
Silver Nickel
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Socket
Number of Pins
11
Operating Temperature
-18-122 degrees F
Power Consumption
3 VA
TC Connection
TUBULAR
Type
Timer;DPDT

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901930761
GTiN
00785901930761
Product UPC
78590193076
Used With
8501NR61;8501NR62

Dimensions

Depth
3.58 in
Height
2.36 in
Warranty Length
18 mth
Width
1.73 in

Certifications and Compliance

Certifications
CE,UL Listed,UL Recognized
Country of Origin
USA
Uc Control Circuit Voltage
  • 12 V DC
Maximum Switching Voltage
  • 240 V AC
Time Delay Range
  • 1...999 h
  • 0.05...9.99 s
  • 1...999 s
  • 0.1...99.9 s
  • 0.1...99.9 h
  • 1...999 min
Accessories
  • 8501NR61
  • 8501NR62
  • 8501NH7
  • 8501NR61B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Time Delay Type
  • off-delay
  • trigger on-delay
  • one shot falling edge
  • one shot
  • on-delay and off-delay
  • watchdog
  • on-delay
  • repeat cycle
  • interval
Accessory Products
  • 8501NR61
  • 8501NR62
  • 8501NH7
  • 8501NR61B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Product Compatibility
  • 8501NR61
  • 8501NR62
Product Certifications
  • UL Recognized
  • CE
  • UL Listed
