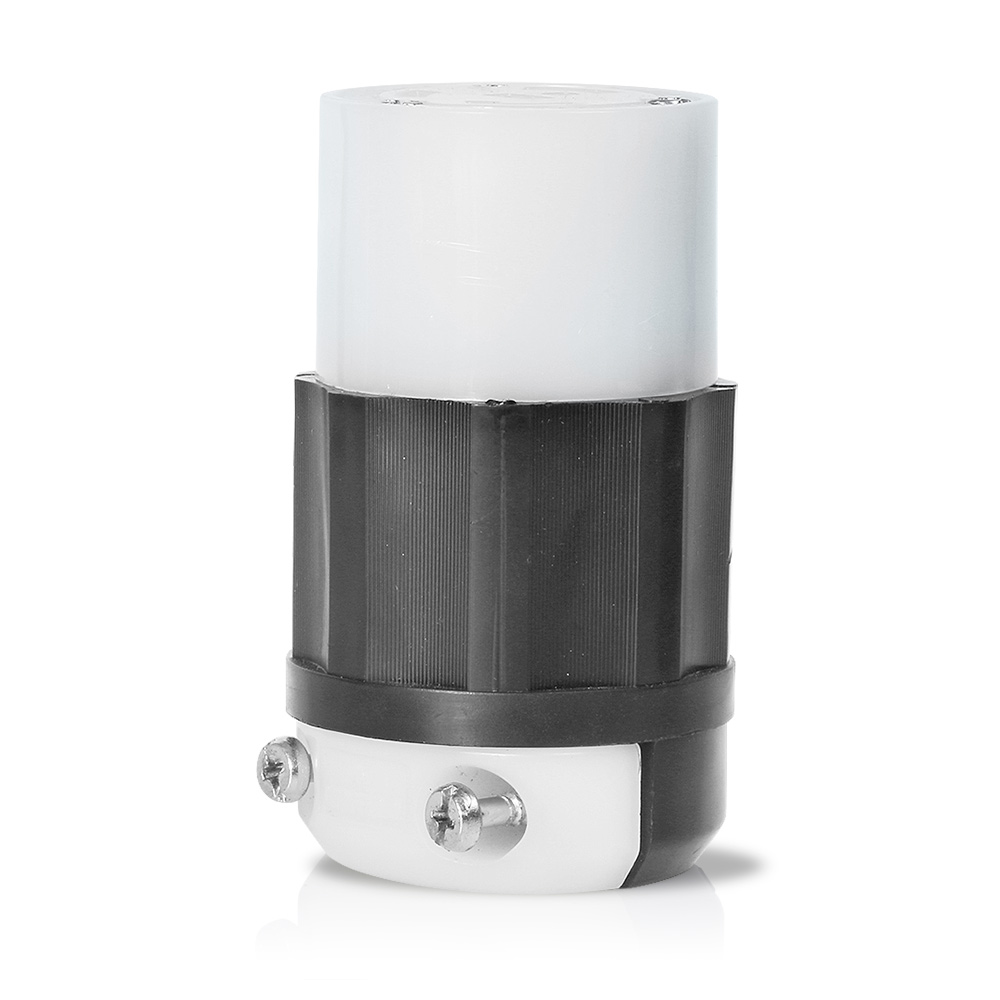

Product image for LEV 7101-C EB CONN LOCK NON-GRND 2P
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV 7101-C EB CONN LOCK NON-GRND 2P

Manufacturer: Leviton Mfg Co | Catalog # 7101-C | Cooper Electric Part # 597785
$25.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 250 Volt, NEMA L2-20P, 2P, 2W, Connector, Locking Blade, Industrial Grade, Non-Grounding - BLACK-WHITE

Technical Information

Amperage
20 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG/16-10 AWG
Contact Material
Solid Brass
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grade
Industrial
Grounding
Non-Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
1.531 Dia x 2.760 H IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
12 lb-in
Type
Straight
Voltage
250 Volt
Wire Count
2
Wire Size
18-10 AWG; 16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477835777
Color
Black/White
Environment
Dry
Environmental Conditions
-40 to 60 C
GTiN
00078477835777
Product UPC
07847783577

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
NEMA
  • L2-20R
