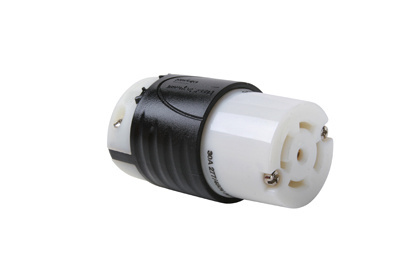

Product image for Pass & Seymour L2230-C Turnlok Connector, 5wire, 30amp 277/480V
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour L2230-C Turnlok Connector, 5wire, 30amp 277/480V

Manufacturer: Pass & Seymour / Legrand | Catalog # L2230C | Cooper Electric Part # 5975
$159.55/ea
ea
Log in or register to view your price, purchase history, and more!
Receptacle Plug Connector
Yes No
20A 30A
2 3 4
3 4 5
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Connector 5wire 30amp 277/480volt Turnlok

Technical Information

Amperage
30 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Material
Thermoplastic
NEMA
L22-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
3.4"
Type
Connector
Voltage
277 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007223019
Color
Black
GTiN
00785007223019
Product UPC
78500722301
UNSPSC
39121403

Dimensions

Diameter
2.2 Inch
Length
3.33 Inch
Width
2.2 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
Certifications
  • cULus Listed
