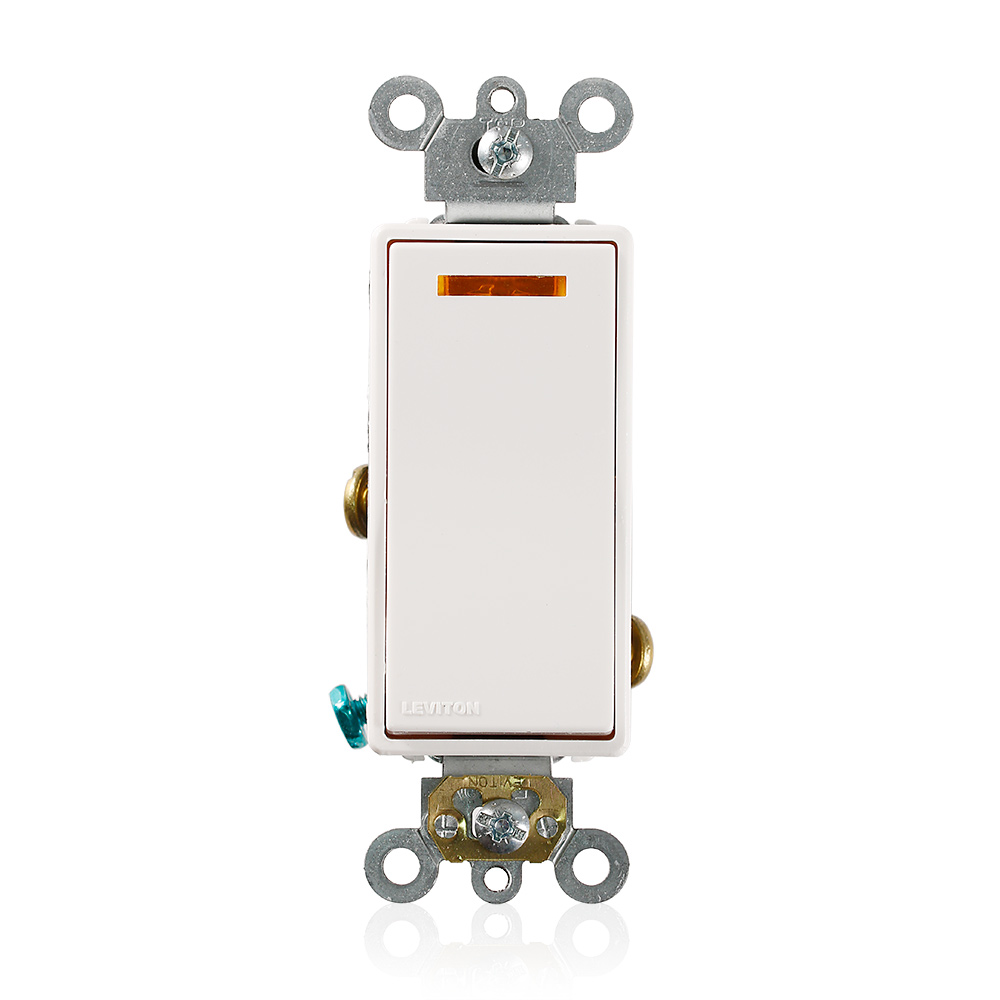

Product image for Leviton 5649-2W 20 Amp 277 Volt Decora Plus Rocker Lighted Handle Illuminated OFF 1-Pole White AC Quiet Switch
Image thumbnail 0
Image thumbnail 1
Email

Leviton 5649-2W 20 Amp 277 Volt Decora Plus Rocker Lighted Handle Illuminated OFF 1-Pole White AC Quiet Switch

Manufacturer: Leviton Mfg Co | Catalog # 5649-2W | Cooper Electric Part # 596855
$30.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 277 Volt, Decora Plus Rocker Lighted Handle - Illuminated OFF Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

Technical Information

Actuator
Rocker
Amperage
16 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
20 A
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
2 hp
Indicator
Illuminated
Material
Thermoplastic
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Rocker Switch
Voltage
277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
DECORA PLUS SWITCHES

General Product Info

12-Digit UPC
078477789100
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477789100
Product UPC
07847778910

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
