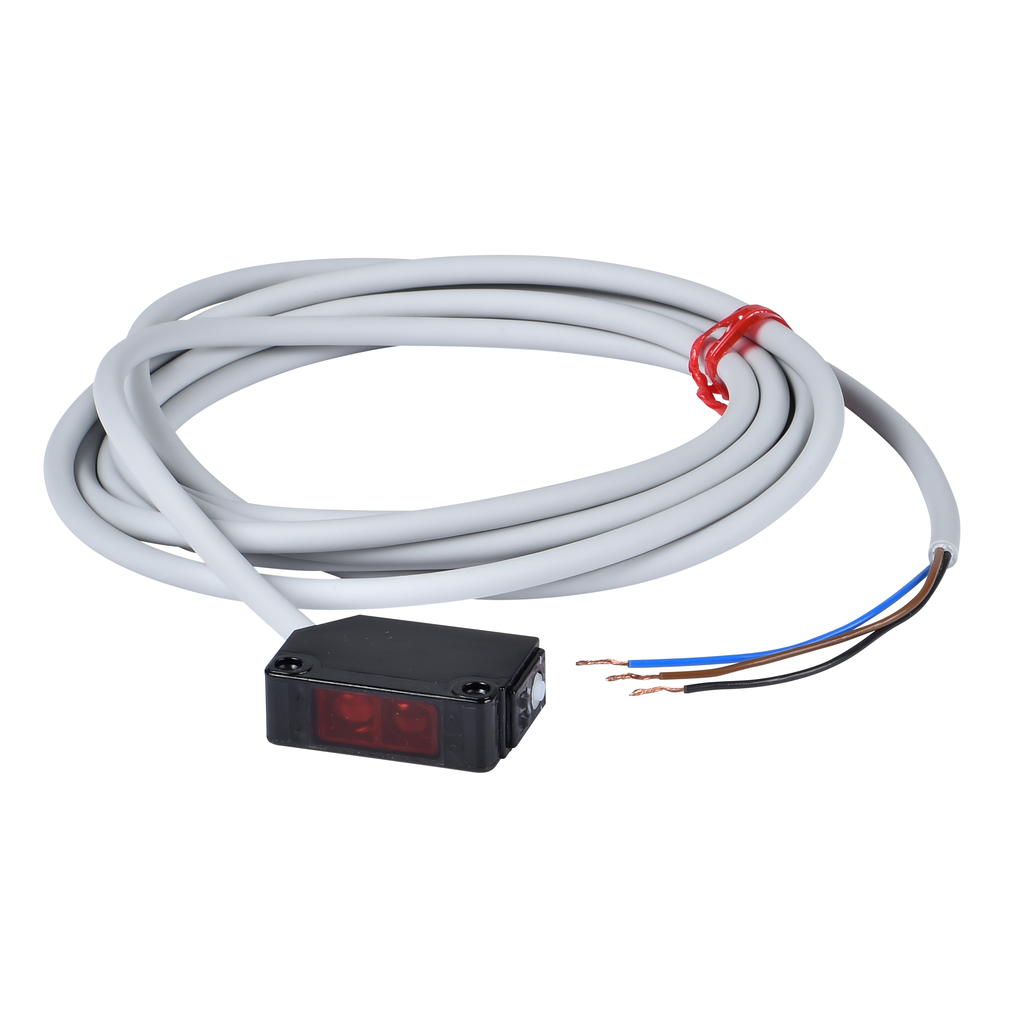

Product image for SQD XUM9APCNL2 PHOTOELECTRIC SENSOR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD XUM9APCNL2 PHOTOELECTRIC SENSOR

Manufacturer: Square-D / Schneider | Catalog # XUM9APCNL2 | Cooper Electric Part # 596197
$67.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
This miniature design single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and alignment, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It is CSA and UL certified.

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
10 mA
Enclosure
IP67 CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Operating Cycles
<= 1000 HZ
Operating Temperature
-25-55 Adegrees C
Output
1 NO OR 1 NC PROGRAMMABLE,PNP,DISCRETE,SOLID STATE
Response Time
.5m s
Sensing Range
5-5 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M)
Size
11 MM,11 MM,20 MM,33 MM
TC Connection
CABLE
Type
GENERAL PURPOSE SINGLE MODE,MINIATURE,PHOTO-ELECTRIC SENSOR,POLARISED REFLEX
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Osisense
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
785901590118
GTiN
03389119034883
Product UPC
78590159011
Weight
0.14 lb

Dimensions

Cable Length
6.56 ft
Depth
0.79 Inch
Height
1.3 Inch
Length
0.43 Inch
Warranty Length
18 mth
Width
0.43 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CURus
Country of Origin
Thailand
