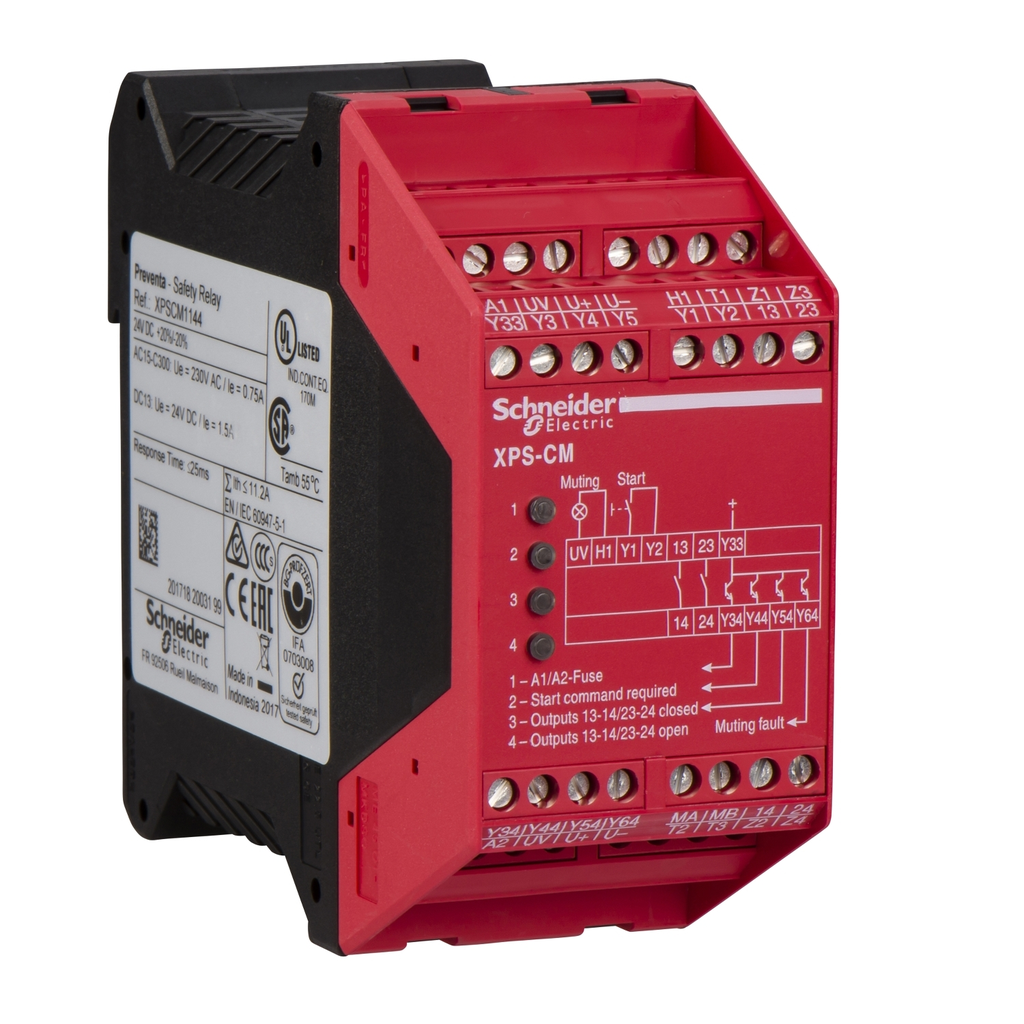

Square D XPSCM1144P 24 VDC 2NO 3-LED Display Safety Relay Module

Built-in muting;For monitoring of single beam photo-electric sensor

2 N.O. (INSTANANEOUS) 4 SOLID STATE

180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT,20 MA 24 V SOLID STATE OUTPUT-1.5 A 24 V DC-13)50 MS RELAY OUTPUT

200 mA muting function

24 V

5.6 A per relay;11 A maximum

15 W,200 MA,24 V DC - 20...20 ,U+, U- 24-24 V DC

-25-85 degrees C

CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID OR FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL

Safety module

Schneider Electric

PREVENTA

389110274137

03389110274134

78590175637

18 mth

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

France
