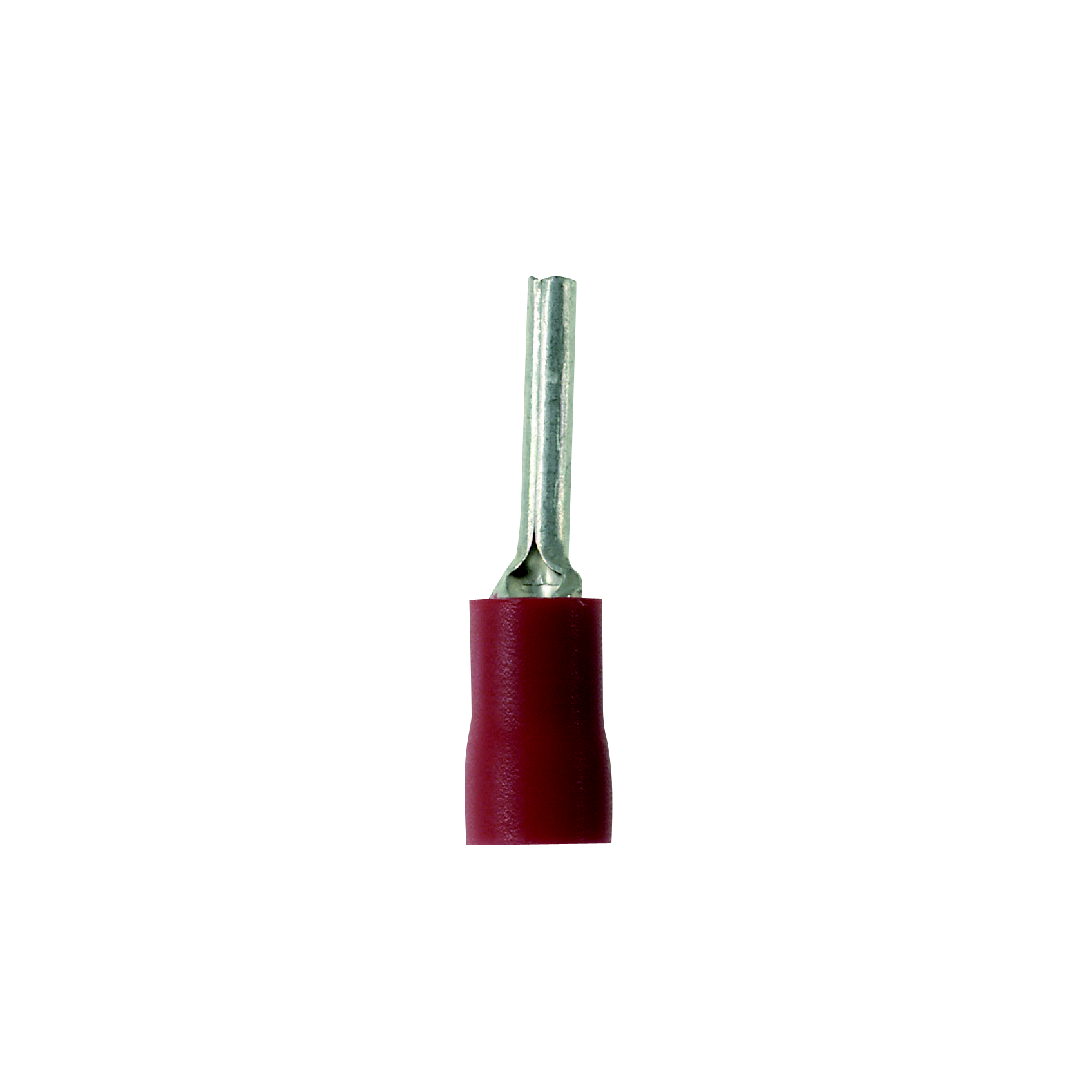

Panduit PV18-P47-E Pin Terminal, 22 ú 18 AWG, Vinyl Insulated, .49 Pin Length, Convenience Package.

Pin Terminal, Vinyl Insulated, 22 - 18 American Wire Gauge (AWG), 0.49 Pin Length, Convenience Package. Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection. Insulation support helps to prevent wire damage in bending applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. For use with pin-type terminal blocks. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL rated up to 600 Volts per UL 486A/B.
