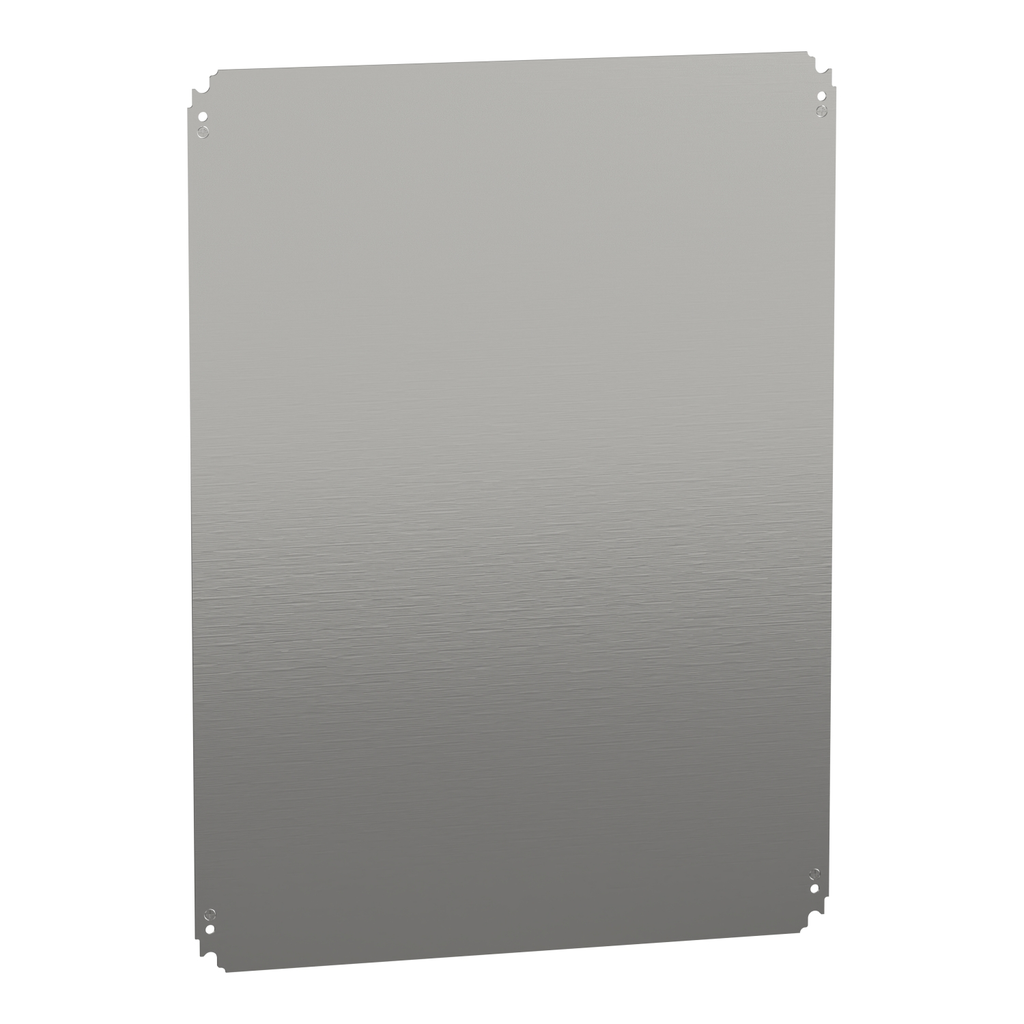

Square D NSYMM86 21.7 Inch x 29.5 Inch Plain Galvanized Steel Mounting Plate

Manufacturer: Square-D / Schneider | Catalog # NSYMM86 | Cooper Electric Part # 591682
$74.82 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens friday 7:00am et
10 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Spec Sheet Product Brochure CAD Drawing #3
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is800 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. Set of 1. Variant particularity is with enclosures H800 x W1200.

Technical Information

Applications
MOUNTING ACCESSORY
Material
Steel
Net Weight
8.07 kg
Range
Spacial
Size
0.10 in
Type
Mounting accessory;Mounting plate

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL S57

General Product Info

12-Digit UPC
360648018349
Construction
PLAIN GALVANIZED
GTiN
03606480183430
Product UPC
78590164719
Weight
8.07 kg

Dimensions

Depth
125 mm
Height
29.53 in
Thickness
2.5 mm
Warranty Length
18 mth
Width
21 13/20 in

Certifications and Compliance

Country of Origin
USA
Features
  • Reliable and sturdy design.
  • Smooth surface for easy mounting.
  • Fast setup.
  • Ideal for industrial applications.
