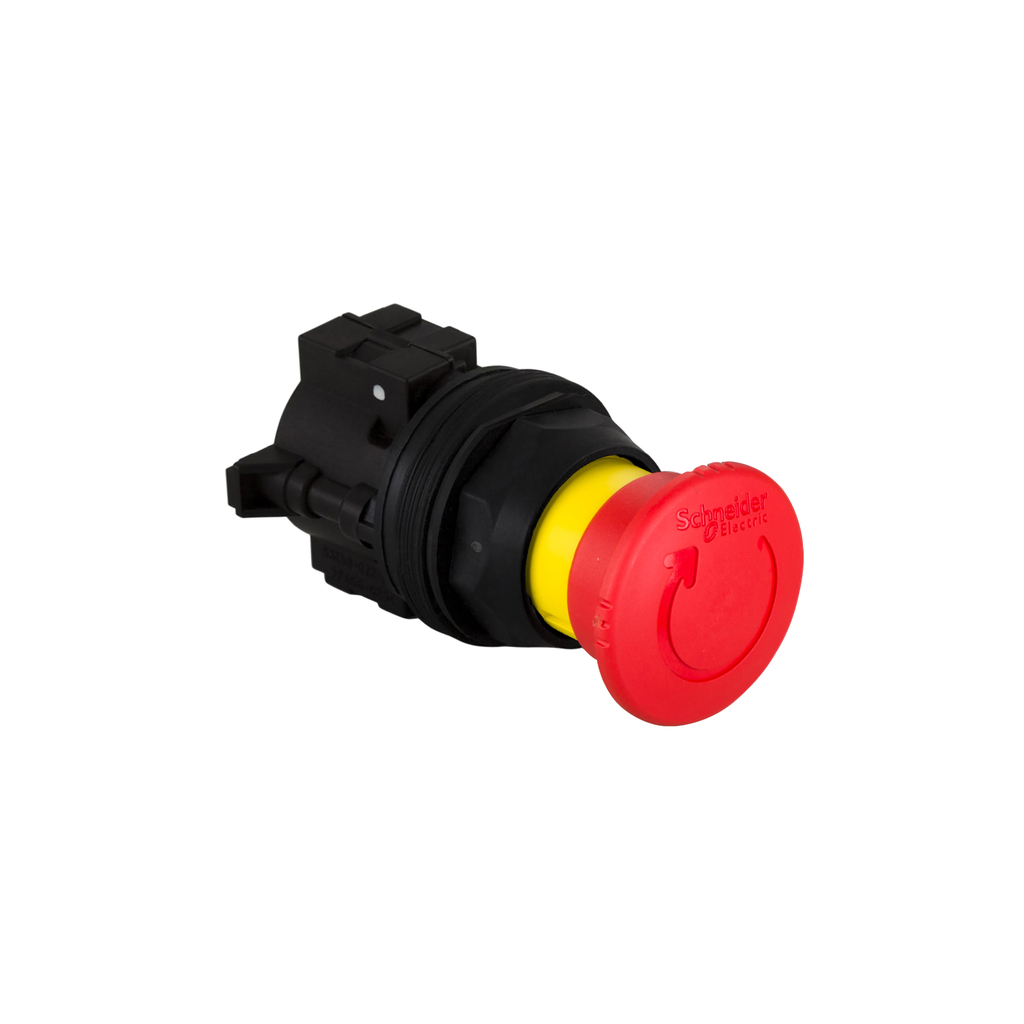

SQD 9001SKR16 Emergency stop head,

Manufacturer: Square-D / Schneider | Catalog # 9001SKR16 | Cooper Electric Part # 591277
$124.58 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30mm diameter cut-outs It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)

Technical Information

Action
TURN TO RELEASE-MAINTAINED-TRIGGER ACTION
Actuator
RED MUSHROOM Ø 40 MM, CE,TURN TO RELEASE- TRIGGER ACTION- MAINTAINED
Bezel Material
Plastic
Contact Configuration
NO CONTACT BLOCKS
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X
Net Weight
0.141 kg
Operating Temperature
-25-70 Adegrees C
Size
30 mm
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C 4520,JIS C 852,UL 60947-5-5
Storage Temperature
-40-70 degrees C
Type
Complete emergency stop push-button
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901582021
Color
Red
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389118372559
Product UPC
78590158202
Weight
0.141 kg

Dimensions

Height
40 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR25490 Class 3211 03,NEMA,UL 508,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Type Of Operator
  • turn to release
  • trigger action
  • maintained
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR16_CAD&p_File_name=9001SKR16_3D.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR16_CAD&p_File_name=9001SKR16_2D Front View.dwg
  • https://download.schneider-electric.com/f
IP Degree Of Protection
  • IP66 IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards
  • CSA C22.2 No 14
  • EN/IEC 60947-5-1
  • EN/IEC 60947-1
  • EN/IEC 60947-5-4
  • EN/IEC 60947-5-5
  • JIS C 4520
  • JIS C 852
  • UL 60947-5-5
Electrical Shock Protection Class
  • class II conforming to IEC 61140
Nema Degree Of Protection
  • NEMA 1
  • NEMA 12
  • NEMA 13
  • NEMA 2
  • NEMA 3
  • NEMA 3R
  • NEMA 4
  • NEMA 4X
Vibration Resistance
  • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operator Profile
  • red mushroom Ø 40 mm, CE
Shock Resistance
  • 50 gn IEC 60068-2-27
