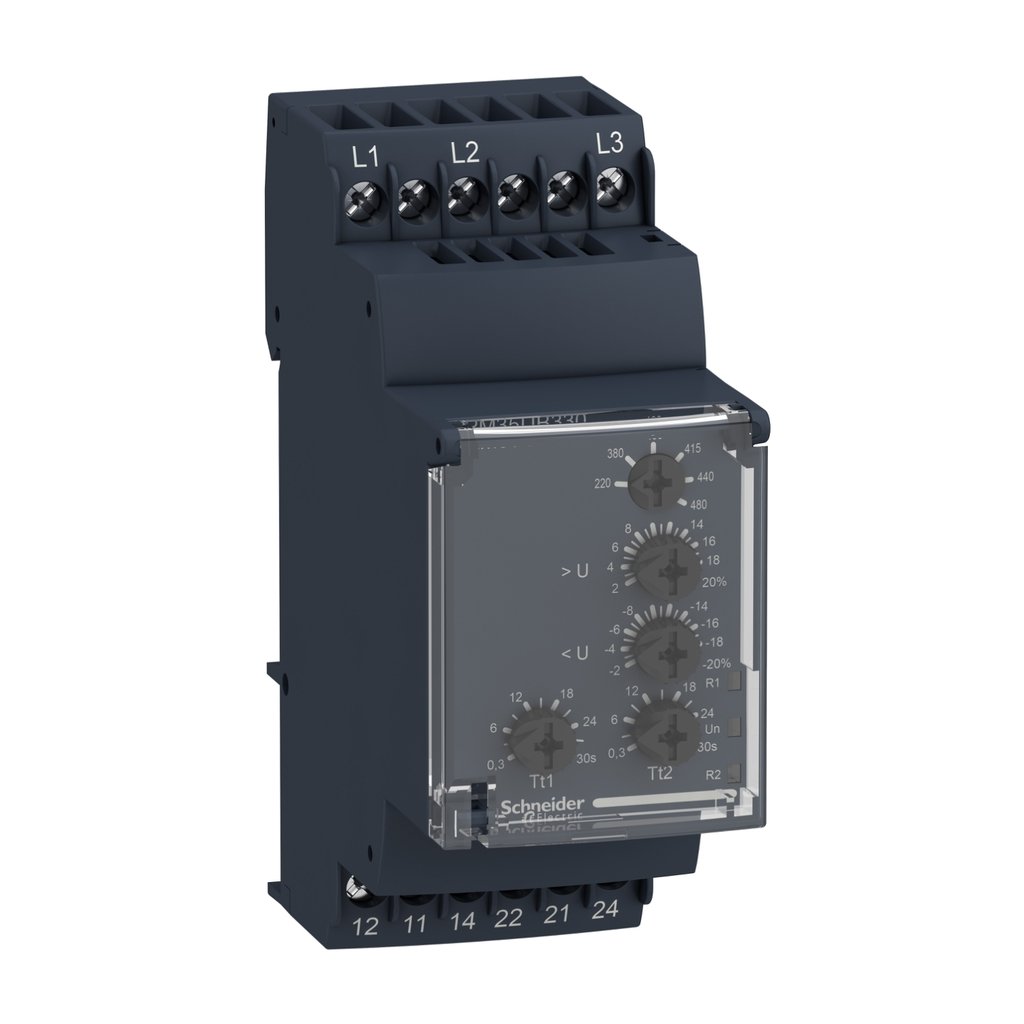

Square D RM35UB330 Voltage Control, 3 PHASE RELAY 250V 5AMP RM35

Manufacturer: Square-D / Schneider | Catalog # RM35UB330 | Cooper Electric Part # 590058

$271.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony RM35-UB allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
3/5 Amp
Applications
3-PHASE VOLTAGE CONTROL
Contact Configuration
SPDT (2), 1 PER THRESHOLD
Contact Rating
AC-12 - AC-13 - DC-14 - DC-12 - DC-13 - AC-14 - AC-15
Enclosure
IP20 (TERMINALS) CONFORMING TO IEC 60529IP30 (CASING) CONFORMING TO IEC 60529
Line Rated Current
5 A
Net Weight
0.08 kg
Operating Cycles
360
Operating Temperature
-20 TO 50
Response Time
< 200 ms (in the event of a fault)
Size
35 MM
Standard
IEC 60255-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 4 MMA AWG 20...AWG 11) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...2 X 2.5 MMA AWG 24...AWG 12) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
VOLTAGE MEASUREMENT RELAY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RM35UB3

General Product Info

12-Digit UPC
389119405327
GTiN
03389119405324
Housing Material
Plastic
Product UPC
78590153955
Weight
0.08 kg

Dimensions

Warranty Length
18 mth
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
