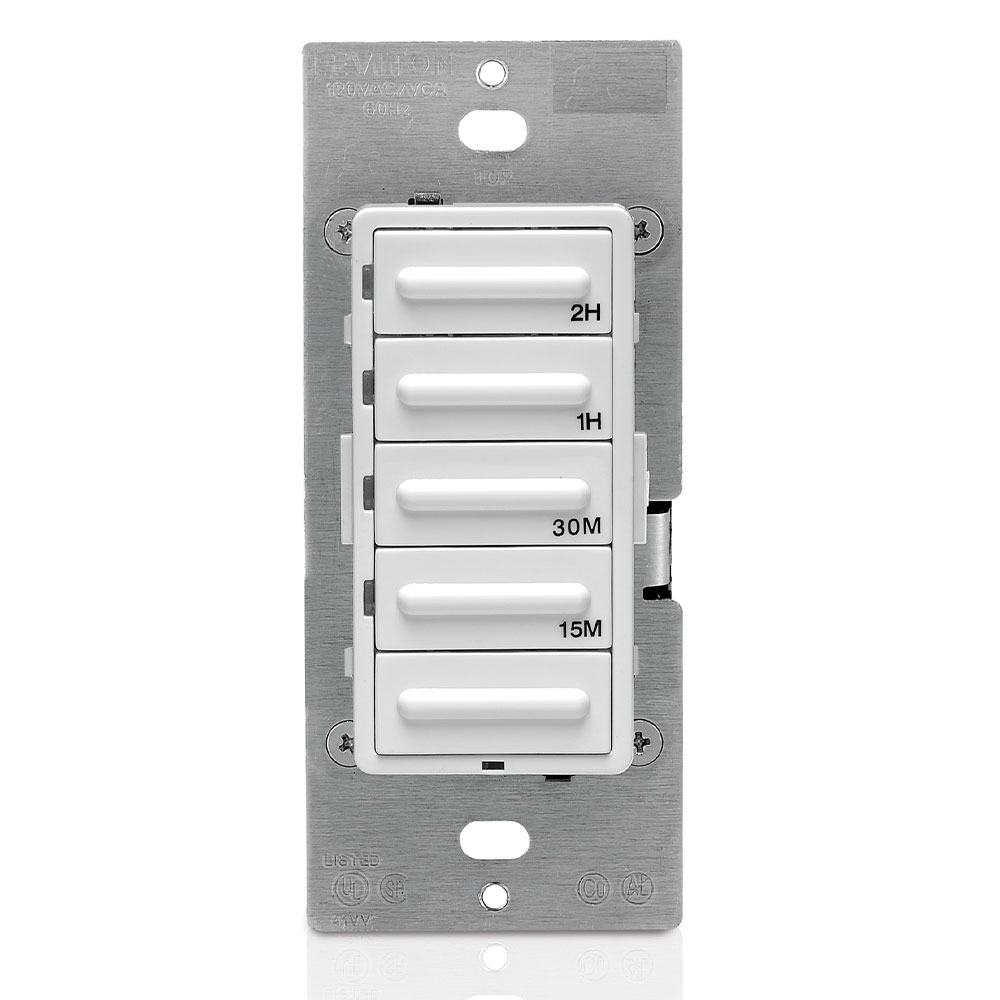

Product image for LEV LTB02-1LZ W/I/LA TIMER 5KEY 15/
Email

LEV LTB02-1LZ W/I/LA TIMER 5KEY 15/

Manufacturer: Leviton Mfg Co | Catalog # LTB02-1LZ | Cooper Electric Part # 588327
$59.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Decora Countdown Timer, 120VAC, 60Hz, 1800W Incandescent, 600W CFL, 5A LED, 20A Resistive/Inductive, 1HP, Single pole, 3-way or more locations. Has four preset buttons for 15 minutes, 30 minutes, 1 hour and 2 hour countdown timers. Neutral required - White, with Ivory and Light Almond color change kits included.

Technical Information

Action
SP
Amperage
20 Amp
Applications
For Commercial use
Base
Screw
Contact Rating
1800 W Incandescent, 600 W LED
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
0 To 40 degrees C
Size
4.13 H x 1.75 W x 1.40 D IN
Standard
UL Listed (E-328809), CSA Certified (MC-152105), NOM Certified, ASHRAE Standard 90.1
Temperature Rating
0 degrees C to 40 degrees C
Type
Electronic, 1-Pole, 3 Way with Remote
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477459164
Color
White/Ivory/Light Almond
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
60078477459166
Product UPC
07847745916

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Easy operation with four preset buttons and one \"OFF\" button
  • 1800 Watt Incandescent, 600W CFL, 5A LED, 20Amp Resistive/Inductive, 1 Horsepower at 120 volts
  • Simple press and hold override function
  • Flexibility to convert the 2-hour timer to other available timer intervals
  • Single pole and 3-way with a Vizia + Switch Remote (VP0SR)
  • Three colors in one box: White, Ivory and Light Almond
  • Soothing green LEDs
  • Neutral wire required for installation
