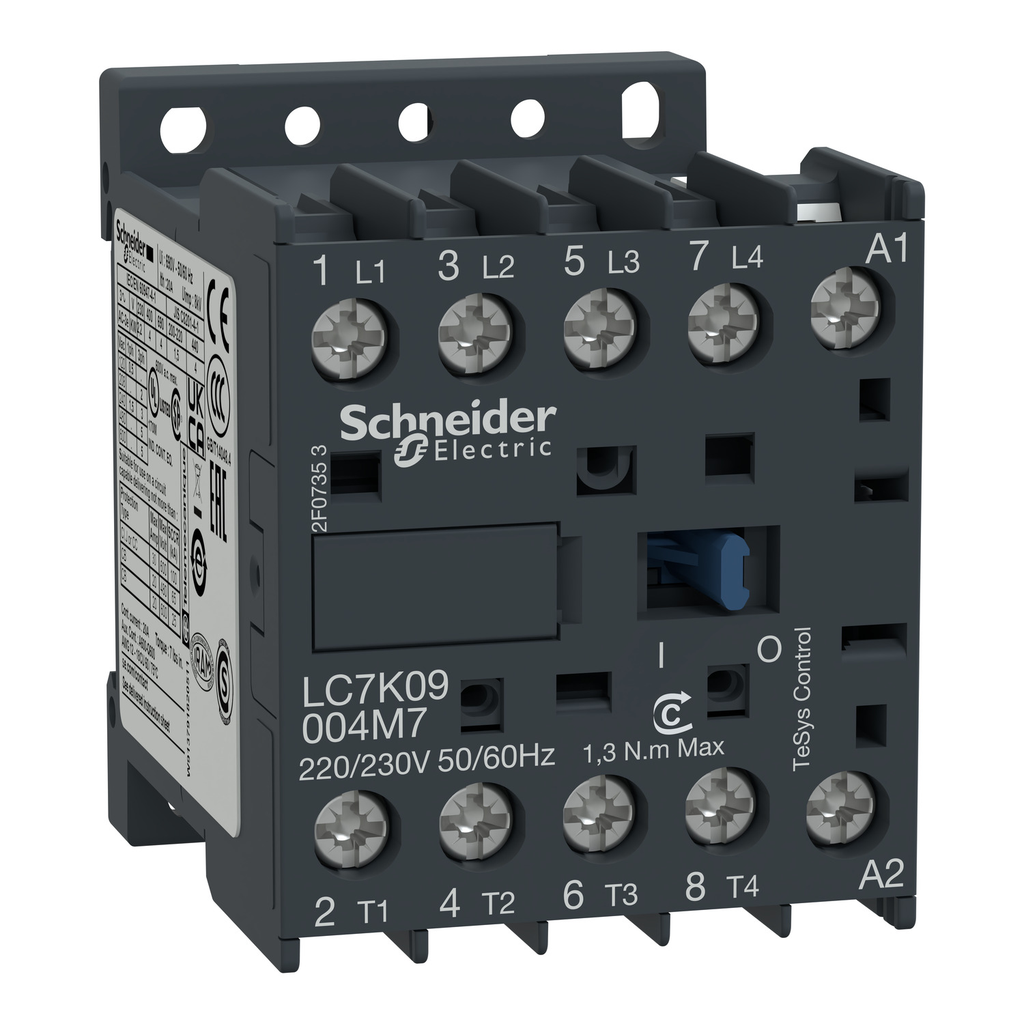

Square D LC7K09004M7 CONTACTOR 575VAC 9AMP IEC +OPTIONS

Manufacturer: Square-D / Schneider | Catalog # LC7K09004M7 | Cooper Electric Part # 588032
$130.68/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Contactor, TeSys K, 4P, 4 NO, AC-1, lt or eq to 440V 10A, 220 to 230VAC coil

Technical Information

Applications
RESISTIVE LOAD LC7K
Coil Voltage
220 to 230@50/60Hz V
Contact Configuration
4 NO
Contact Rating
20 A 50 AC POWER CIRCUIT
Impedance
3 MOhm - Ith 20 A 50 Hz For Power Circuit
Net Weight
0.225 kg
Operating Cycles
3600 cyc/h
Operating Temperature
-25-50 Adegrees C
Range
TeSys
Size
4P
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-4-1,GB/T 14048.4,JIS C8201-4-1,UL 60947-4-1
Storage Temperature
-50-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMAFLEXIBLE WITH CABLE END
Type
Contactor
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS TESYS K

General Product Info

12-Digit UPC
389110492692
GTiN
03389110492699
Product UPC
78590183918
Weight
0.225 kg

Dimensions

Depth
57 mm
Height
58 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB Scheme,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LA1KN22
  • LA1KN11
  • LA1KN40
  • LA1KN31
  • LA1KN20
  • LA1KN04
  • LA1KN02
  • LA1KN13
  • LA9D90
  • LA2KT2E
  • LA2KT2U
