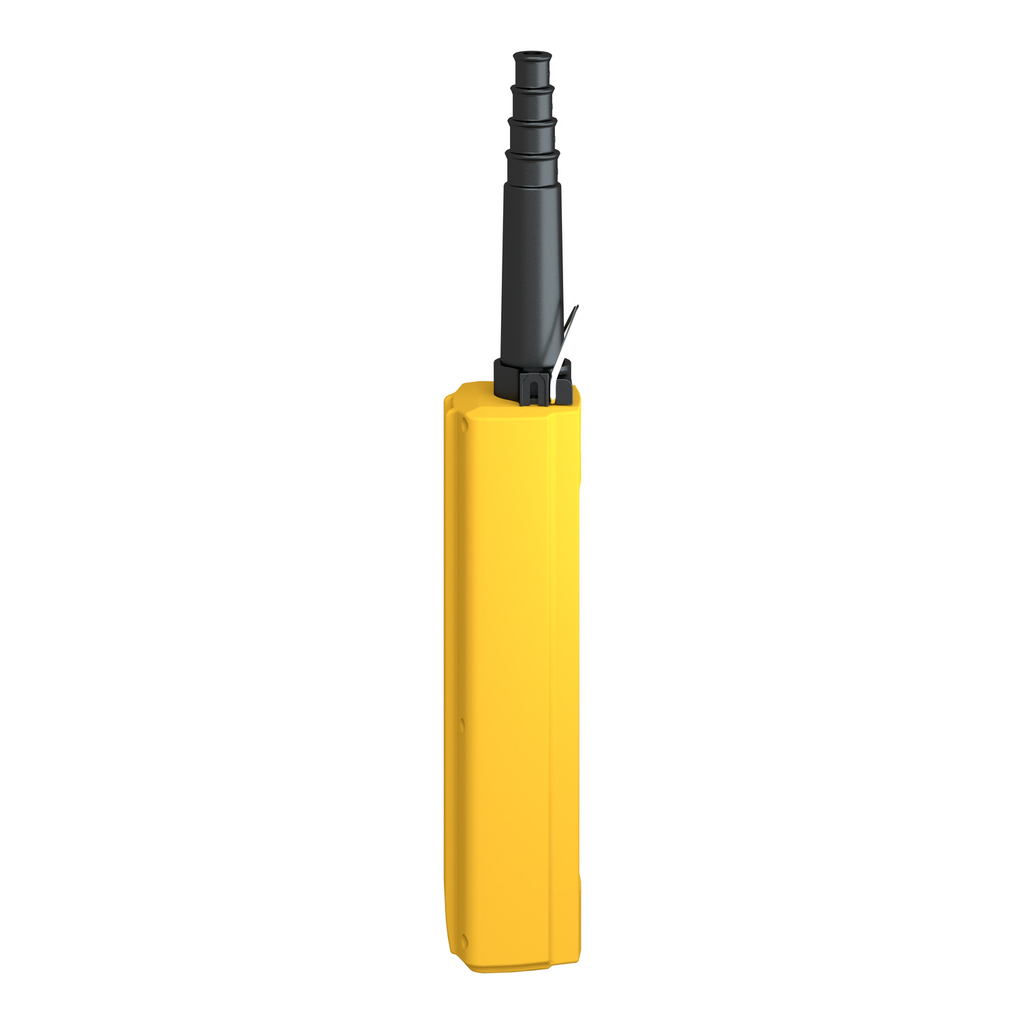

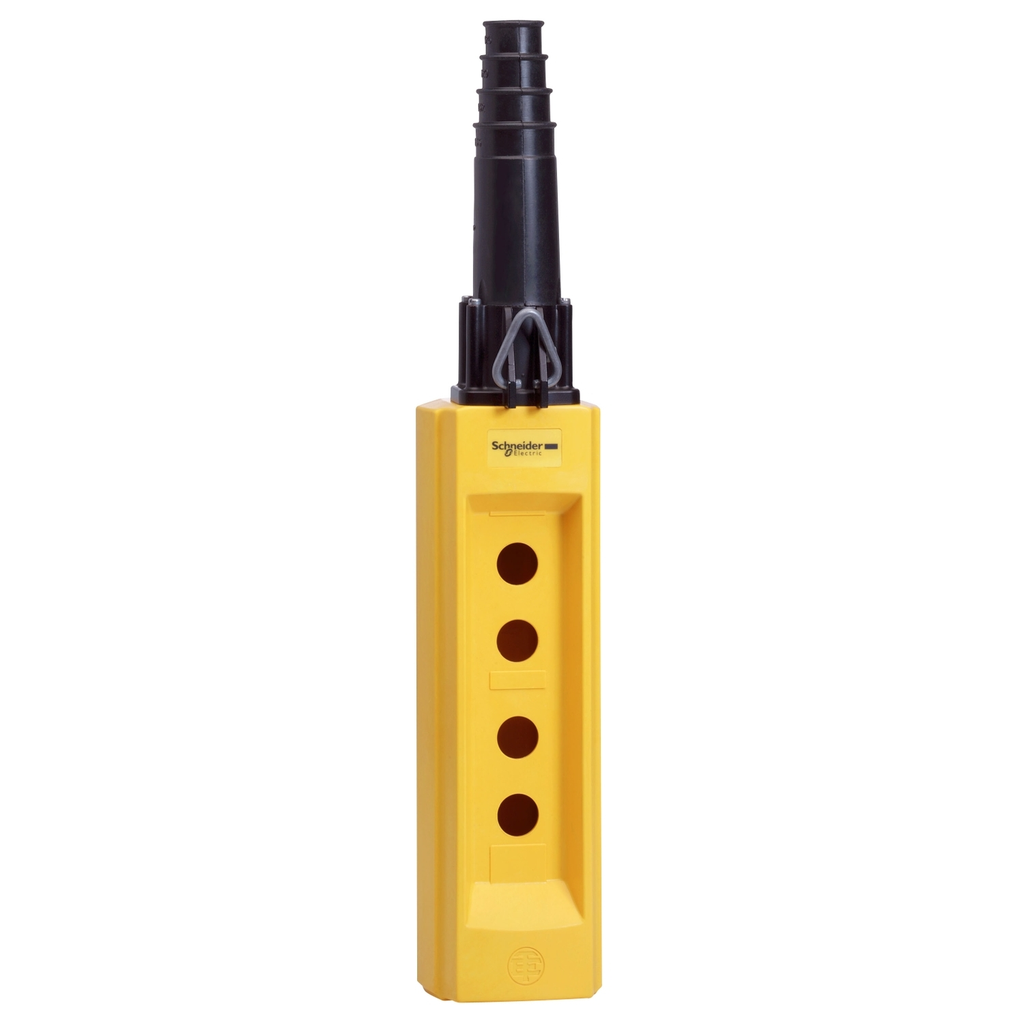

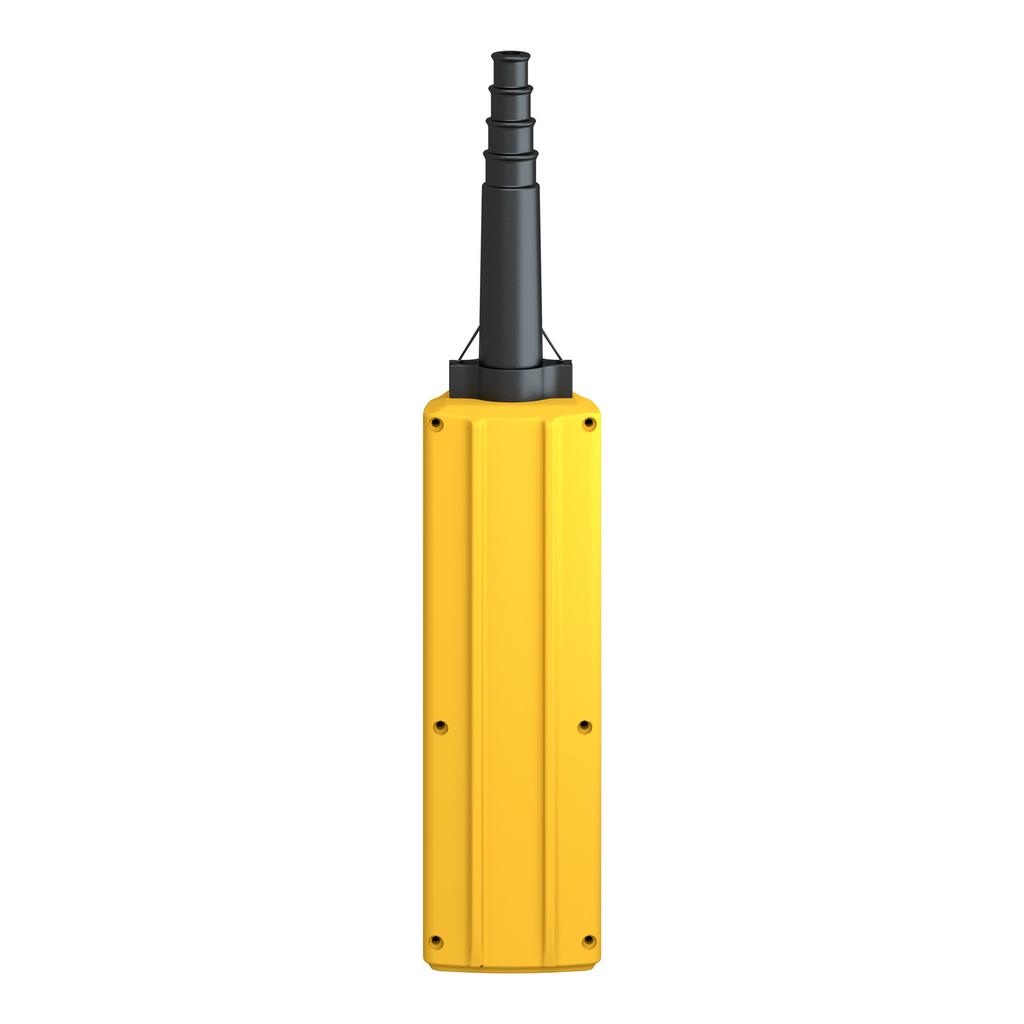

Square D XACB04 4-Button Yellow Glass Reinforced Polyester Pendant Control Station Enclosure

Manufacturer: Square-D / Schneider | Catalog # XACB04 | Cooper Electric Part # 587999
$360.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 4 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

Technical Information

Applications
Power circuit;Control circuit
Cable Entry
10-22 mm
Enclosure
Glass reinforced polyester
Enclosure Material
Polyester
Enclosure Type
Empty Enclosure
Material
Glass
Net Weight
1 kg
Operating Temperature
-13158 degrees F (-2570 degrees C)
Size
4 CUT-OUTS
Standard
CSA C22.2 No 14,IEC 60947-5-1
Storage Temperature
-40-70 degrees C
Type
Double insulated;Pendant control station

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XACB

General Product Info

12-Digit UPC
389110640505
Color
Yellow
GTiN
03389110640502
Product UPC
78590128933
Weight
1 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA Type 4
Country of Origin
Czechia
Features
  • Highly robust pendant control station
  • Double insulated polypropylene casing
  • Screw clamp terminal connections
  • Simple and intuitive
  • Designed for mechanical handling
  • Very comfortable for the operator to use
  • Mechanical durability of 1 million cycles
  • IP65 and IK08 degree of protection
  • Wide range of operating temperature from -25°C to 70°C
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
