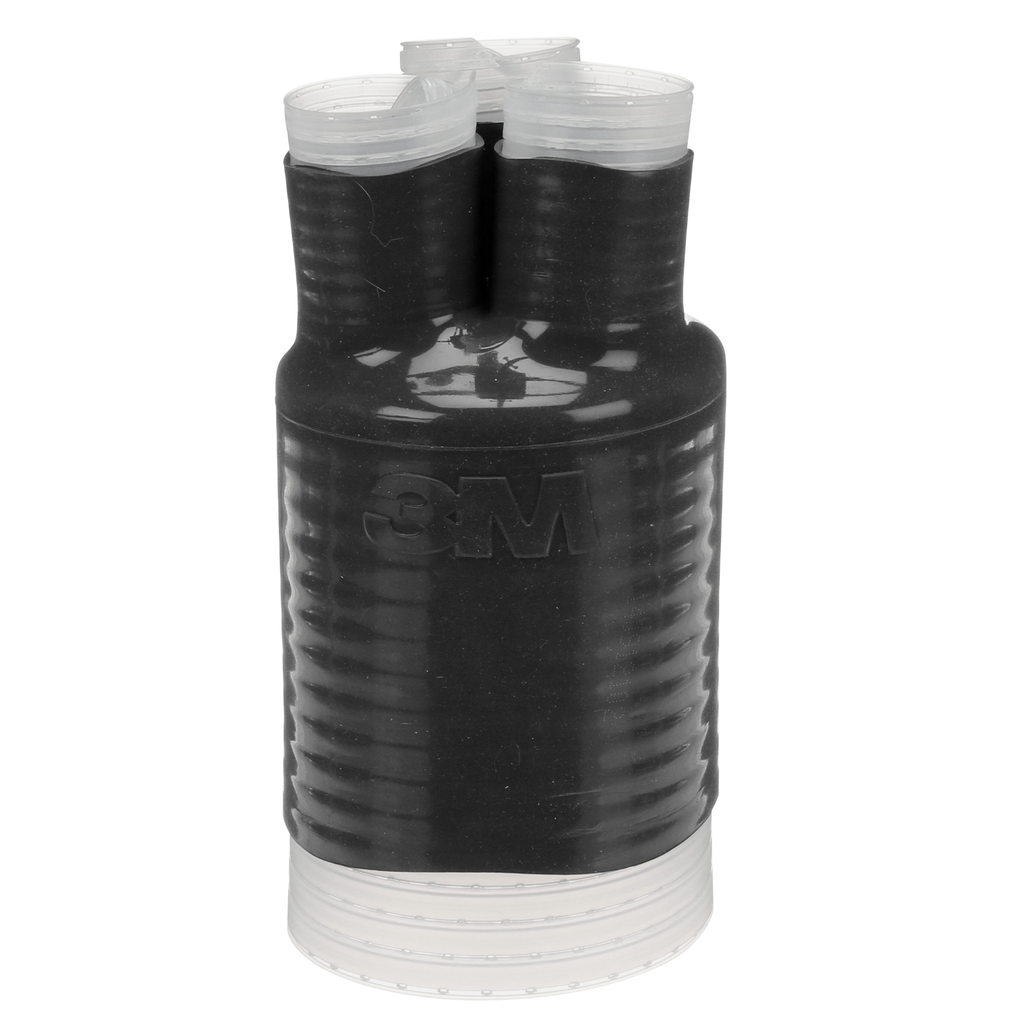

Product image for 3M 8563 Breakout Boot
Email

3M 8563 Breakout Boot

Manufacturer: 3M | Catalog # 7000058514 | Cooper Electric Part # 586629
$368.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Cold Shrink Silicone Rubber 3/C Cable Breakout Boot 8563 has a 0.82-1.18 in (20.8-30.0 mm) phase shield range and a 1.92-3.10 in (48.8-78.7 mm) outer jacket range. It is an open-ended molded rubber sealing assembly that has been factory expanded and mounted on a removable plastic core.

Technical Information

Applications
Sealing Of The Spine Cutting Stranded Cable
Material
Silicone
Operating Temperature
180 degrees C
Temperature Rating
Up to 180 degrees C
Tensile Strength
1370 lb/in
Type
Boot
Voltage
35 KV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007431459
Color
Gray
GTiN
00054007431459
Product Type
Cable & Wire Accessory
Product UPC
05400743145

Dimensions

Length
5-3/4 Inch

Certifications and Compliance

Country of Origin
China
Features
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • High dry- and wet-insulation resistance
  • Creates an environmental enclosure for individual cable phases
  • Has an outer jacket diameter range of 1.3 to 1.94 inches
  • 3-way outlet
  • Dark gray silicone rubber construction
