Caddy CRLB37EG Caddy Rod Lock Beam Clamp, 3/8" Rod, 0.125"-0.375" Flange

Manufacturer: Erico, Inc | Catalog # CRLB37EG | Cooper Electric Part # 586350
$1,259.15/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
nVent CADDY Rod Lock Beam Clamp, 3/8" Rod, 0.125".0.375" Flange

Technical Information

Applications
Pumps, Fans, Heaters, HVAC, Lighting, Machinery, Commercial, Industrial, Agricultural
Capacity
4 in
Jaw Opening
1/8 - 3/8 in
Load Capacity
250/500 lb
Material
Iron
Standard
CULus®
Type
Box Between Stud

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856649434
Finish
Electro Galvanized
GTiN
00782856649434
Product UPC
78285664943
Weight
0.19 kg

Dimensions

Height
30-30
Length
52.3-52.3
Width
1-1
Features
  • Prefabricated assemblies easily lift and lock into place, helping to save time and money

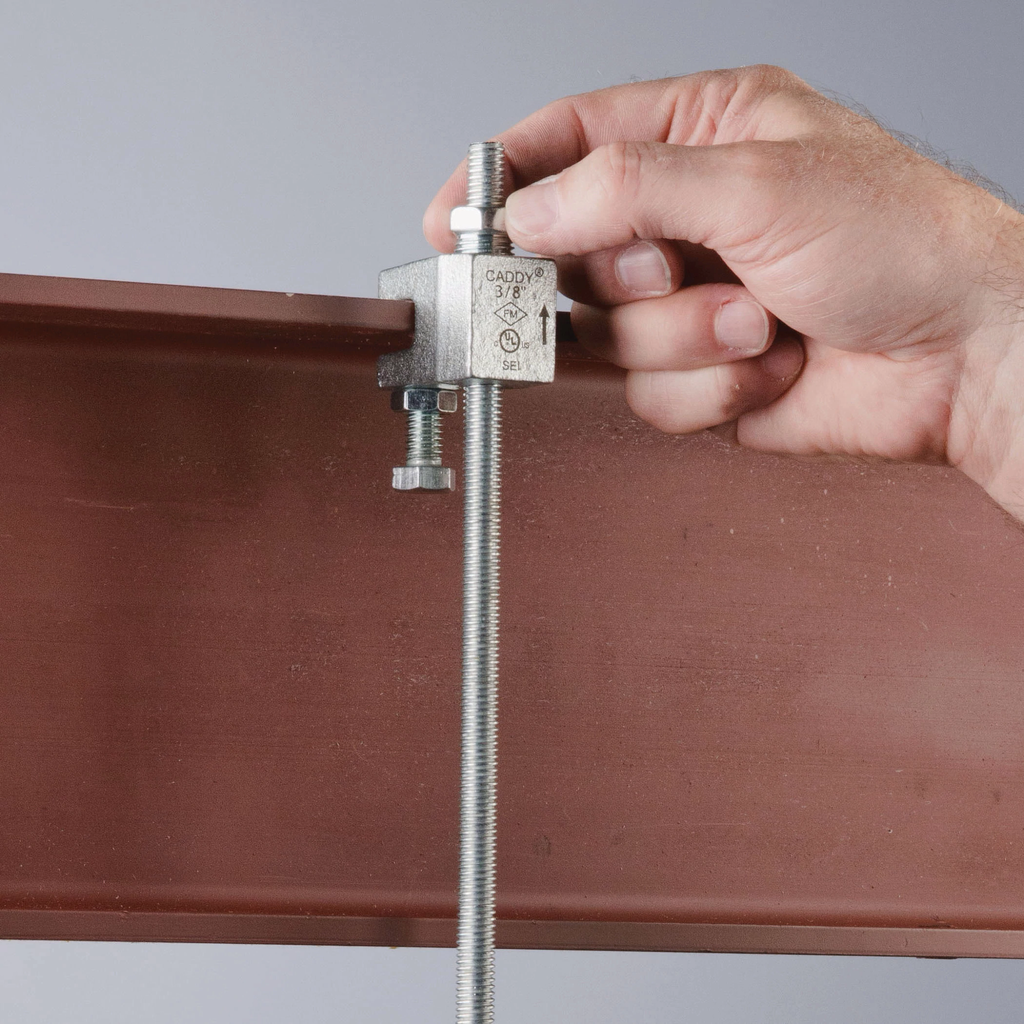

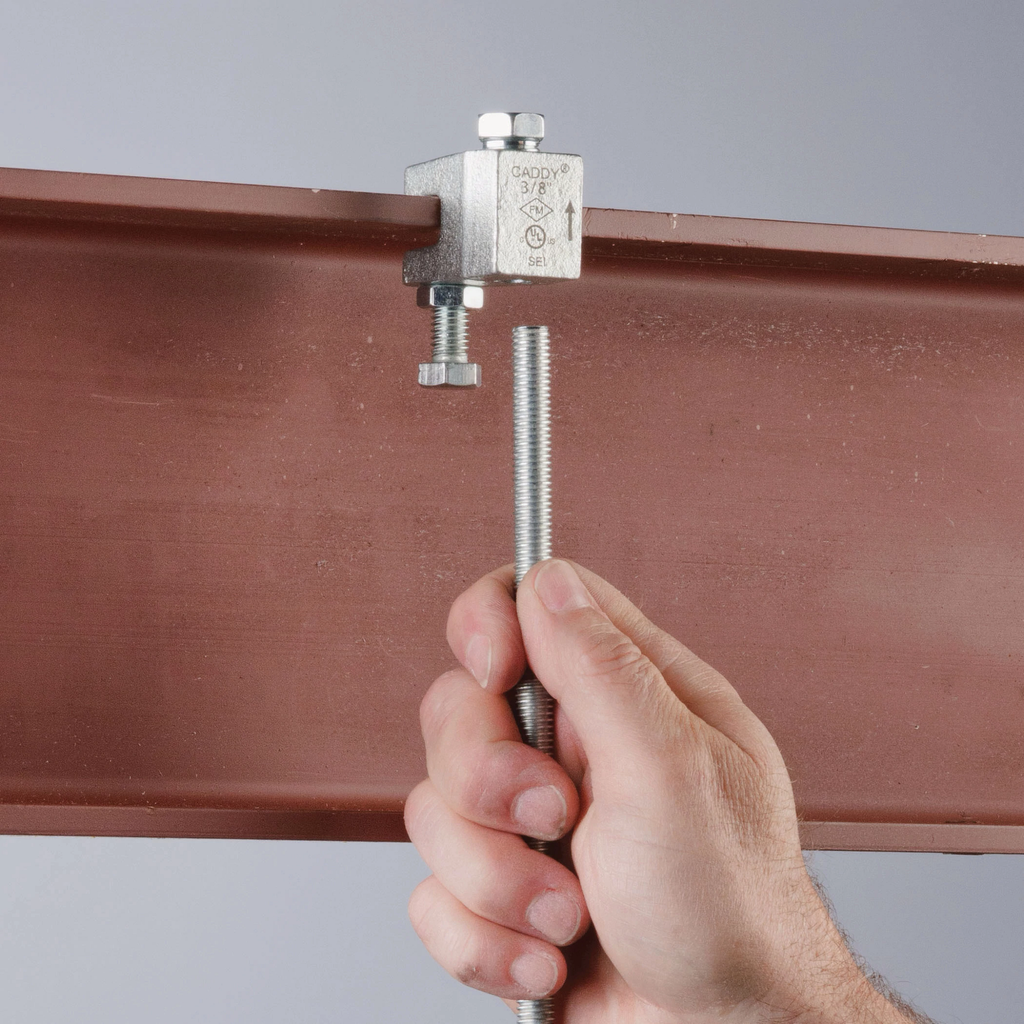

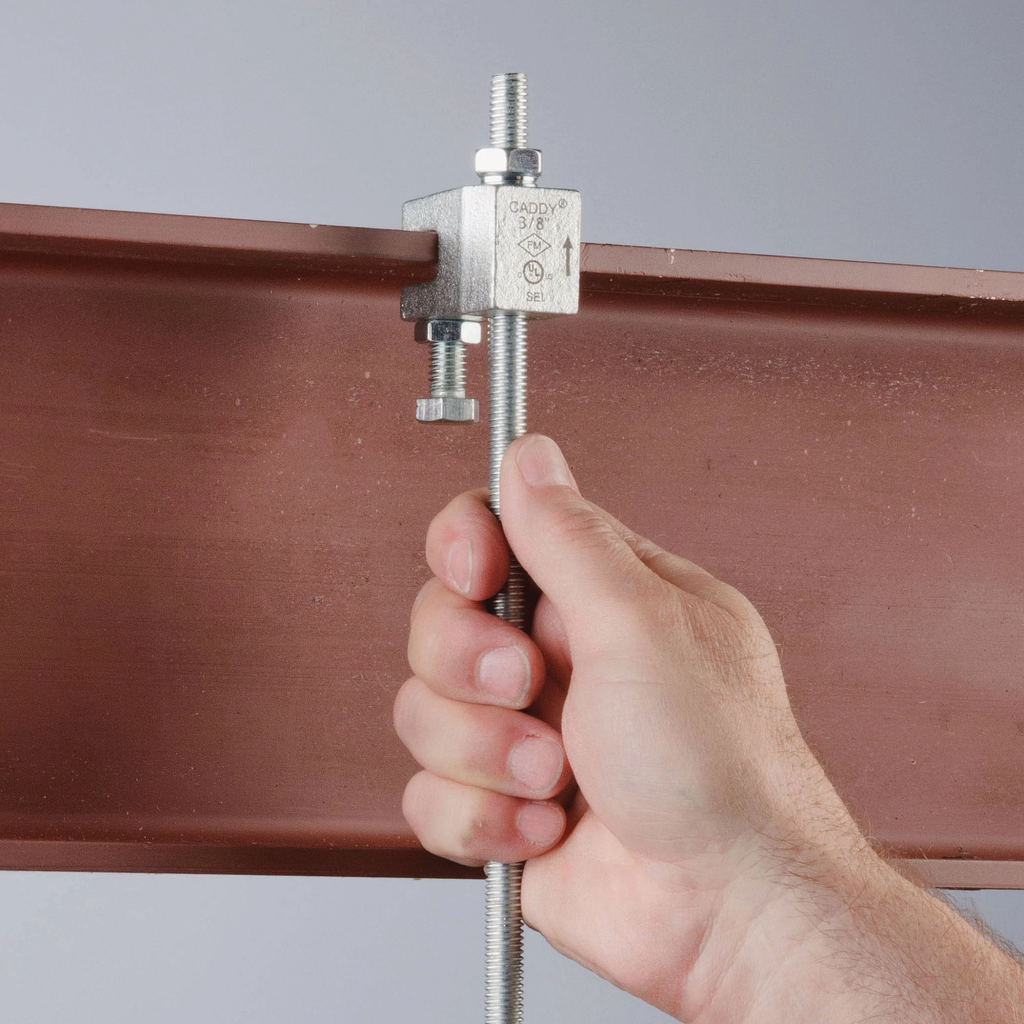

  • Easy \"push-to-install\" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position

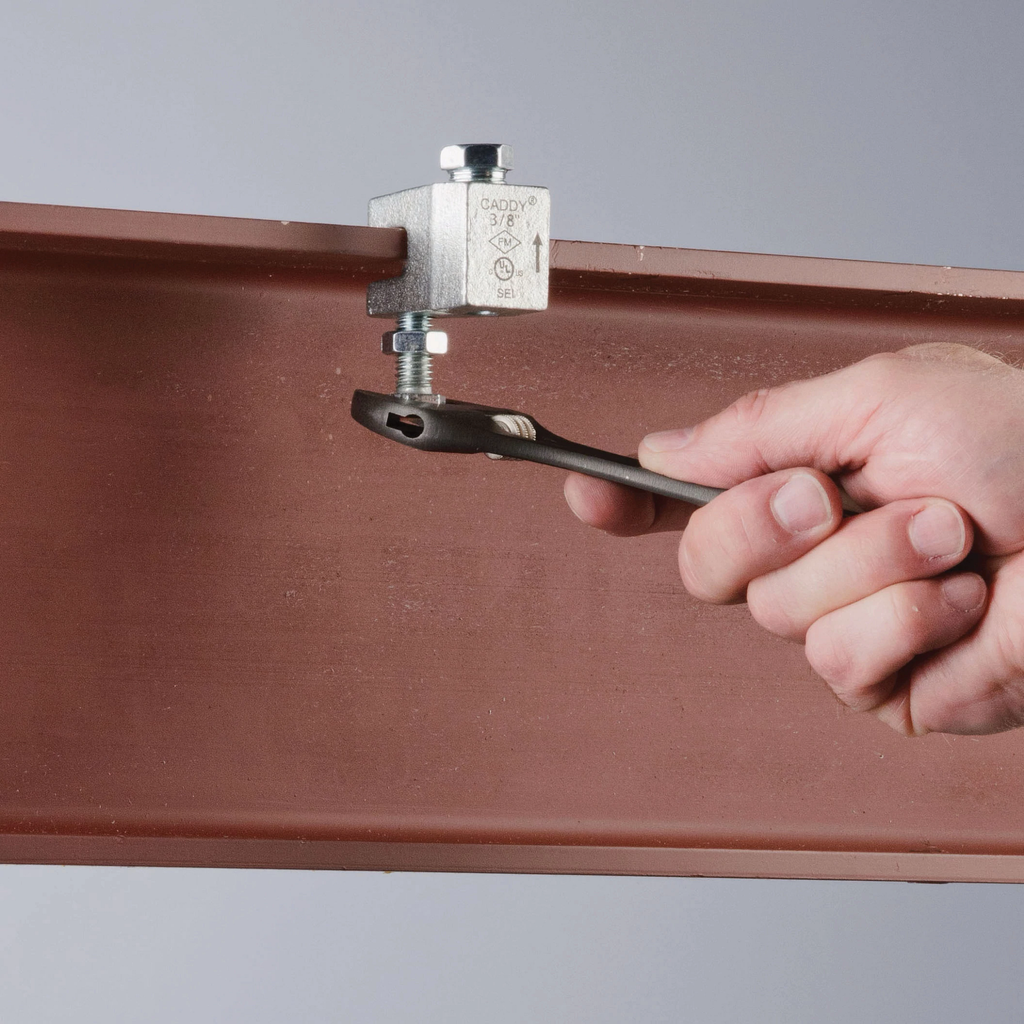

  • Lock nut can be finger tightened, locking the rod in place
  • Works with slightly damaged threads and minor burrs on the threaded rod
  • Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19 and 23)
Certifications
  • cUL ULC/ORD-C203
  • UL ANSI/UL 2239
  • cUL CAN/CSA C22.2 No. 18.4-04
  • UL ANSI/UL 203
